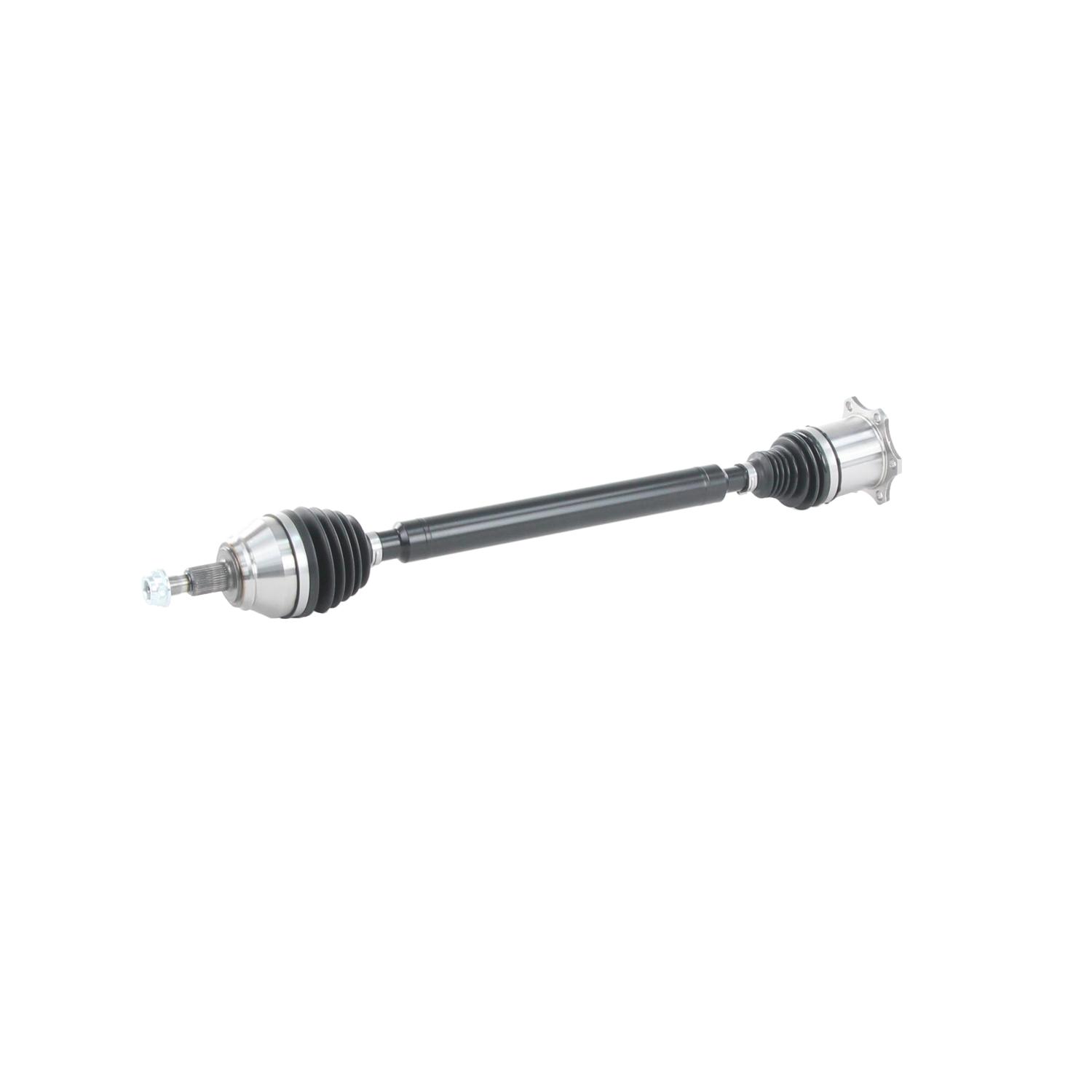

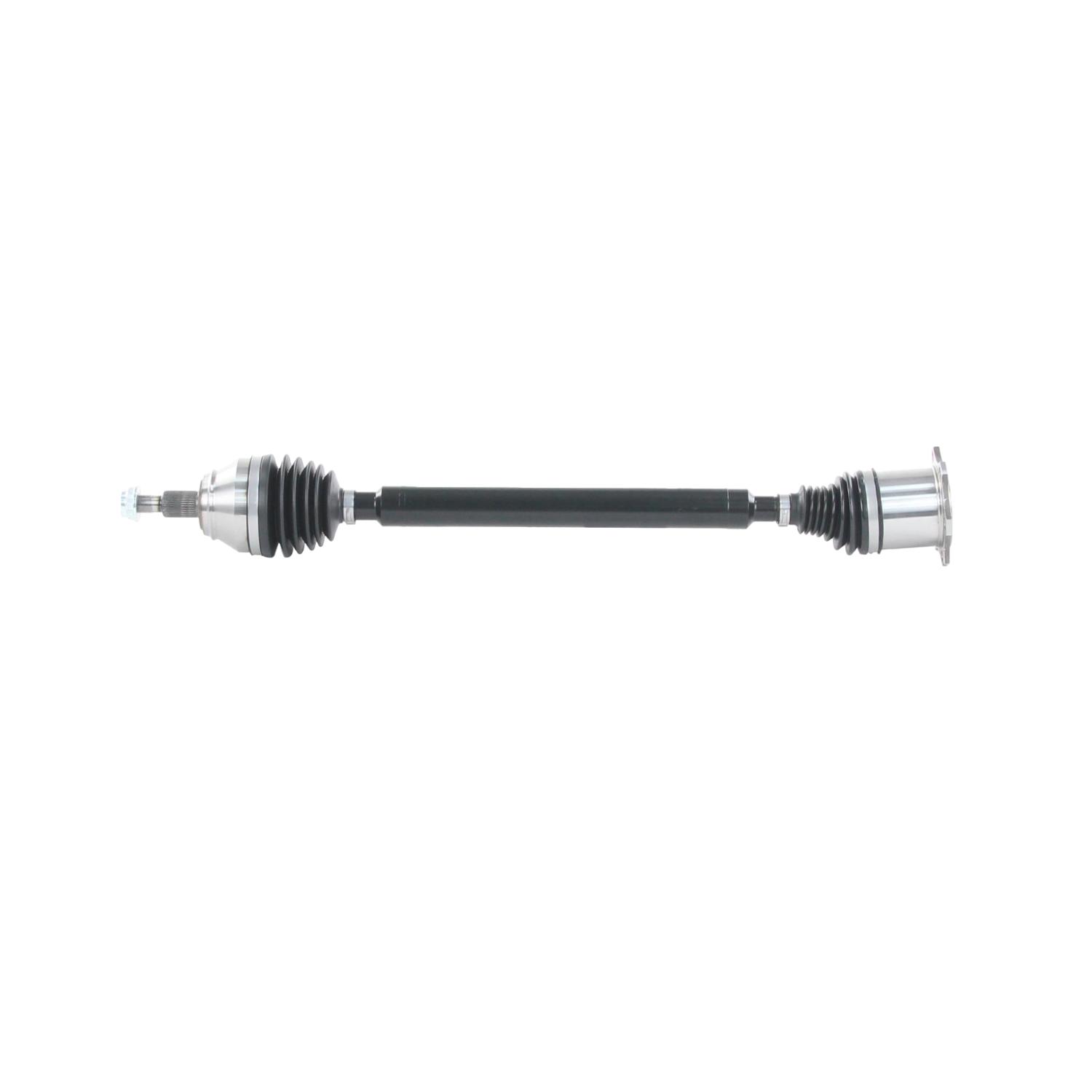

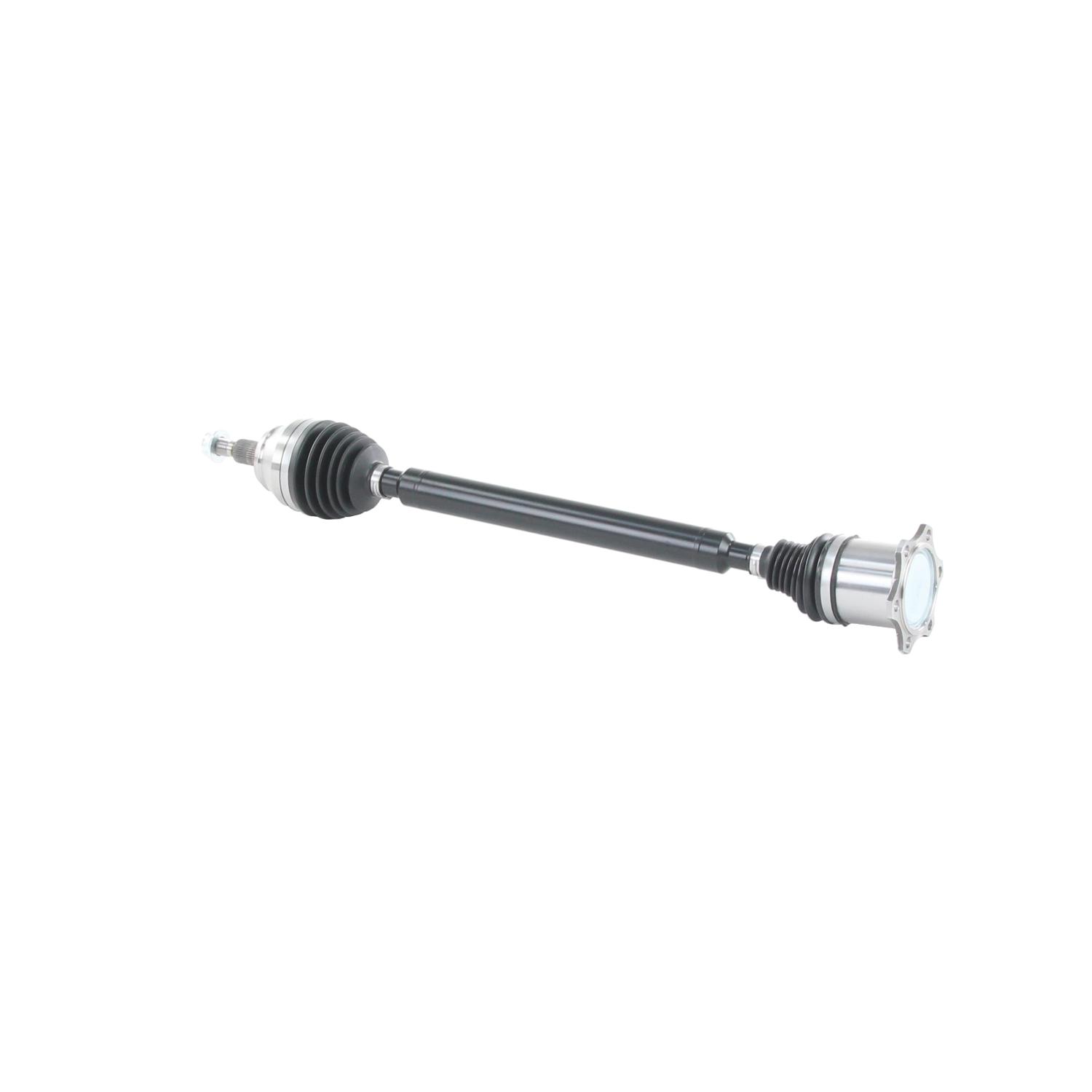

TrakMotive VW-86044 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	812
Overall Compressed Length (in)	31.94
Overall Extended Length (in)	34.19
Overall Extended Length (mm)	868
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Axle Nut Hex Size (mm)	34
Axle Nut Thread Size	M20X1.5
Axle Nut Height (mm)	17
Number Of Bolt Holes	0
Inboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	6
Grade Type	Premium
Axle Nut Socket Size	34
UPC	00840140512441
Origin Country:	CN
Weight:	17.32Lb. (7.87 kg.)
Package Dimensions:	39" x 5.1" x 5.1" (99 cm x 13 cm x 13 cm)

1 Year Warranty

TrakMotive VW-86044 CV Axle Shaft
