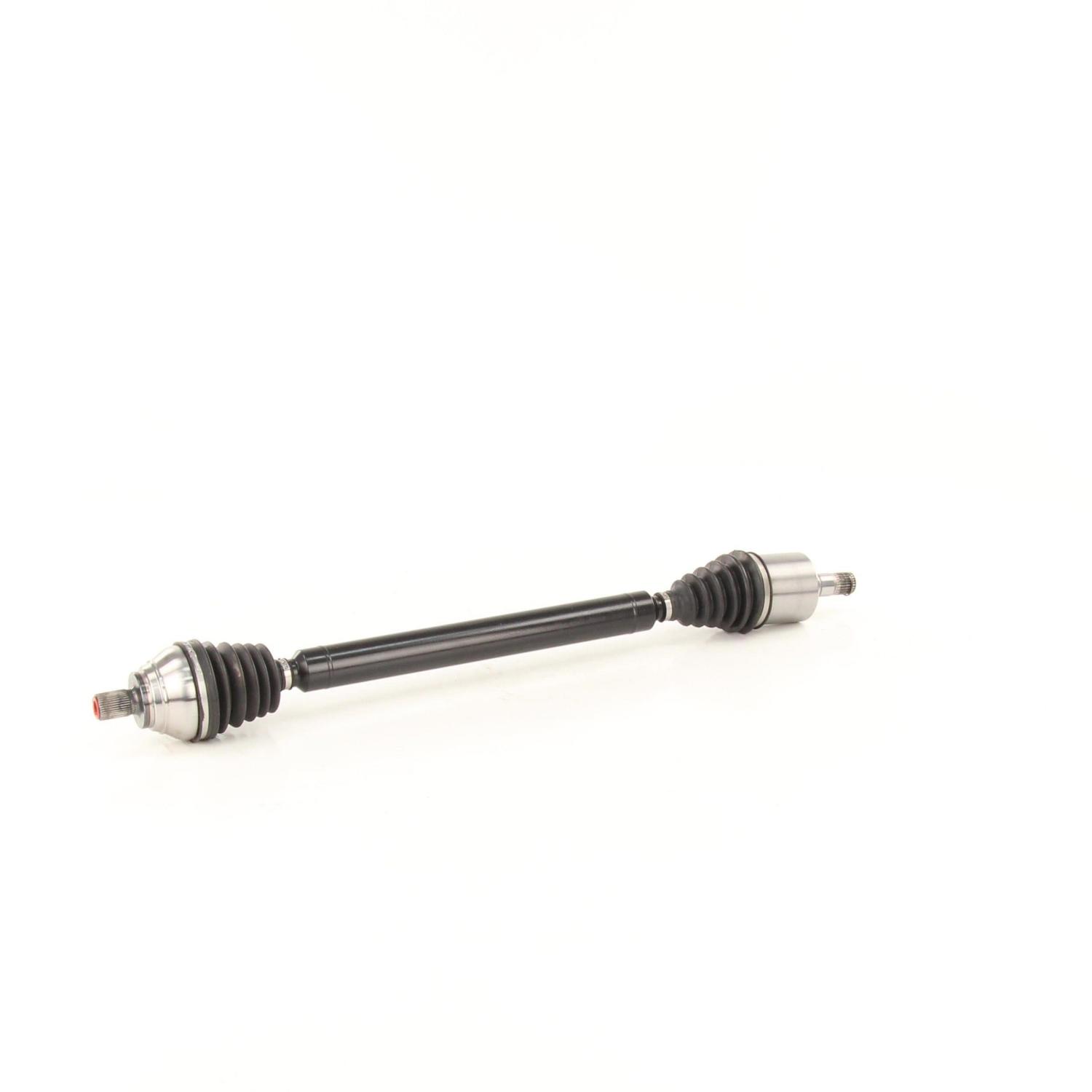

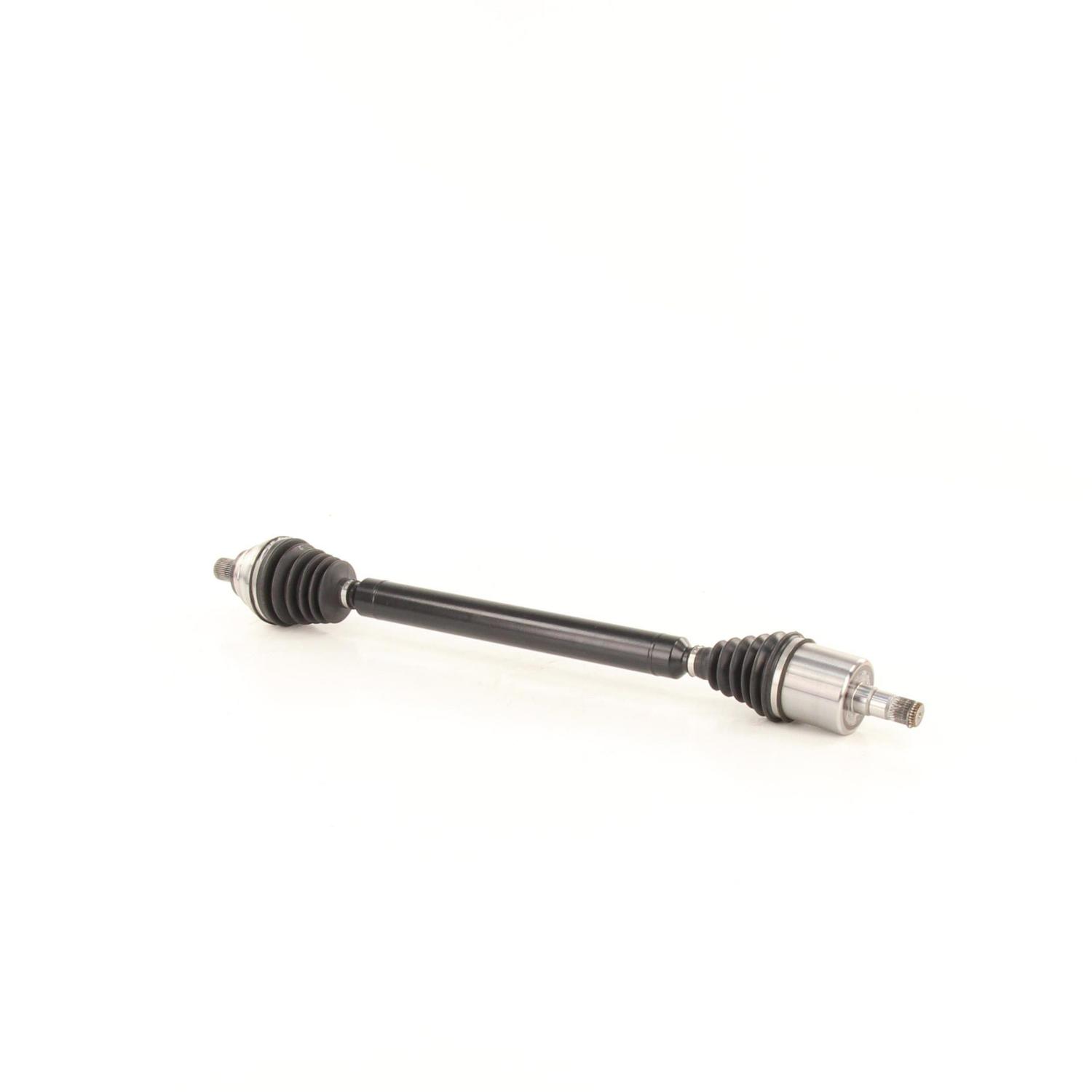

TrakMotive VW-8158 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

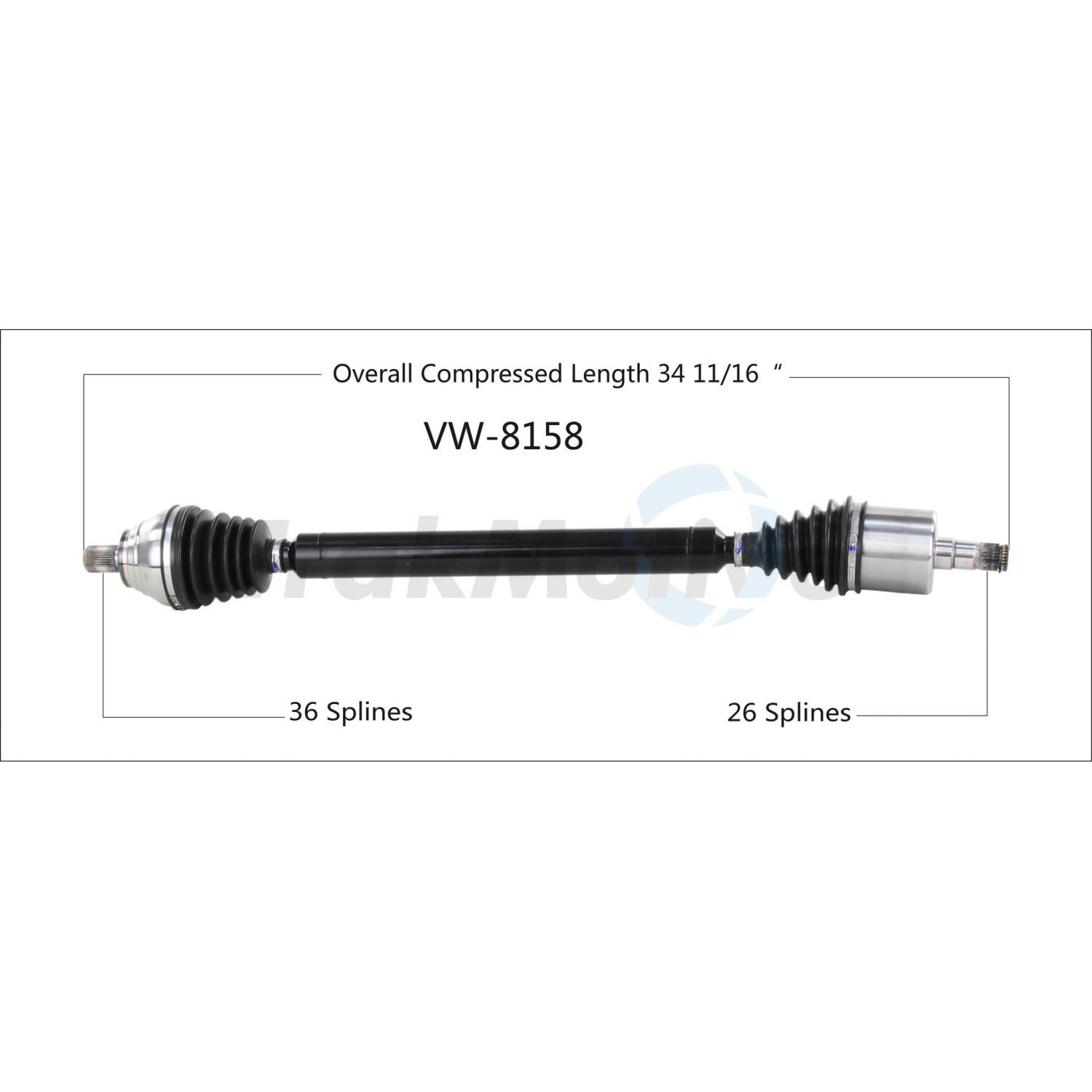

Overall Compressed Length (mm)	881
Overall Compressed Length (in)	34.69
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	26
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	97
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	27
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Male
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	00844084070715
Origin Country:	CN
Weight:	20.2Lb. (9.18 kg.)
Package Dimensions:	37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)

1 Year Warranty

TrakMotive VW-8158 CV Axle Shaft
