TrakMotive VW-8134 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	479
Overall Compressed Length (in)	18.86
Inboard Shaft Connection Style	Flange
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	90
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	17
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Flange
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	00844084027887
Origin Country:	CN
Weight:	14.83Lb. (6.74 kg.)
Package Dimensions:	24" x 5.1" x 5.1" (61 cm x 13 cm x 13 cm)

1 Year Warranty

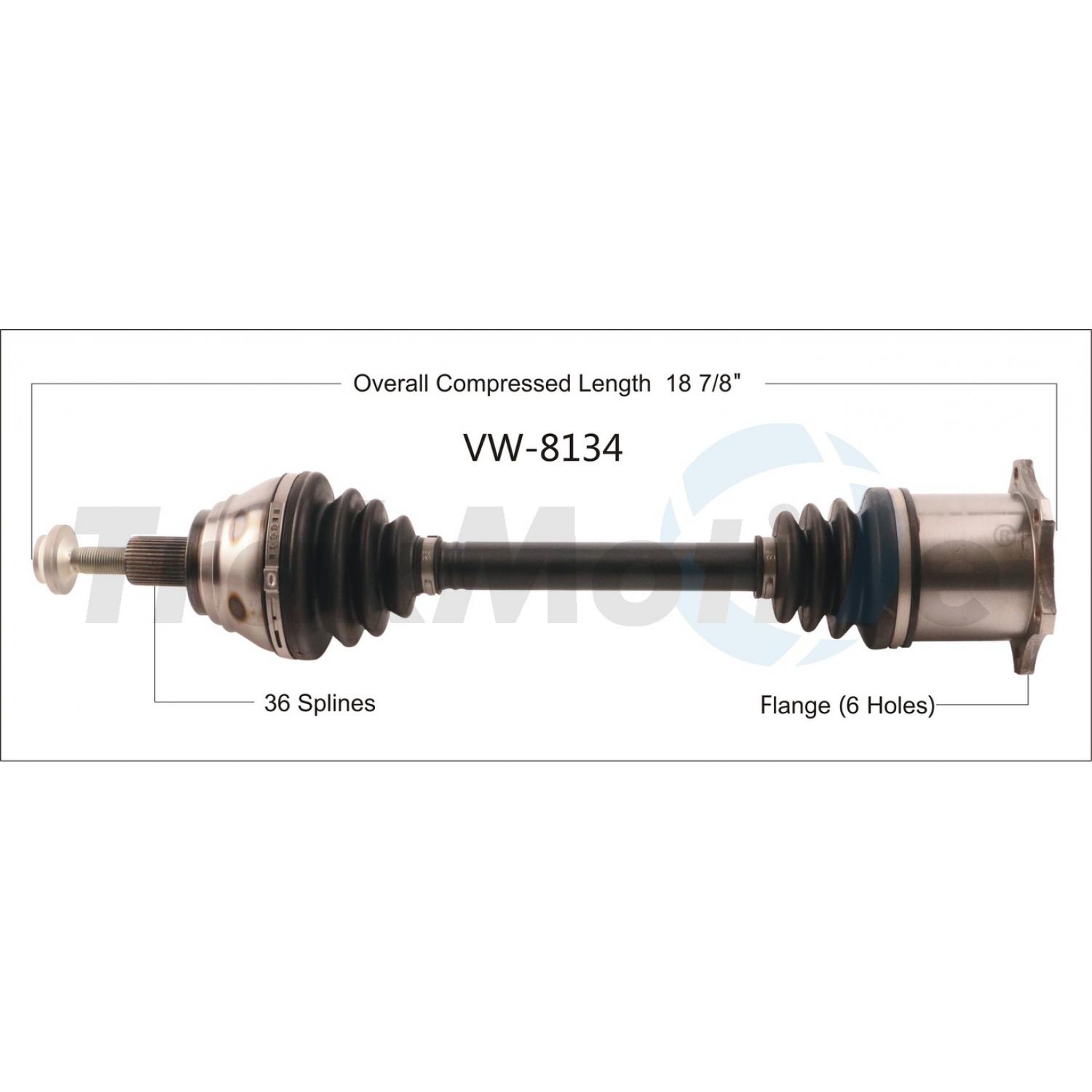

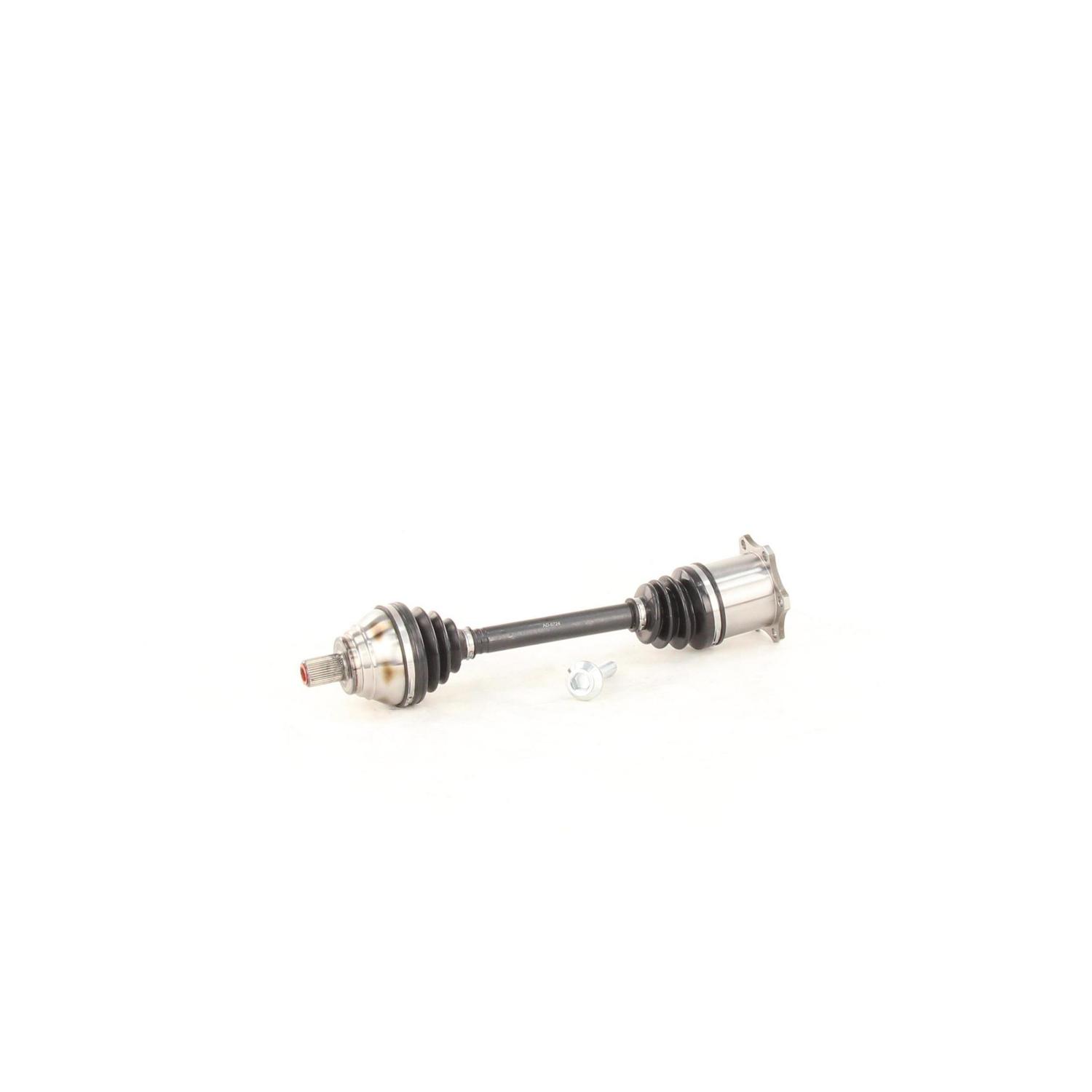

TrakMotive VW-8134 CV Axle Shaft
