TrakMotive VW-8109 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

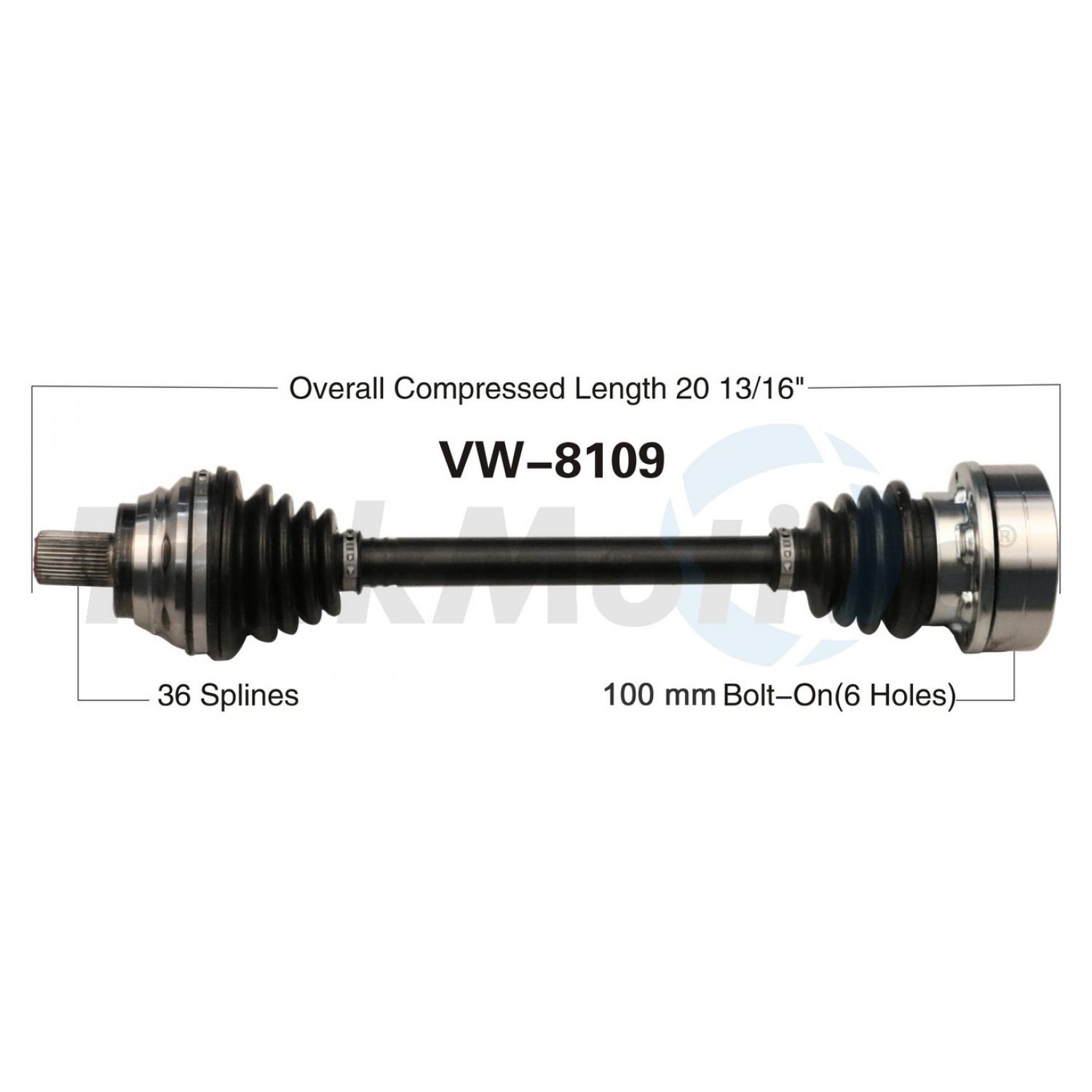

Overall Compressed Length (mm)	529
Overall Compressed Length (in)	20.83
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Audi Style Spline Bolt
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	97
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	27
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M8X1.25
Inboard Bolt Head Size (mm)	6
Inboard Bolt Head Size (in)	.25
Inboard Bolt Length (mm)	58
Inboard Bolt Length (in)	2.29
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Bolt-on
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	844084097262
Origin Country:	CN
Weight:	13.32Lb. (6.06 kg.)
Package Dimensions:	23.6" x 4.3" x 4.3" (60 cm x 11 cm x 11 cm)

1 Year Warranty
