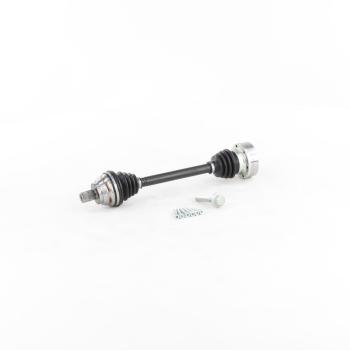

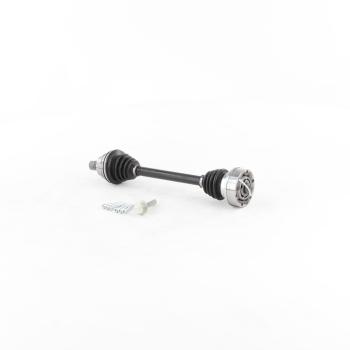

TrakMotive VW-8086 CV Axle Shaft

class="product_image_primary" alt="TrakMotive VW8086 CV Axle Shaft product image 2 of 3" title="TrakMotive VW8086 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive VW8086 CV Axle Shaft product image 3 of 3" title="TrakMotive VW8086 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$185.97$101.60 CAD

10+ In Stock

Ships: Monday Oct. 13th

Pick-Up: Ready in 1 Hour Monday Oct. 13th

Brand: TrakMotive

Stock #: VW8086

Condition: New

UPC: 844084097866

Weight: 13.29 lb.(6.05 kg.)

Dimensions: 23.6" x 4.3" x 4.3" (60 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	521
Overall Compressed Length (in)	20.51
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Audi Style Spline Bolt
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	97
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	27
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M8X1.25
Inboard Bolt Head Size (mm)	6
Inboard Bolt Head Size (in)	.25
Inboard Bolt Length (mm)	58
Inboard Bolt Length (in)	2.29
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Bolt-on
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	844084097866
Origin Country:	CN
Weight:	13.29Lb. (6.05 kg.)
Package Dimensions:	23.6" x 4.3" x 4.3" (60 cm x 11 cm x 11 cm)
