TrakMotive VO-8019 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

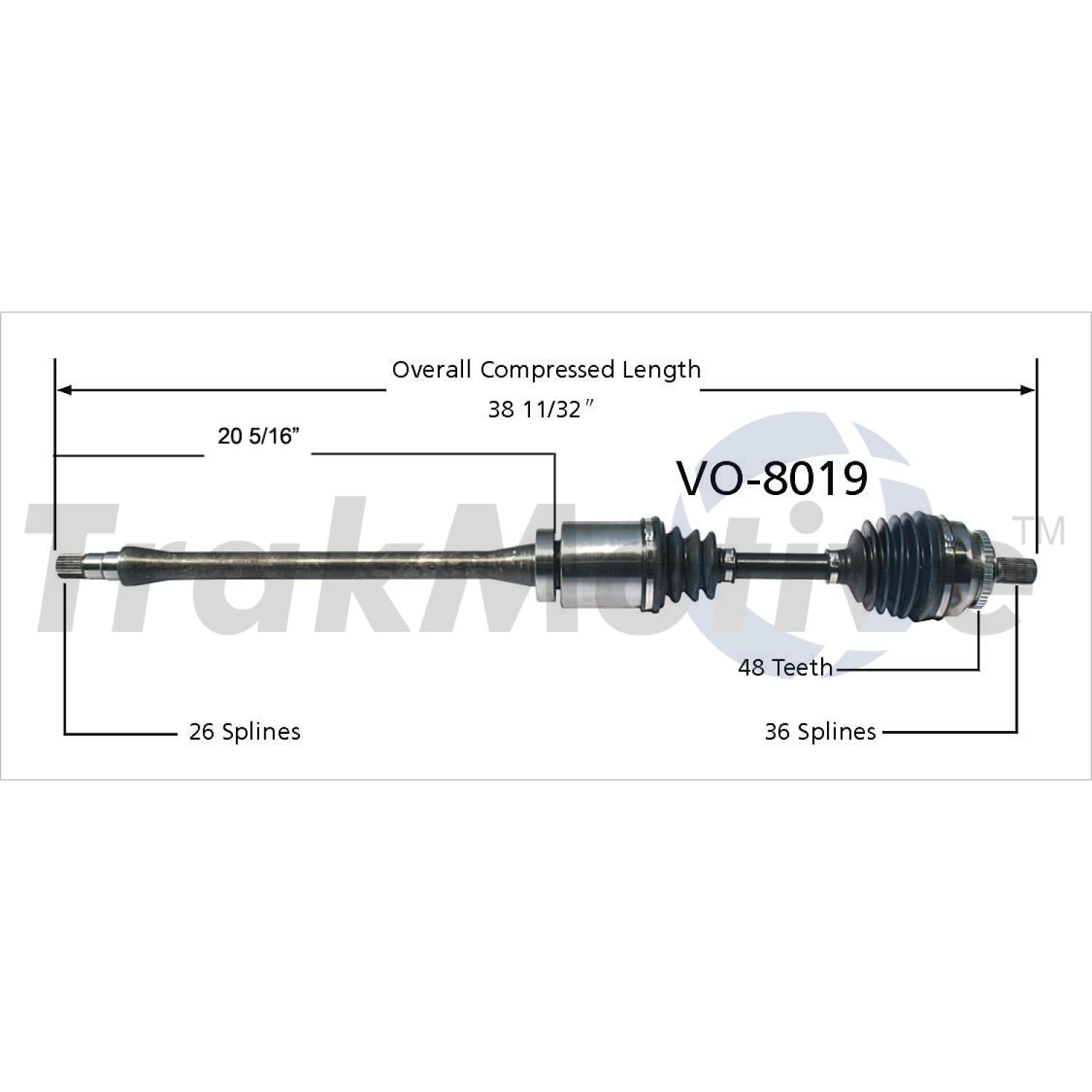

Overall Compressed Length (mm)	974
Overall Compressed Length (in)	38.35
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	Audi Style Spline Bolt
Number Of Inboard Splines	26
Number Of Outboard Splines	36
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Toothed
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	75
Axle Bolt Thread Size	M10x1.5
Axle Bolt Hex Size (mm)	13
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Male
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	844084096197
Origin Country:	CN
Weight:	21.61Lb. (9.83 kg.)
Package Dimensions:	42.1" x 4.3" x 4.3" (107 cm x 11 cm x 11 cm)

1 Year Warranty
