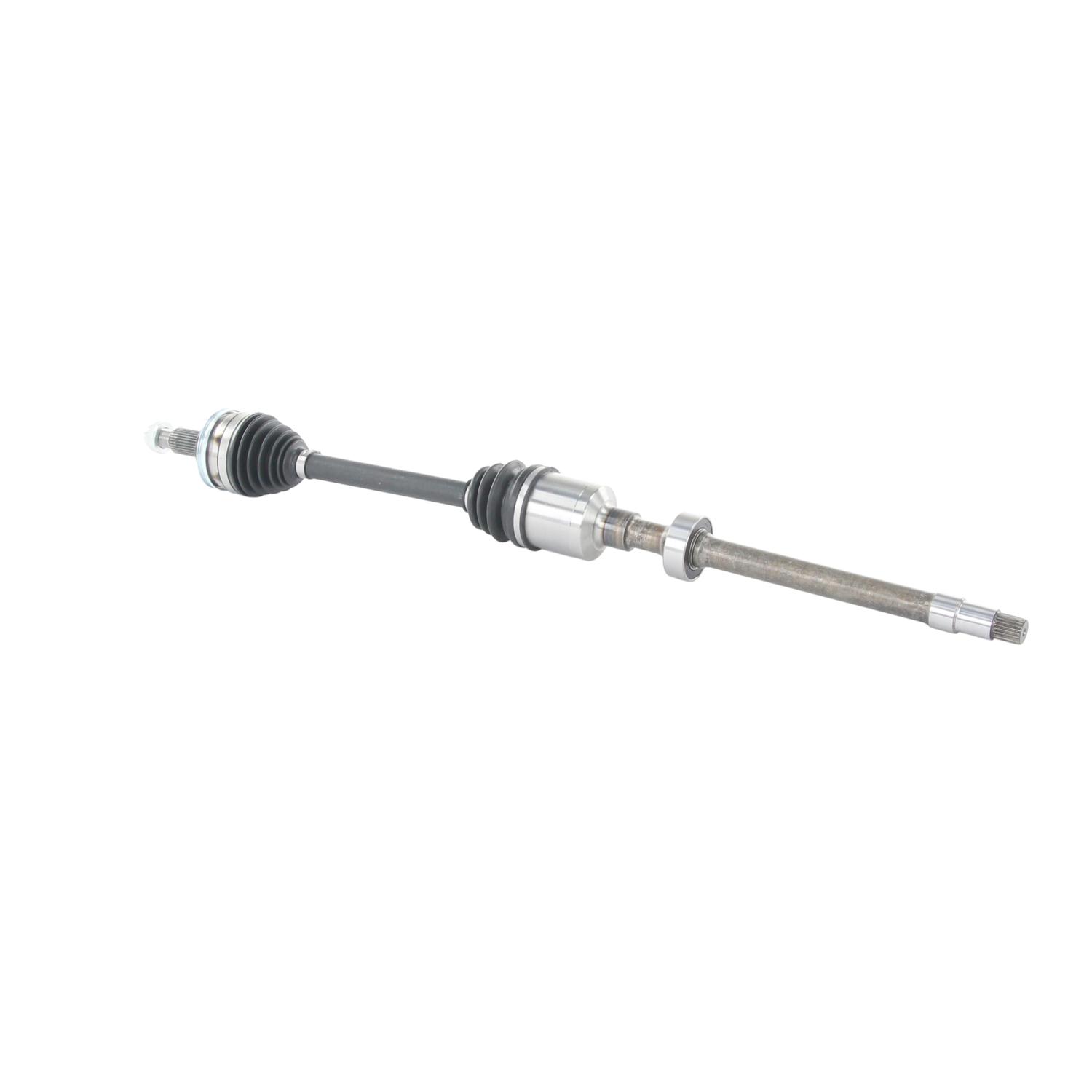

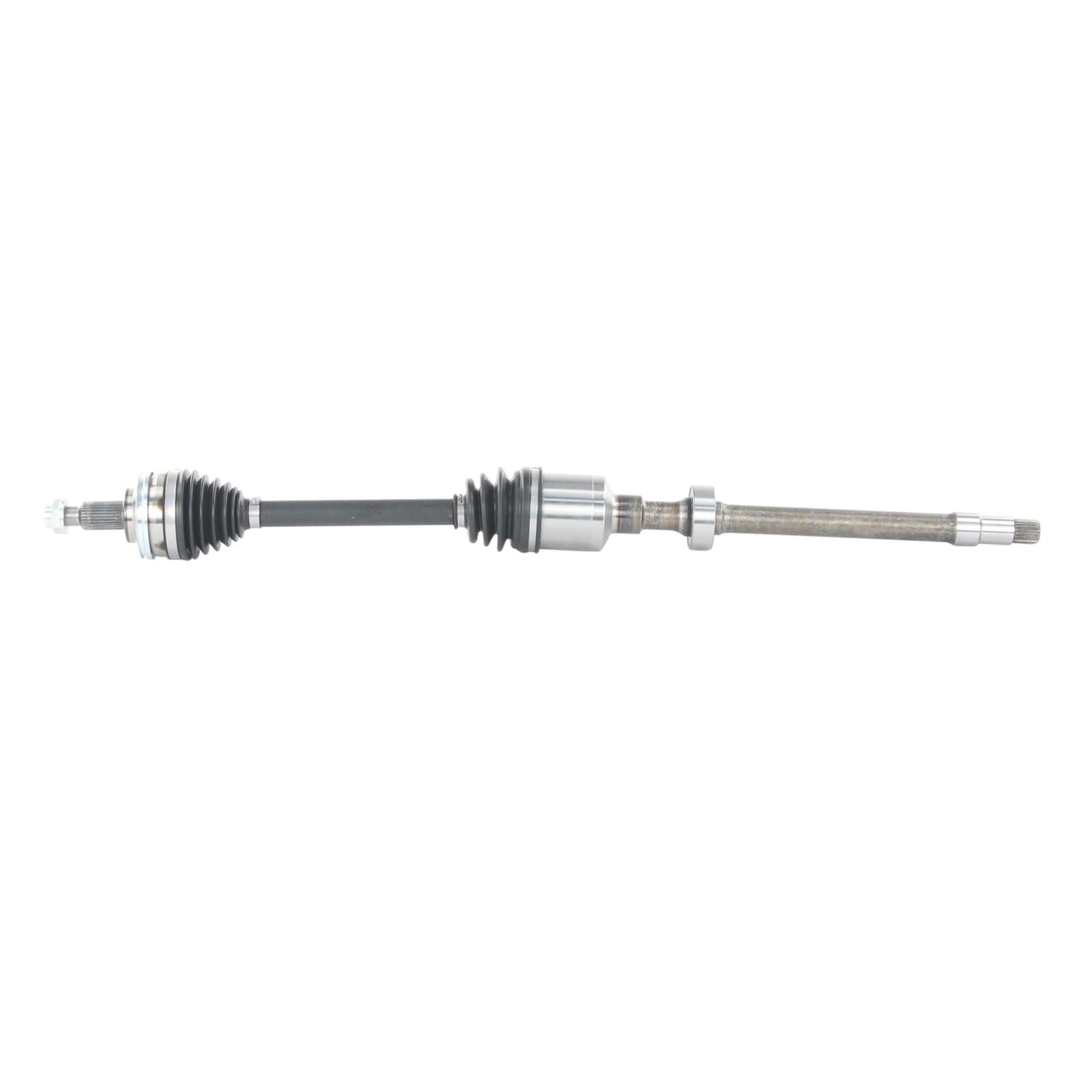

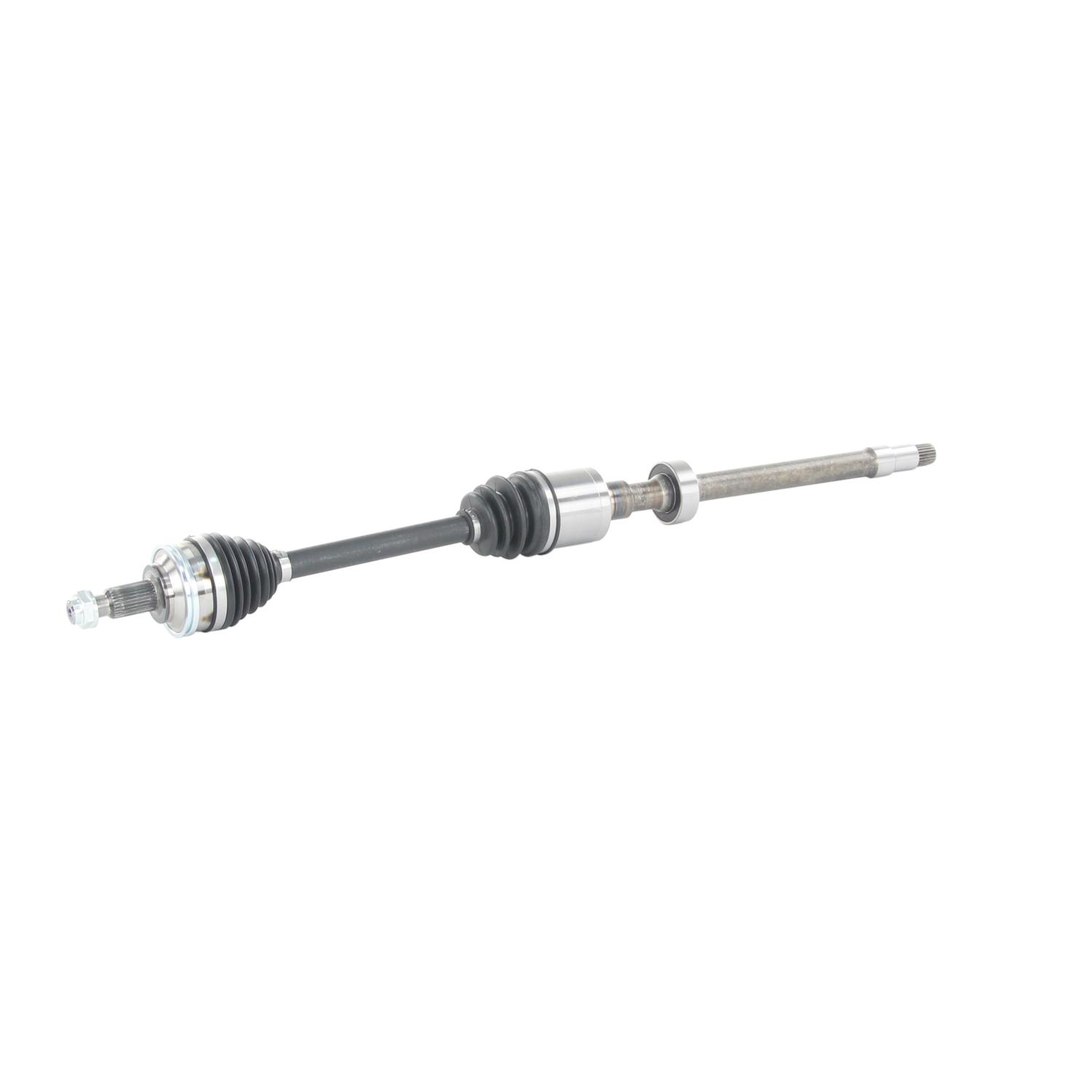

TrakMotive TO-86068 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	975
Overall Compressed Length (in)	38.38
Overall Extended Length (in)	40.5
Overall Extended Length (mm)	1029
Number Of Inboard Splines	23
Number Of Outboard Splines	30
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Height (in)	.79
Axle Nut Height (mm)	20
Axle Nut Hex Size (in)	1.25
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Long-Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140514889
Origin Country:	CN
Weight:	18.11Lb. (8.23 kg.)
Package Dimensions:	45.1" x 4.3" x 4.3" (114.6 cm x 11 cm x 11 cm)

1 Year Warranty

TrakMotive TO-86068 CV Axle Shaft
