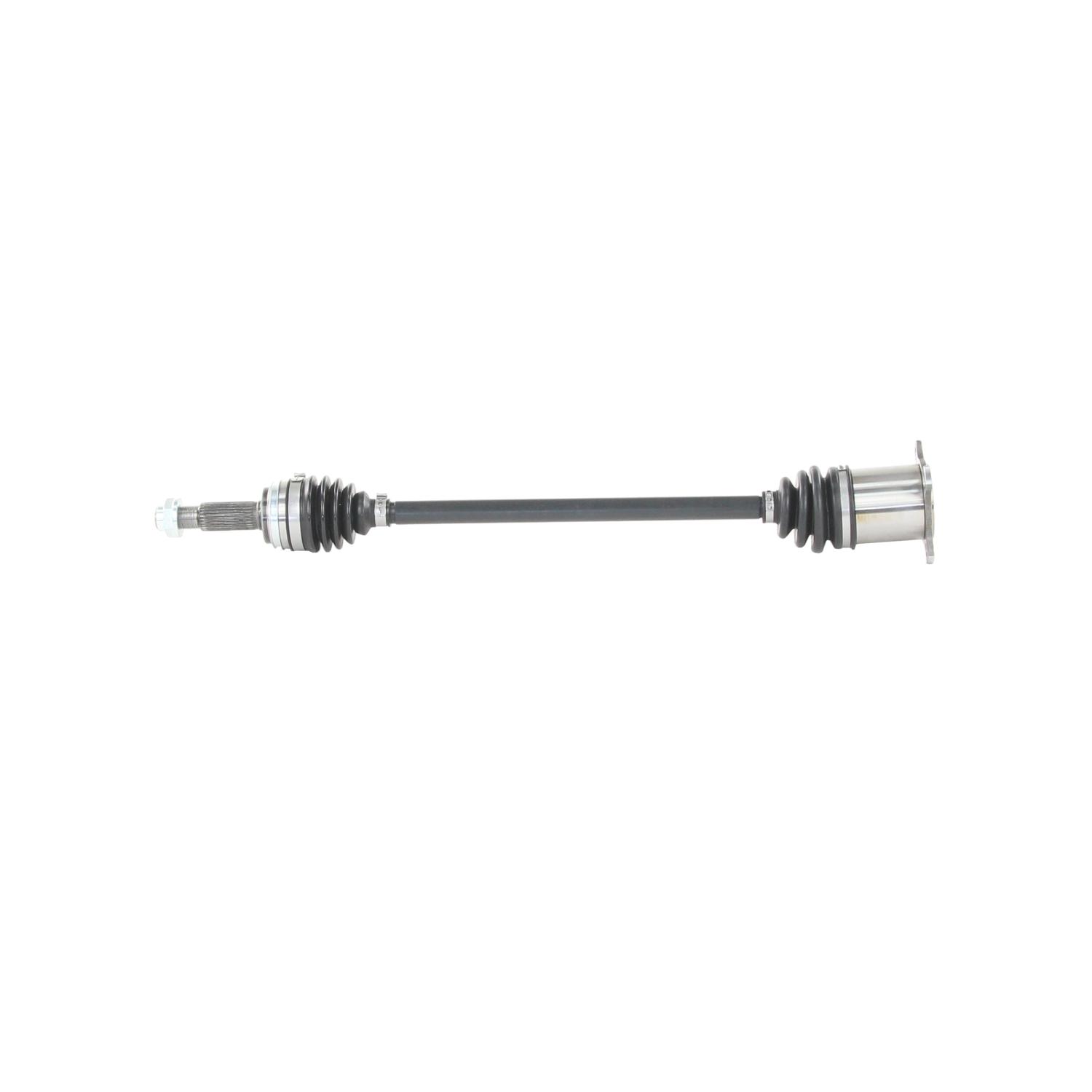

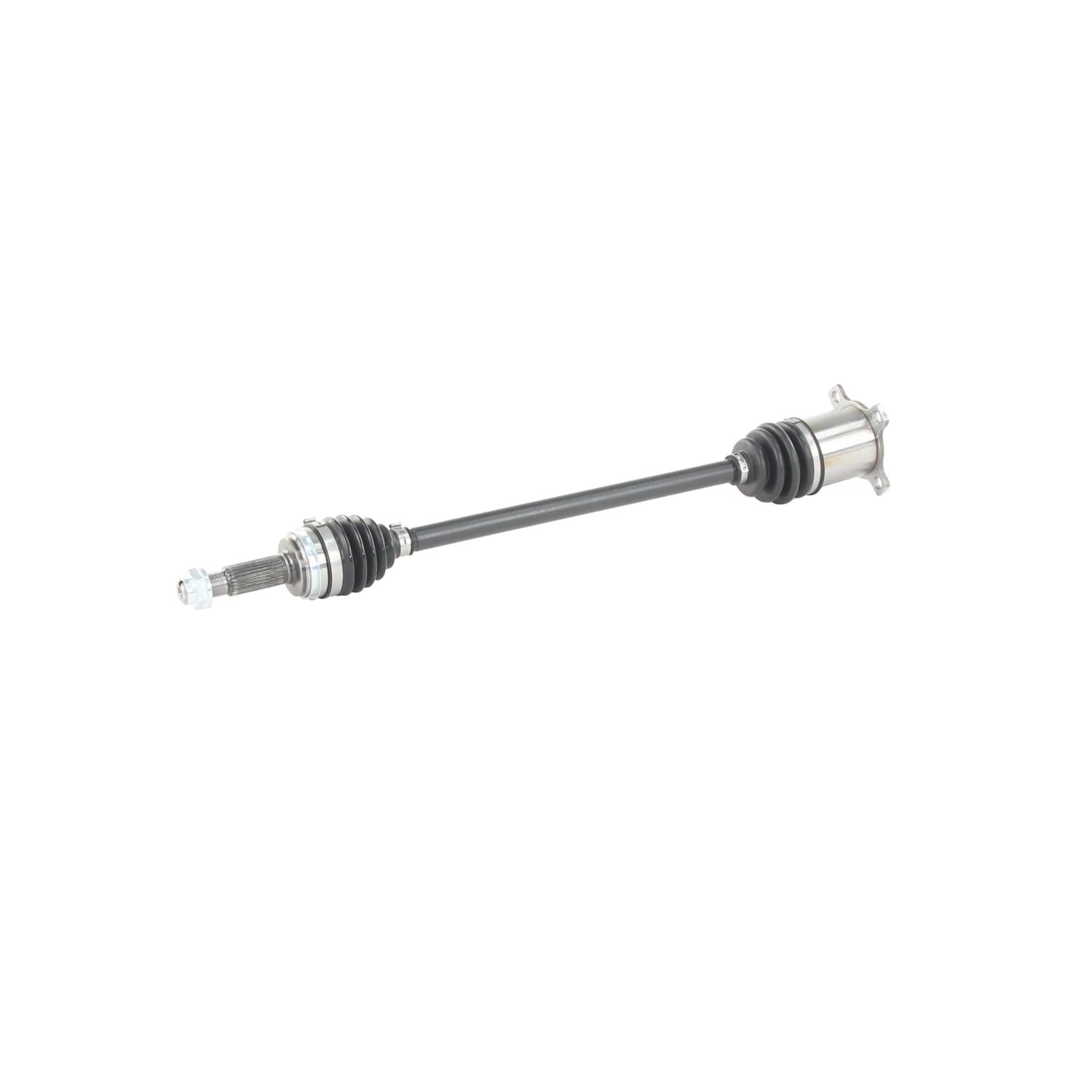

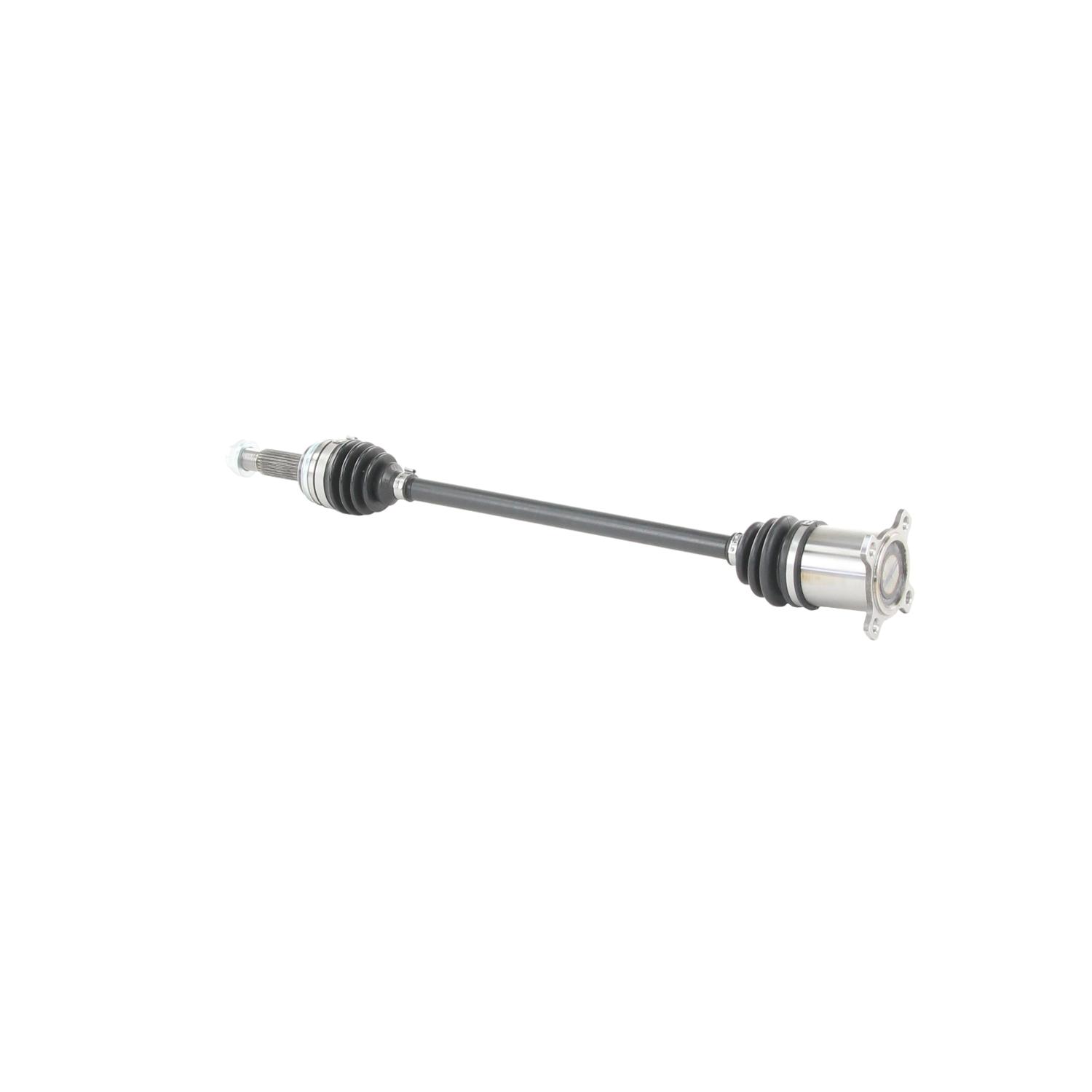

TrakMotive TO-86052 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	675
Overall Compressed Length (in)	26.56
Overall Extended Length (in)	28.56
Overall Extended Length (mm)	726
Number Of Inboard Splines	0
Number Of Outboard Splines	26
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Height (mm)	20
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Outboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	4
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140514407
Origin Country:	CN
Weight:	10.74Lb. (4.89 kg.)
Package Dimensions:	31.4" x 4.3" x 4.3" (79.8 cm x 11 cm x 11 cm)

1 Year Warranty
