TrakMotive TO-8414 CV Axle Shaft

AAR CV Axle Shaft

$208.55 CAD

In Stock

Ships: Today, Oct. 16th

Pick-Up: Ready in 2-3 Hours (Order before 3:00 PM)

Stock #: TO8414

Condition: New

UPC: 00844084042903

Weight: 24.89 lb.(11.32 kg.)

Dimensions: 42.1" x 4.3" x 4.3" (107 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

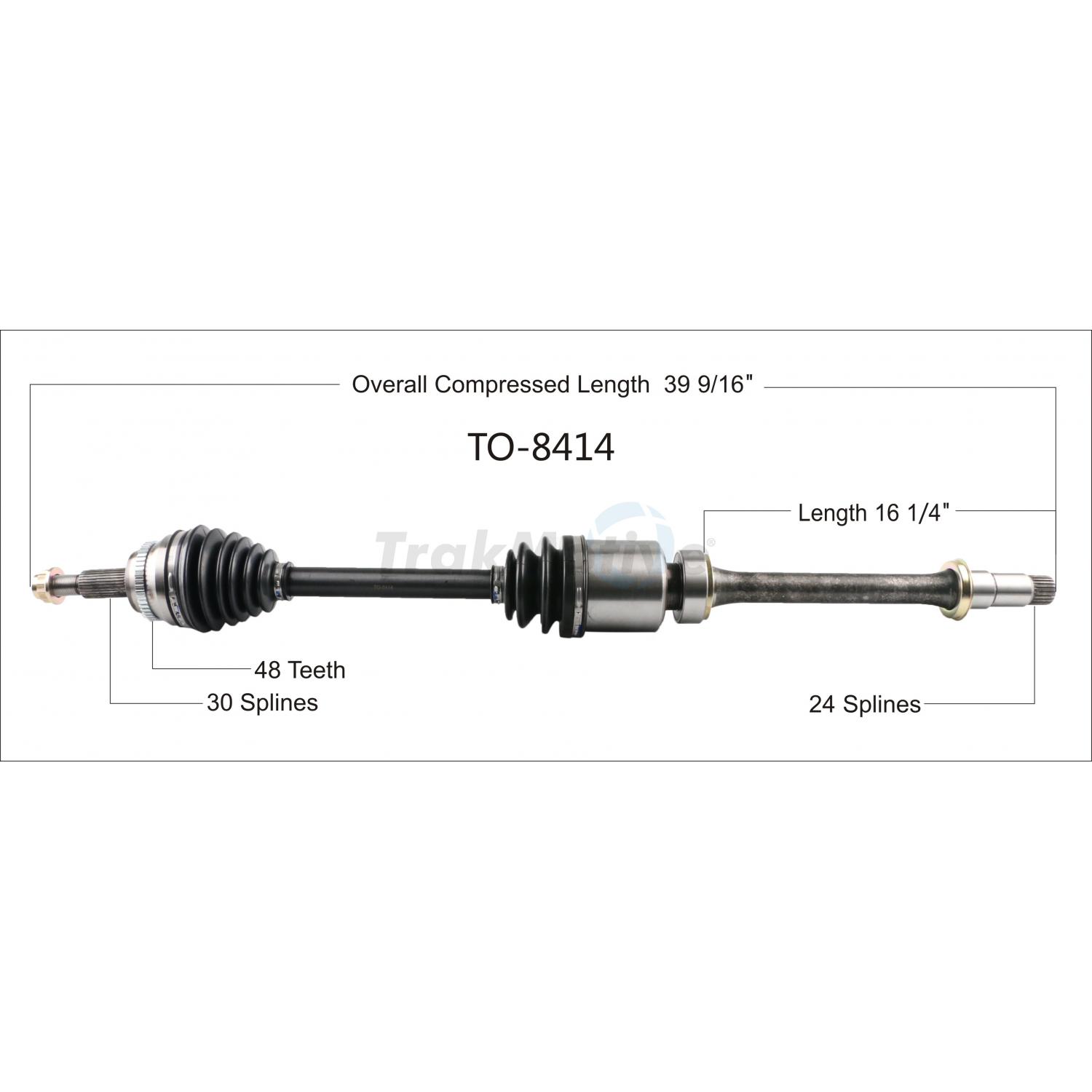

Overall Compressed Length (mm)	1005
Overall Compressed Length (in)	39.57
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	24
Number Of Outboard Splines	30
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	30
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.85
Axle Nut Length (in)	1.36
Axle Nut Height (mm)	22
Axle Nut Length (mm)	35
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.18
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	30
UPC	00844084042903
Origin Country:	CN
Weight:	24.89Lb. (11.32 kg.)
Package Dimensions:	42.1" x 4.3" x 4.3" (107 cm x 11 cm x 11 cm)
