TrakMotive TO-8306 CV Axle Shaft

class="product_image_primary" alt="TrakMotive TO8306 CV Axle Shaft product image 2 of 3" title="TrakMotive TO8306 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive TO8306 CV Axle Shaft product image 3 of 3" title="TrakMotive TO8306 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$282.12$161.14 CAD

Limited Stock

Ships: Today, Oct. 13th

Free Delivery

Pick-Up: Ready in 1 Hour (Order before 4:30 PM)

Brand: TrakMotive

Stock #: TO8306

Condition: New

UPC: 844084072849

Weight: 18.75 lb.(8.52 kg.)

Dimensions: 31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

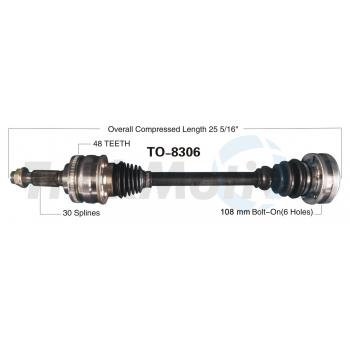

Overall Compressed Length (mm)	643
Overall Compressed Length (in)	25.31
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	0
Number Of Outboard Splines	30
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M26x1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.6
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	16
Axle Nut Length (mm)	35
Axle Nut Locking Type	Cotter Pin
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Bolt-on
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084072849
Origin Country:	CN
Weight:	18.75Lb. (8.52 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)
