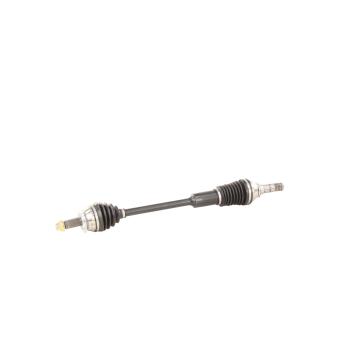

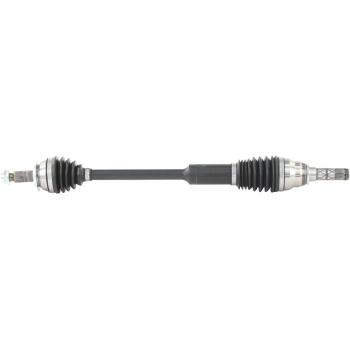

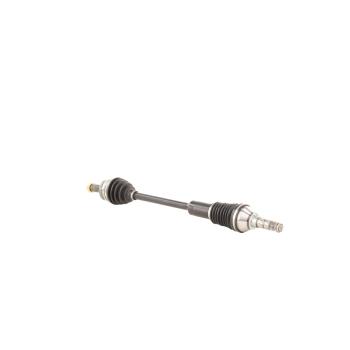

TrakMotive SB-8047XTT CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.

Overall Compressed Length (mm)	775
Overall Compressed Length (in)	30.51
Overall Extended Length (in)	32.68
Overall Extended Length (mm)	830
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	25
Number Of Outboard Splines	27
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (mm)	20
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Number Of Bolt Holes	0
Inboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00195013042694
Origin Country:	CN
Weight:	14.02Lb. (6.38 kg.)
Package Dimensions:	37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)

1 Year Warranty

TrakMotive SB-8047XTT CV Axle Shaft
