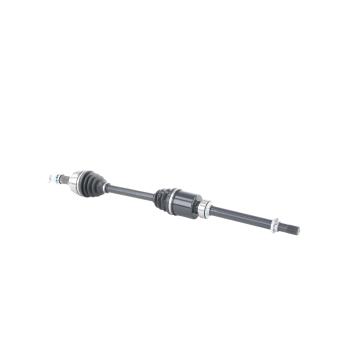

TrakMotive NI-8632 CV Axle Shaft

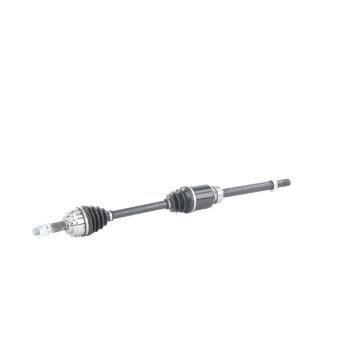

class="product_image_primary" alt="TrakMotive NI8632 CV Axle Shaft product image 2 of 3" title="TrakMotive NI8632 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive NI8632 CV Axle Shaft product image 3 of 3" title="TrakMotive NI8632 - CV Axle Shaft" fetchpriority="low">

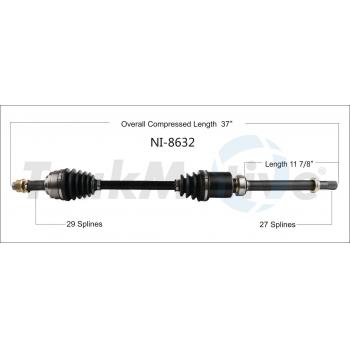

TrakMotive NI8632 CV Axle Shaft product image 3 of 3

AAR CV Axle Shaft

$205.78 CAD

Limited Stock

Ships: Next Business Day

Free Delivery

Pick-Up: Next Business Day

Brand: TrakMotive

Stock #: NI8632

Condition: New

UPC: 00844084033987

Weight: 20 lb.(9.1 kg.)

Dimensions: 39.4" x 4.3" x 4.3" (100 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	940
Overall Compressed Length (in)	37.01
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	29
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.93
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	24
Axle Nut Length (mm)	37
Axle Nut Locking Type	Cotter Pin
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084033987
Origin Country:	CN
Weight:	20Lb. (9.1 kg.)
Package Dimensions:	39.4" x 4.3" x 4.3" (100 cm x 11 cm x 11 cm)
