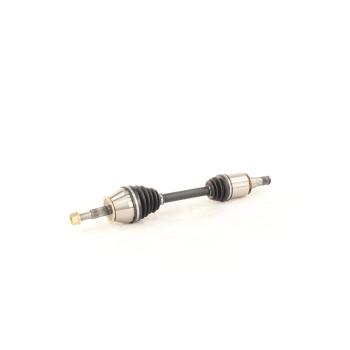

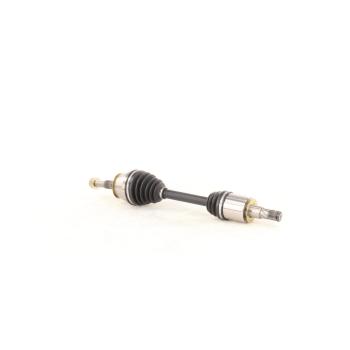

TrakMotive NI-8574 CV Axle Shaft

class="product_image_primary" alt="TrakMotive NI8574 CV Axle Shaft product image 2 of 3" title="TrakMotive NI8574 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive NI8574 CV Axle Shaft product image 3 of 3" title="TrakMotive NI8574 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$164.17 CAD

In Stock

Ships: Next Business Day

Free Delivery

Pick-Up: Next Business Day

Brand: TrakMotive

Stock #: NI8574

Condition: New

UPC: 00844084027955

Weight: 22.49 lb.(10.23 kg.)

Dimensions: 33.5" x 5.9" x 6.1" (85 cm x 15 cm x 15.5 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

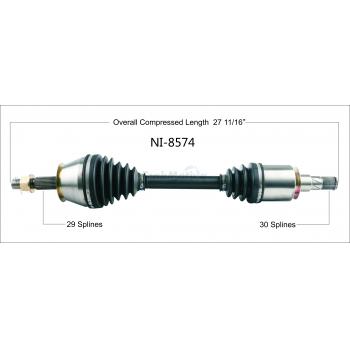

Overall Compressed Length (mm)	703
Overall Compressed Length (in)	27.68
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	30
Number Of Outboard Splines	29
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	1
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	24
Axle Nut Length (mm)	35
Axle Nut Locking Type	Cotter Pin
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084027955
Origin Country:	CN
Weight:	22.49Lb. (10.23 kg.)
Package Dimensions:	33.5" x 5.9" x 6.1" (85 cm x 15 cm x 15.5 cm)
