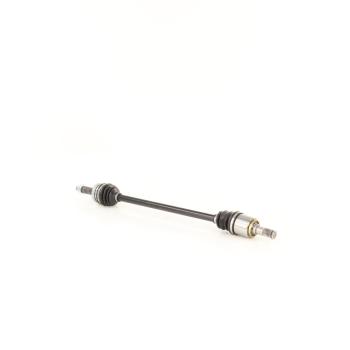

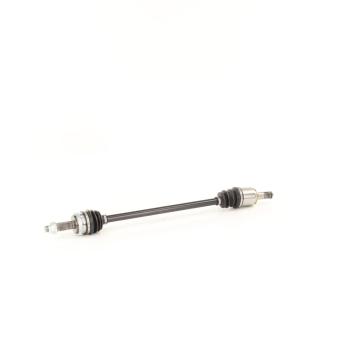

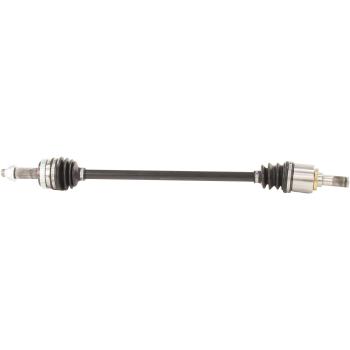

TrakMotive KA-8147 CV Axle Shaft

class="product_image_primary" alt="TrakMotive KA8147 CV Axle Shaft product image 2 of 3" title="TrakMotive KA8147 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive KA8147 CV Axle Shaft product image 3 of 3" title="TrakMotive KA8147 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$171.42 CAD

Limited Stock

Ships: Next Business Day

Free Delivery

Pick-Up: Next Business Day

Brand: TrakMotive

Stock #: KA8147

Condition: New

UPC: 00844084089199

Weight: 12.99 lb.(5.91 kg.)

Dimensions: 37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	815
Overall Compressed Length (in)	32.09
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	25
Number Of Outboard Splines	27
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.94
Axle Nut Length (in)	1.26
Axle Nut Height (mm)	24
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.45
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084089199
Origin Country:	CN
Weight:	12.99Lb. (5.91 kg.)
Package Dimensions:	37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)
