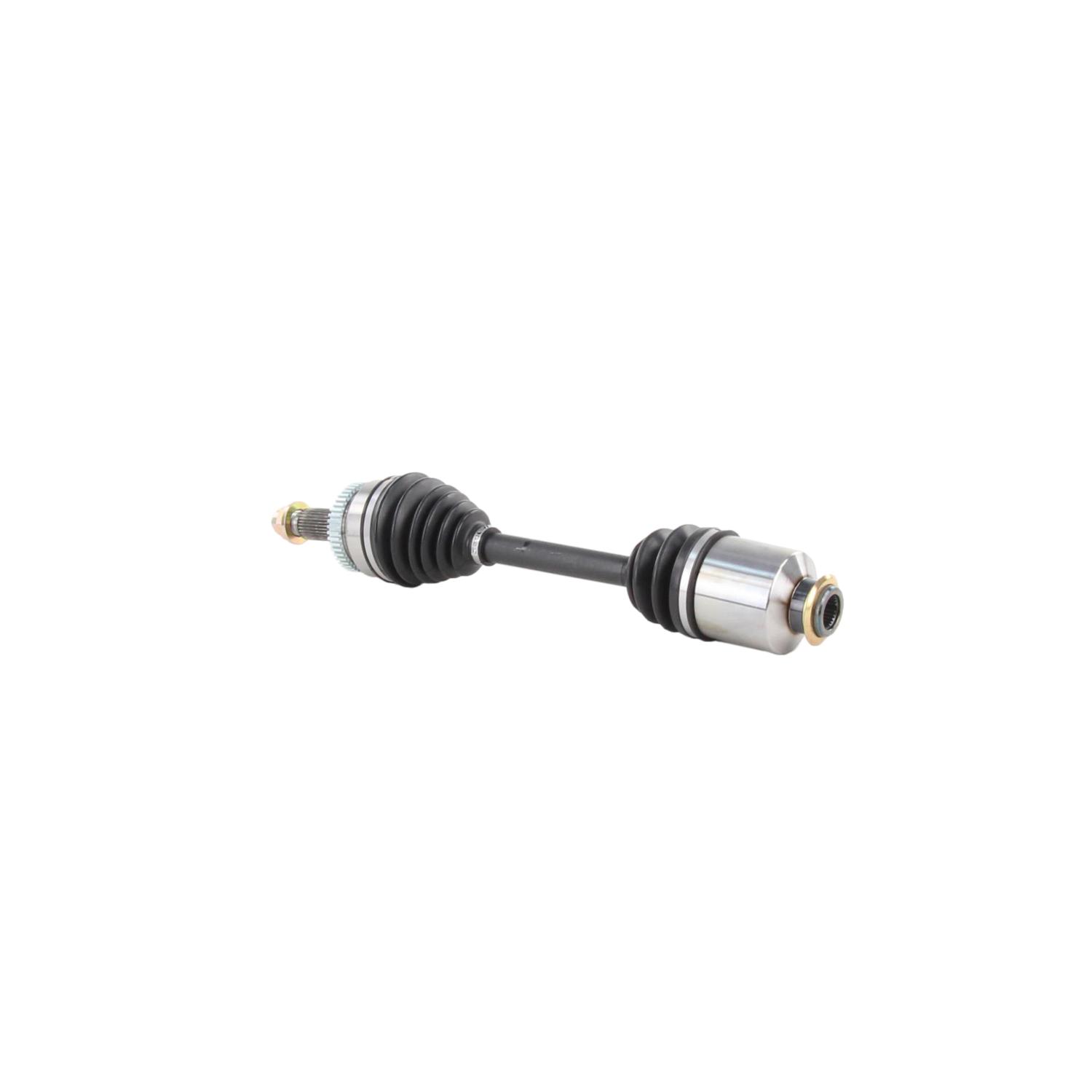

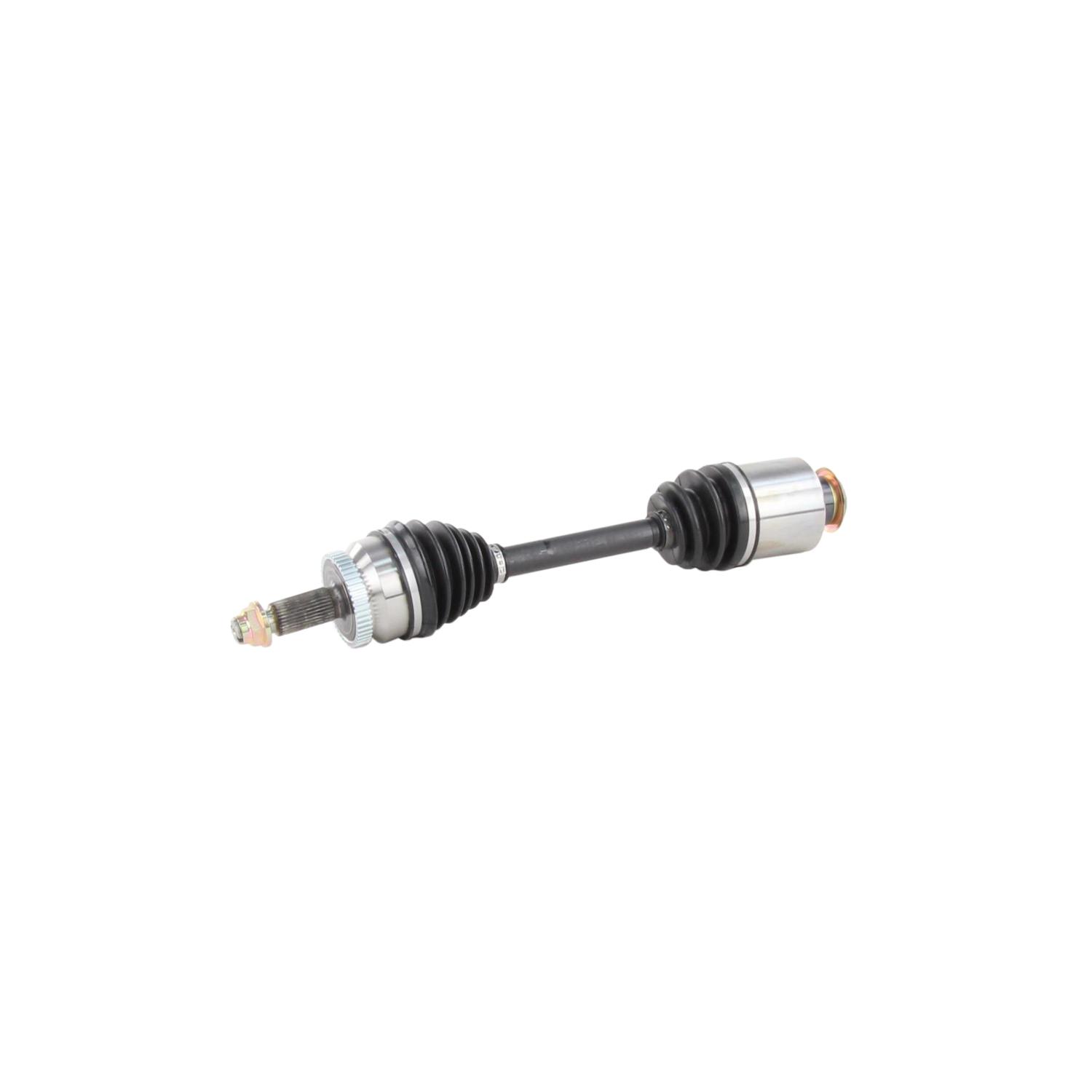

TrakMotive HY-8338 CV Axle Shaft

AAR CV Axle Shaft

$175.22 CAD

10+ In Stock

Ships: Today, Oct. 16th

Pick-Up: Ready in 2-3 Hours (Order before 3:00 PM)

Stock #: HY8338

Condition: New

UPC: 00844084044983

Weight: 17.16 lb.(7.8 kg.)

Dimensions: 26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

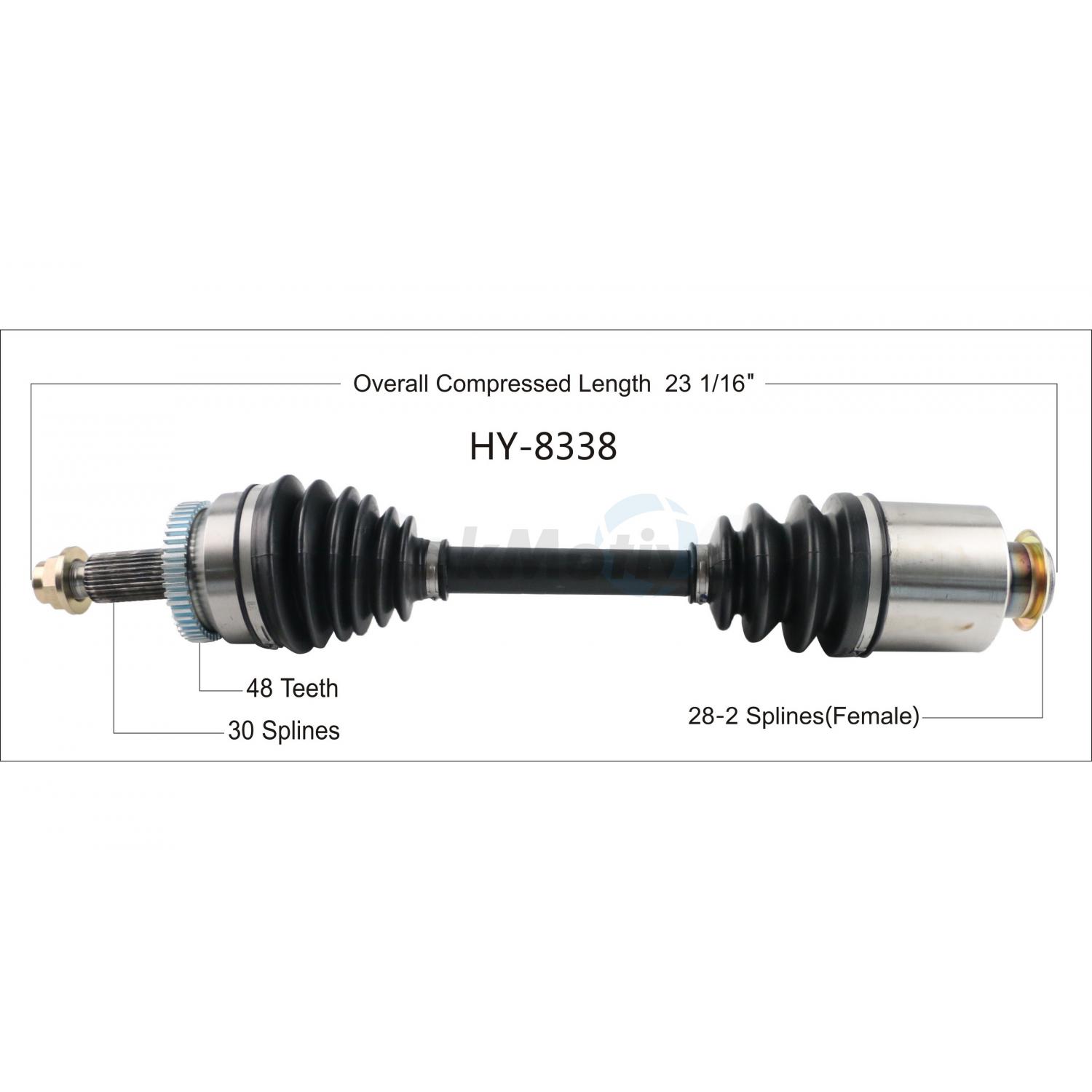

Overall Compressed Length (mm)	586
Overall Compressed Length (in)	23.05
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	28-2T
Number Of Outboard Splines	30
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.91
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	23
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.26
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084044983
Origin Country:	CN
Weight:	17.16Lb. (7.8 kg.)
Package Dimensions:	26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)
