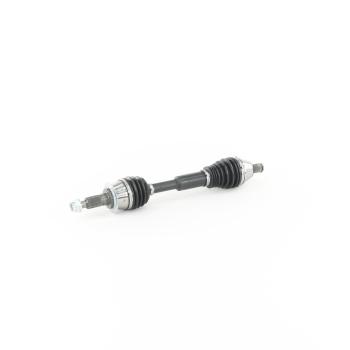

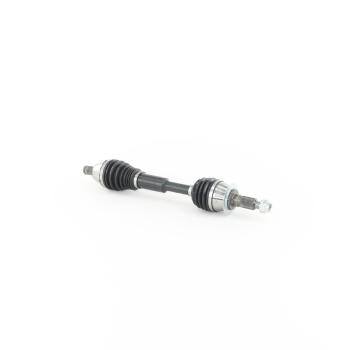

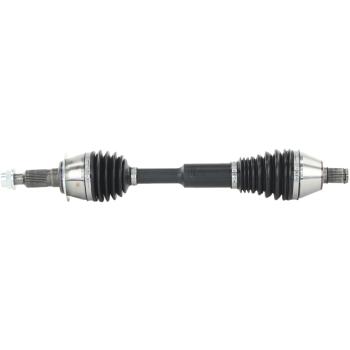

TrakMotive GM-8545XTT CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.

Overall Compressed Length (mm)	627
Overall Compressed Length (in)	24.69
Overall Extended Length (in)	27.05
Overall Extended Length (mm)	687
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	28
Number Of Outboard Splines	33
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	36
Axle Nut Thread Size	M24x2
Axle Nut Head Type	Hex
Axle Nut Height (in)	1
Axle Nut Height (mm)	26
Axle Nut Length (mm)	42
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Inboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	36
UPC	00195013093948
Origin Country:	CN
Weight:	20.57Lb. (9.35 kg.)
Package Dimensions:	48" x 40" x 40.9" (121.9 cm x 101.6 cm x 104 cm)

1 Year Warranty

TrakMotive GM-8545XTT CV Axle Shaft
