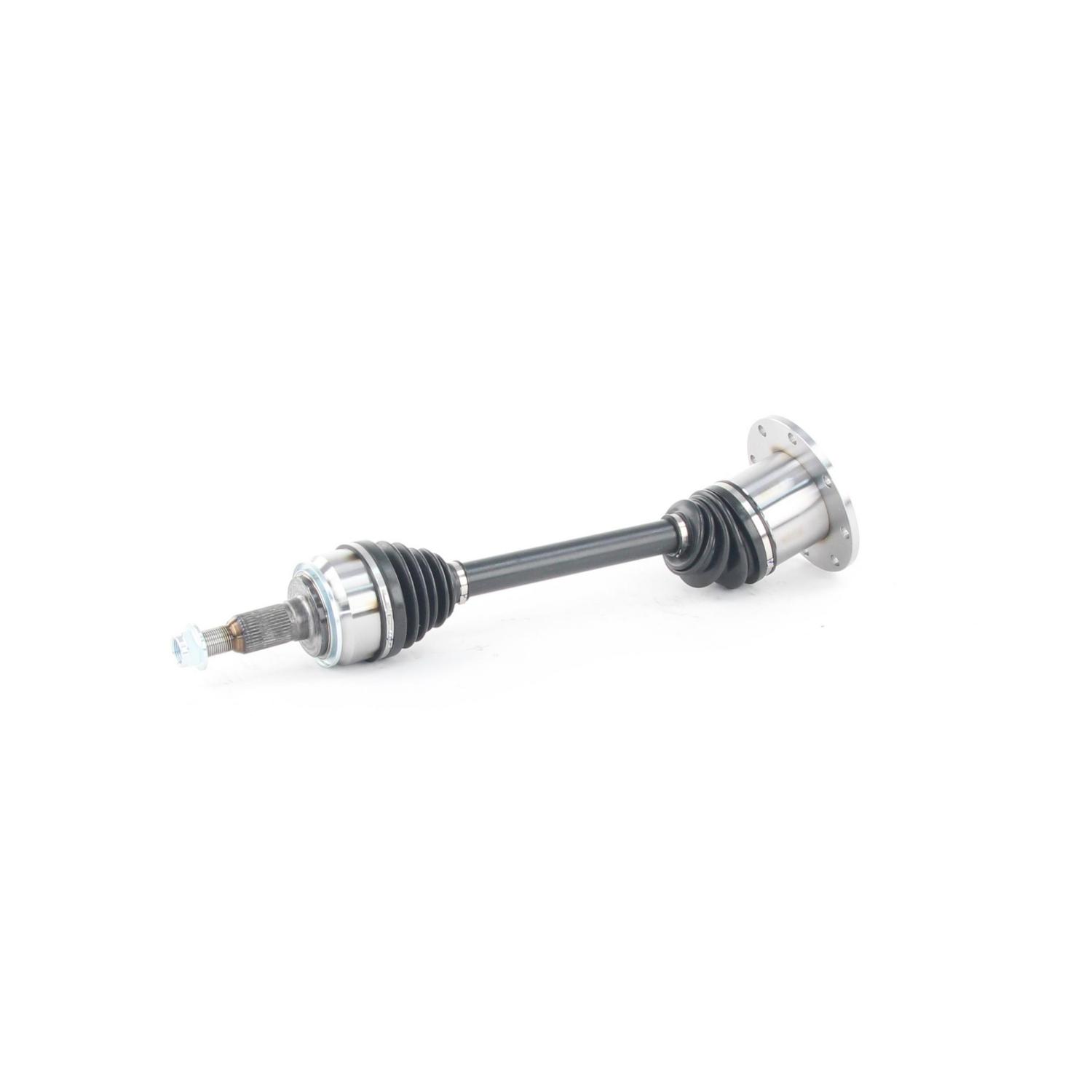

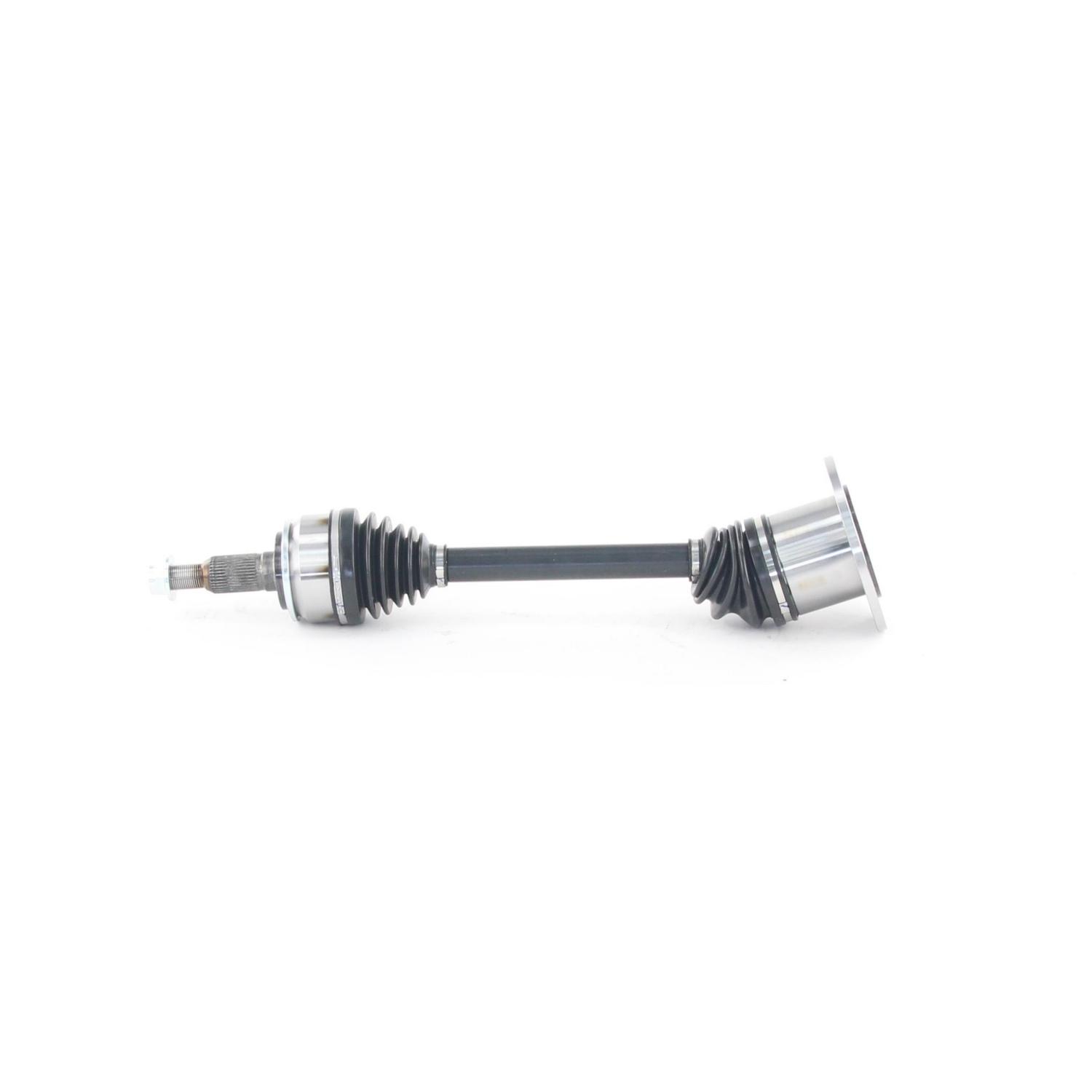

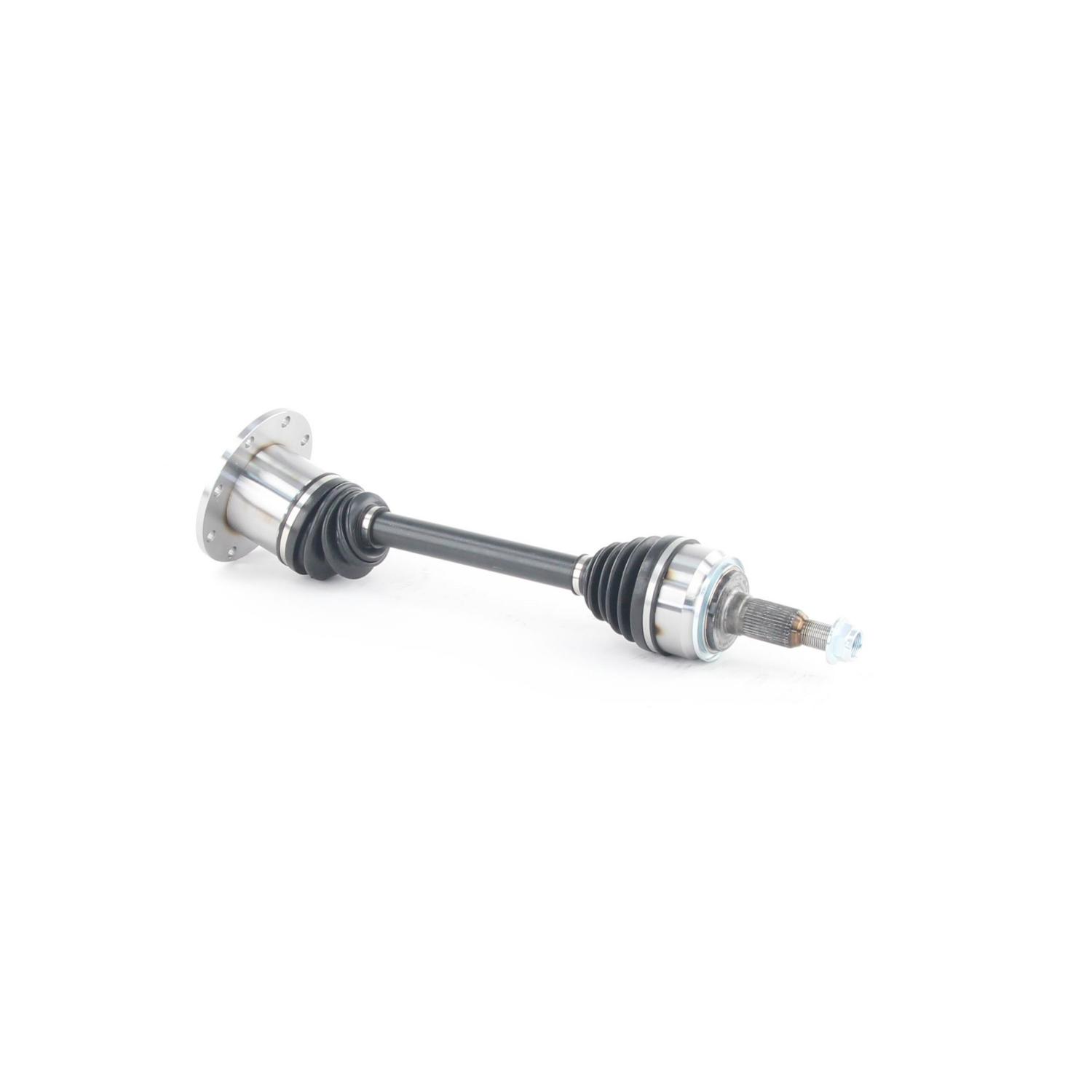

TrakMotive GM-8520 CV Axle Shaft

CV Axle Shaft

$303.02 CAD

In Stock

Ships: Today, Oct. 14th

Pick-Up: Ready in 2-3 Hours (Order before 3:30 PM)

Stock #: GM8520

Condition: New

UPC: 00840140506471

Weight: 30.41 lb.(13.82 kg.)

Dimensions: 33.5" x 7.9" x 7.9" (85 cm x 20 cm x 20 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	686
Overall Compressed Length (in)	27.01
Overall Extended Length (in)	29.37
Overall Extended Length (mm)	746
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	33
Axle Nut Thread Size	M27x2
Axle Nut Head Type	Hex
Axle Nut Height (mm)	22
Axle Nut Length (mm)	38
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	8
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	33
UPC	00840140506471
Origin Country:	CN
Weight:	30.41Lb. (13.82 kg.)
Package Dimensions:	33.5" x 7.9" x 7.9" (85 cm x 20 cm x 20 cm)
