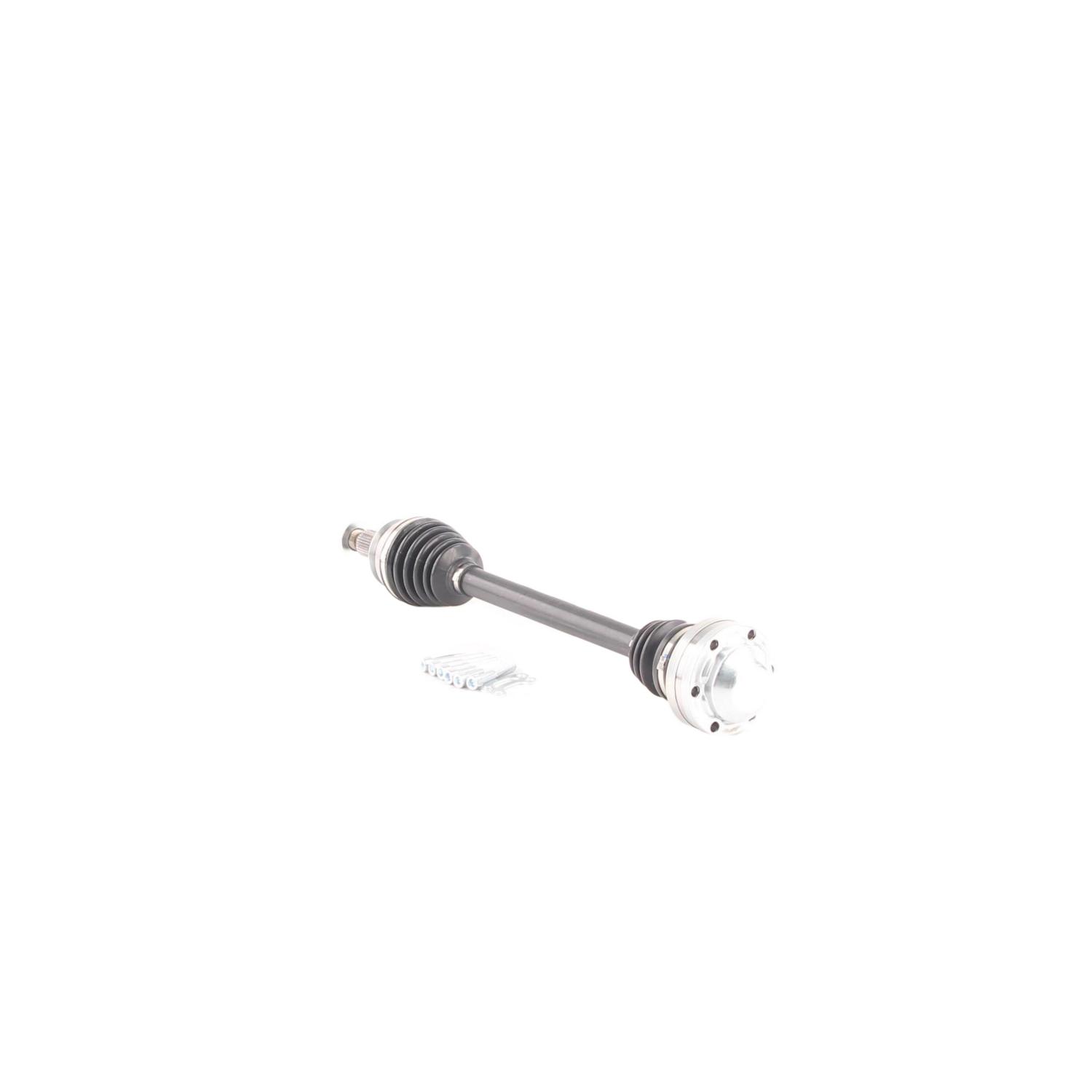

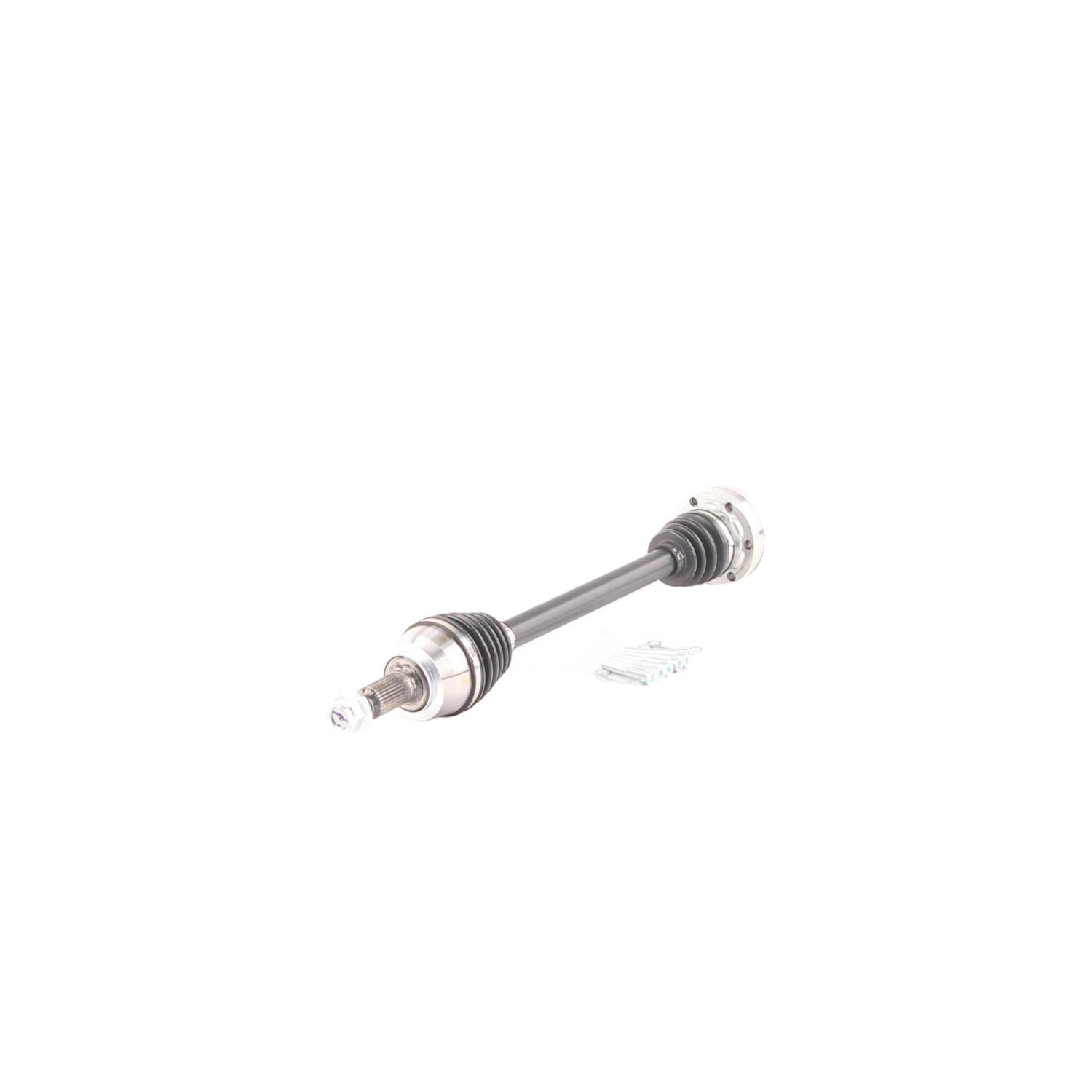

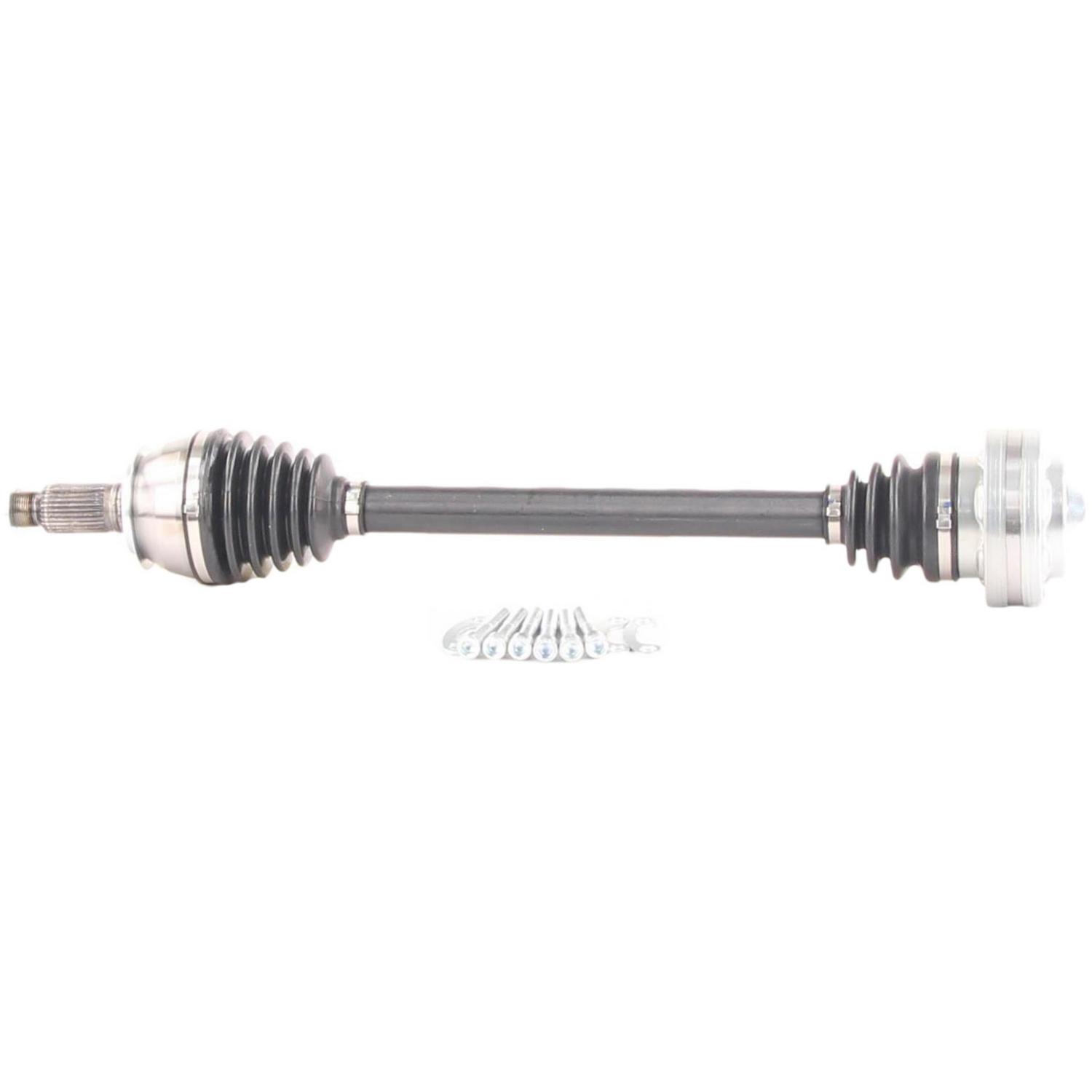

TrakMotive GM-8510 CV Axle Shaft

CV Axle Shaft

$216.56 CAD

In Stock

Ships: Today, Oct. 13th

Pick-Up: Ready in 2-3 Hours (Order before 3:30 PM)

Stock #: GM8510

Condition: New

UPC: 00840140504736

Weight: 18.46 lb.(8.39 kg.)

Dimensions: 31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	670
Overall Compressed Length (in)	26.38
Overall Extended Length (in)	27.83
Overall Extended Length (mm)	707
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	30
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (mm)	28
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	8
Inboard Bolt Head Size (in)	.31
Inboard Bolt Length (mm)	70
Inboard Bolt Length (in)	2.75
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Bolt-on
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140504736
Origin Country:	CN
Weight:	18.46Lb. (8.39 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)
