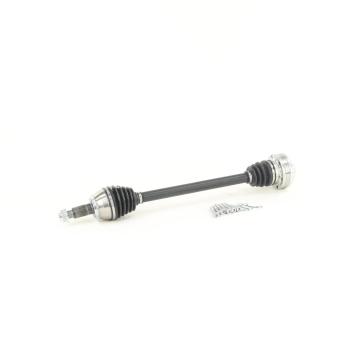

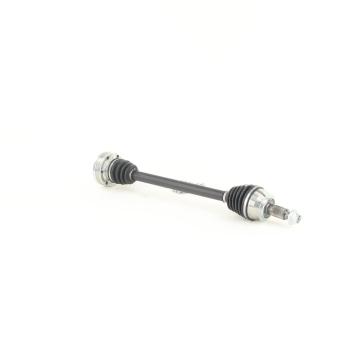

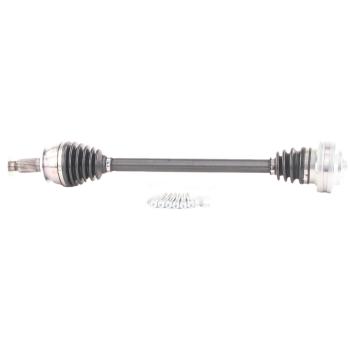

TrakMotive GM-8506 CV Axle Shaft

class="product_image_primary" alt="TrakMotive GM8506 CV Axle Shaft product image 2 of 3" title="TrakMotive GM8506 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive GM8506 CV Axle Shaft product image 3 of 3" title="TrakMotive GM8506 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$177.04 CAD

Limited Stock

Ships: Next Business Day

Free Delivery

Pick-Up: Next Business Day

Brand: TrakMotive

Stock #: GM8506

Condition: New

UPC: 00840140504729

Weight: 19.03 lb.(8.65 kg.)

Dimensions: 31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	720
Overall Compressed Length (in)	28.35
Overall Extended Length (in)	30.2
Overall Extended Length (mm)	767
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	30
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (mm)	28
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	8
Inboard Bolt Head Size (in)	.31
Inboard Bolt Length (mm)	70
Inboard Bolt Length (in)	2.75
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Bolt-on
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140504729
Origin Country:	CN
Weight:	19.03Lb. (8.65 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)
