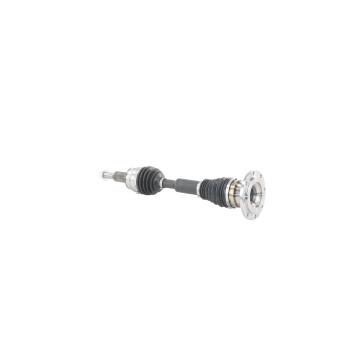

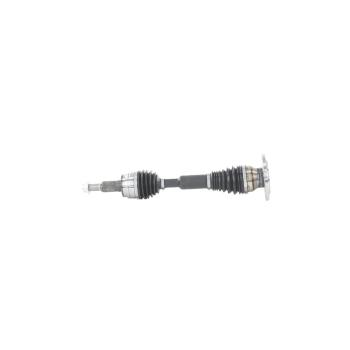

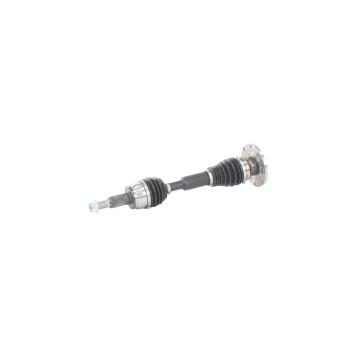

TrakMotive GM-8253XTT CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.

Overall Compressed Length (mm)	588
Overall Compressed Length (in)	23 1/8
Overall Extended Length (in)	25.5
Overall Extended Length (mm)	648
Overall Extended Length (in)	25 1/2
Overall Extended Length (mm)	648
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	N/A
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	N/A
Abs Ring Type	N/A
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32.8
Axle Nut Thread Size	M27*2
Axle Nut Head Type	Hex
Axle Nut Height (in)	7/8
Axle Nut Length (in)	1 1/2
Axle Nut Height (mm)	22
Axle Nut Length (mm)	37.87
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1 5/16
Number Of Bolt Holes	N/A
Axle Bolt Length (mm)	N/A
Axle Bolt Thread Size	N/A
Axle Bolt Hex Size (mm)	N/A
Inboard Joint Boot Material	Thermoplastic
Inboard Bolt Head Type	N/A
Inboard Bolt Thread Size	N/A
Inboard Bolt Head Size (mm)	N/A
Inboard Bolt Head Size (in)	N/A
Inboard Bolt Length (mm)	N/A
Inboard Bolt Length (in)	N/A
Outboard Bolt Head Type	N/A
Outboard Bolt Head Size (mm)	N/A
Outboard Bolt Head Size (in)	N/A
Outboard Bolt Length (mm)	N/A
Outboard Bolt Length (in)	N/A
Outboard Joint Bolt Thread Size	N/A
Number Of Inboard Shaft Bolts	N/A
Number Of Outboard Shaft Bolts	N/A
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	8
Number Of Outboard Joint Bolt Holes	N/A
Grade Type	Premium
Axle Nut Socket Size	33
UPC	00195058095440
Origin Country:	CN
Weight:	27.62Lb. (12.56 kg.)
Package Dimensions:	26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)

1 Year Warranty

TrakMotive GM-8253XTT CV Axle Shaft
