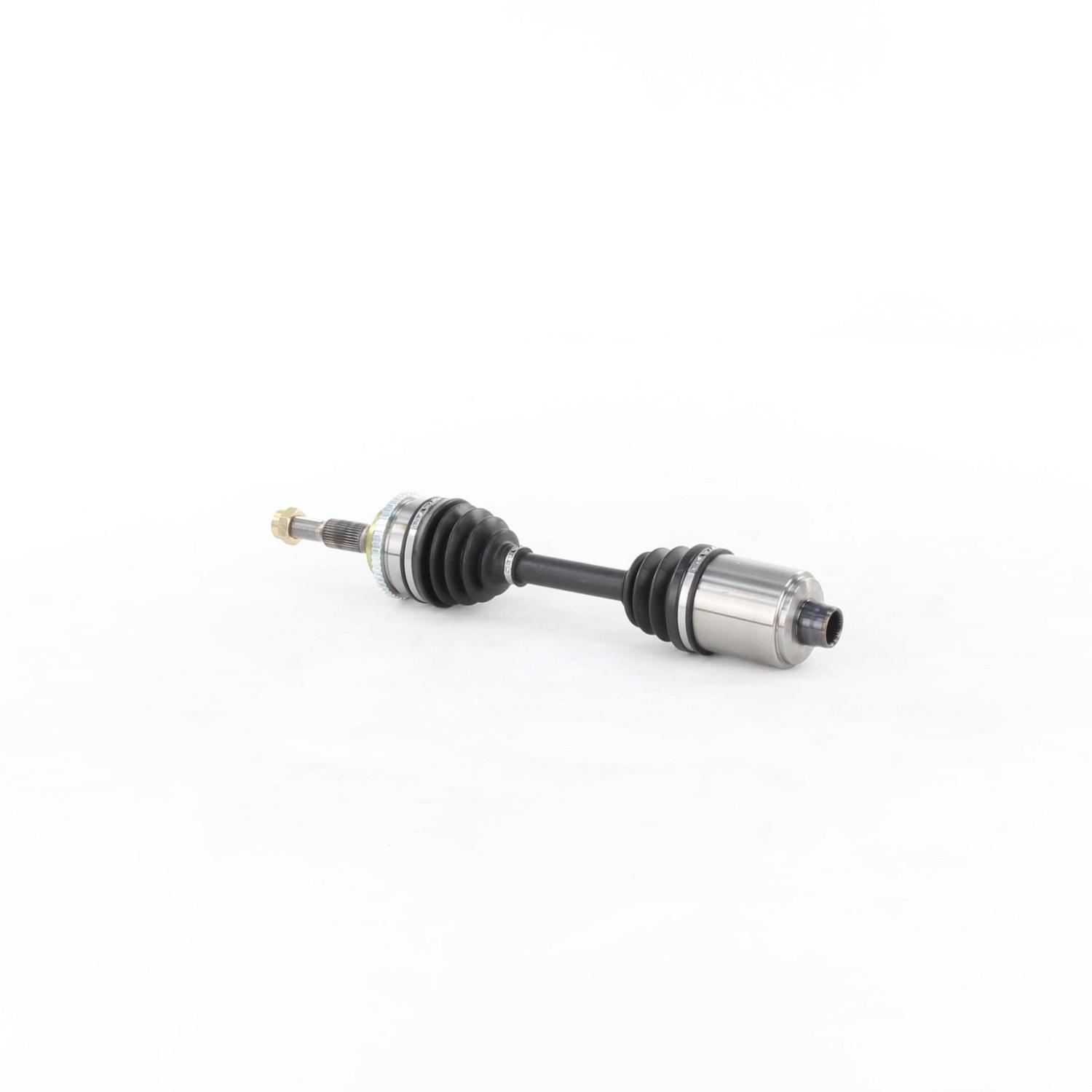

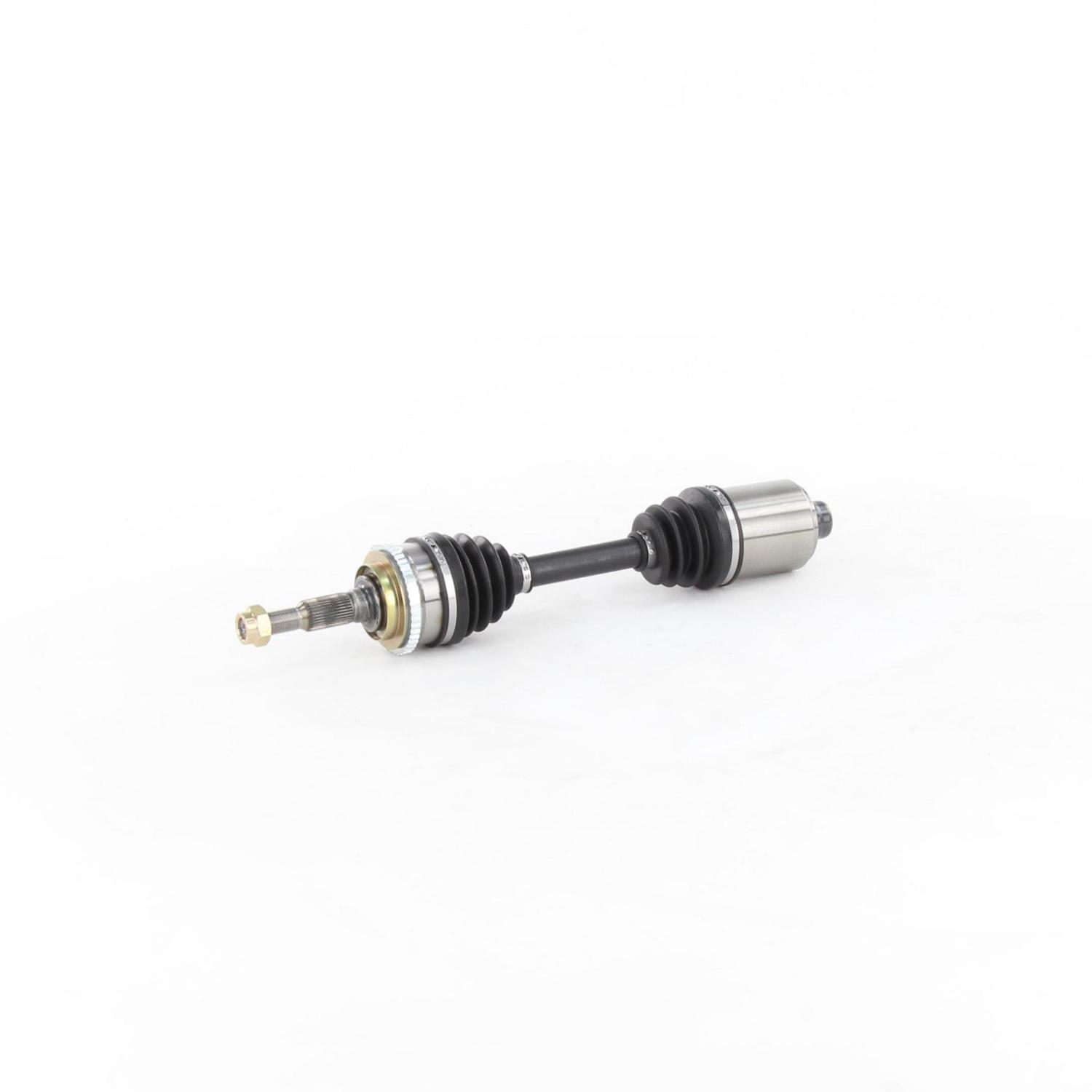

TrakMotive GM-8049 CV Axle Shaft

Name: TrakMotive GM-8049 CV Axle Shaft
Brand: TrakMotive
SKU: GM8049
Price: 94.29 CAD
Availability: InStock

CV Axle Shaft

$141.48$94.29 CAD

In Stock

Ships: Today, Sep. 30th

Pick-Up: Ready in 2-3 Hours (Order before 3:30 PM)

Stock #: GM8049

Condition: New

UPC: 844084030498

Weight: 15.63 lb.(7.11 kg.)

Dimensions: 23.6" x 4.3" x 4.3" (60 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

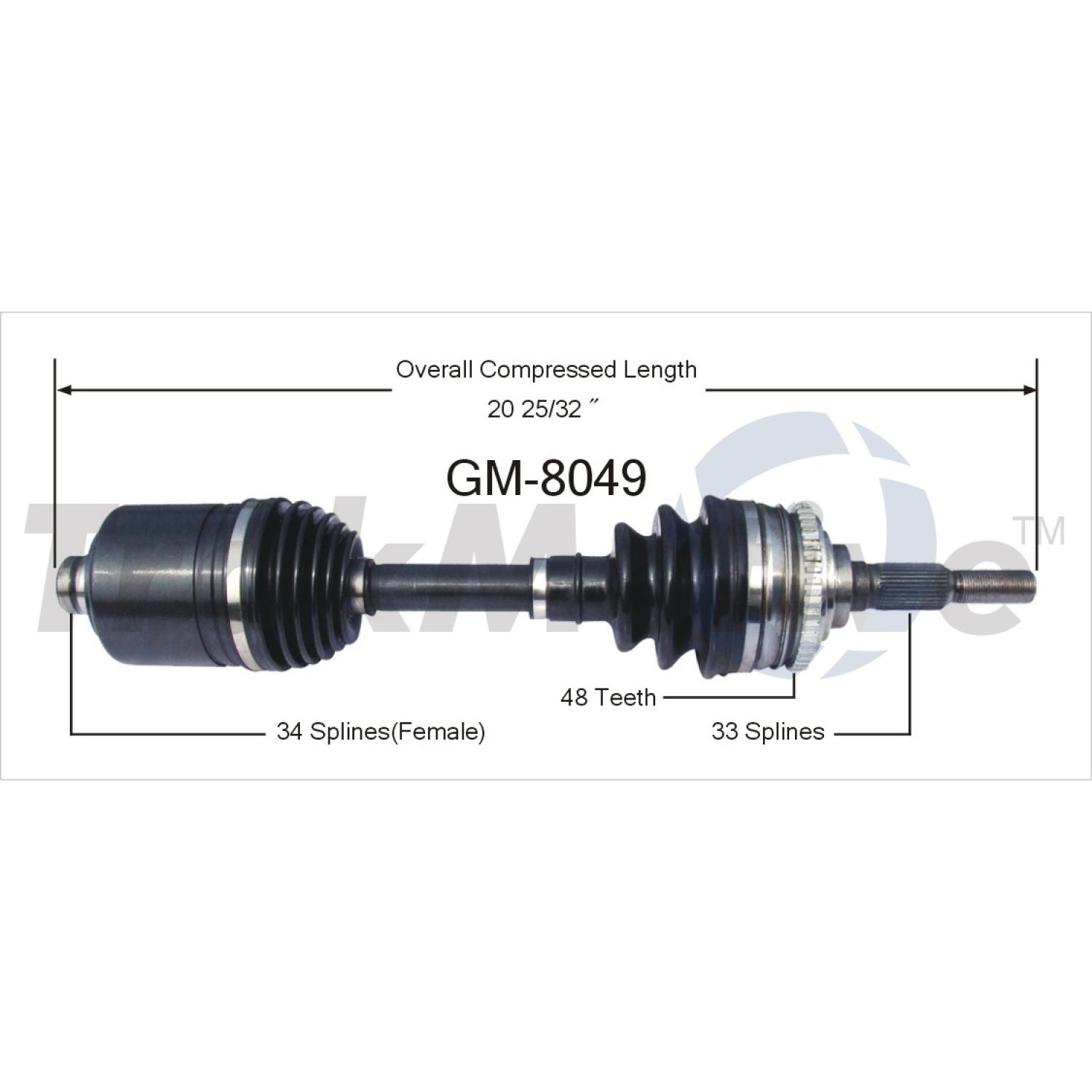

Overall Compressed Length (mm)	528
Overall Compressed Length (in)	20.79
Inboard Shaft Connection Style	Female
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	34
Number Of Outboard Splines	33
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	30
Axle Nut Thread Size	M20X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.8
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	20
Axle Nut Length (mm)	34
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.67
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	30
UPC	844084030498
Origin Country:	CN
Weight:	15.63Lb. (7.11 kg.)
Package Dimensions:	23.6" x 4.3" x 4.3" (60 cm x 11 cm x 11 cm)
