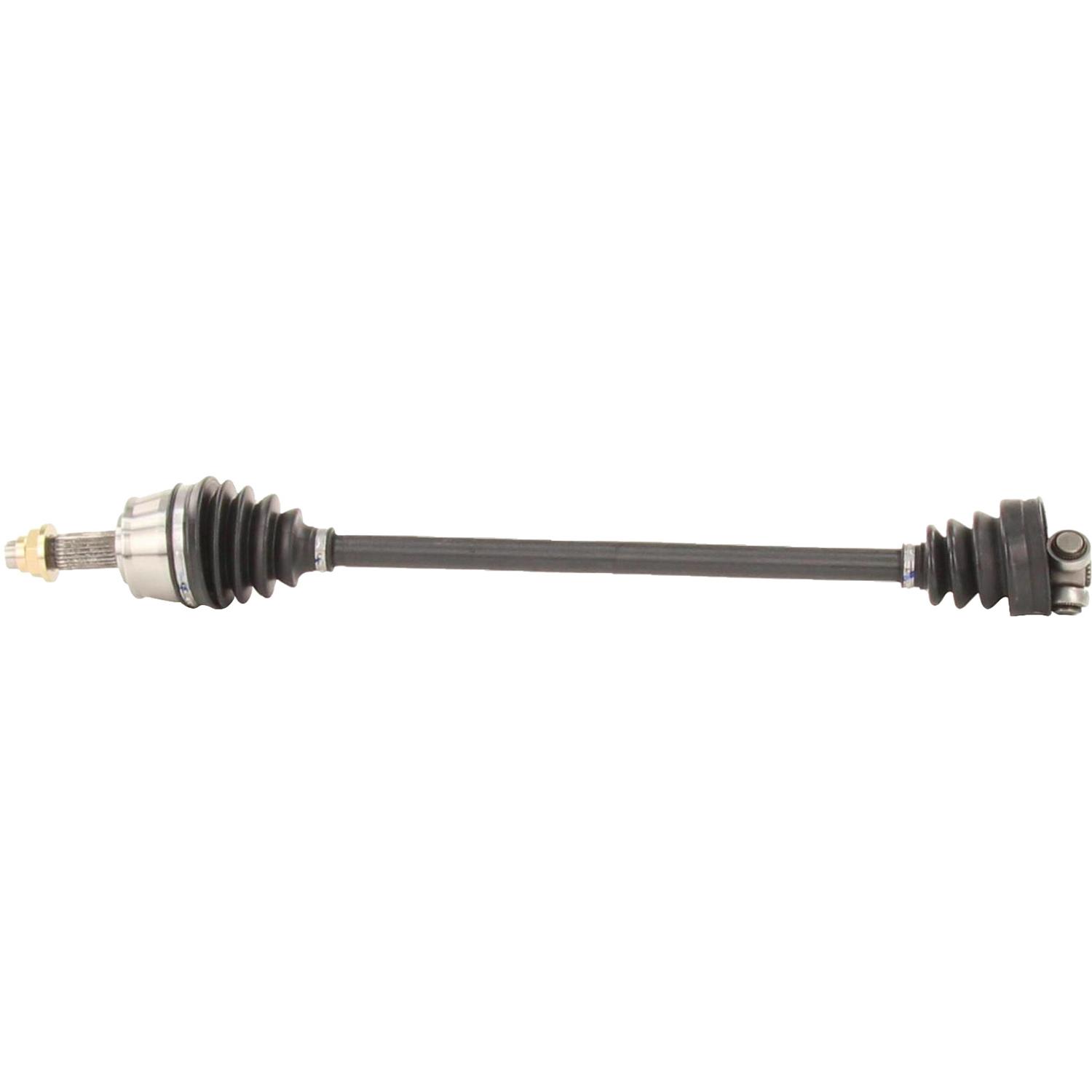

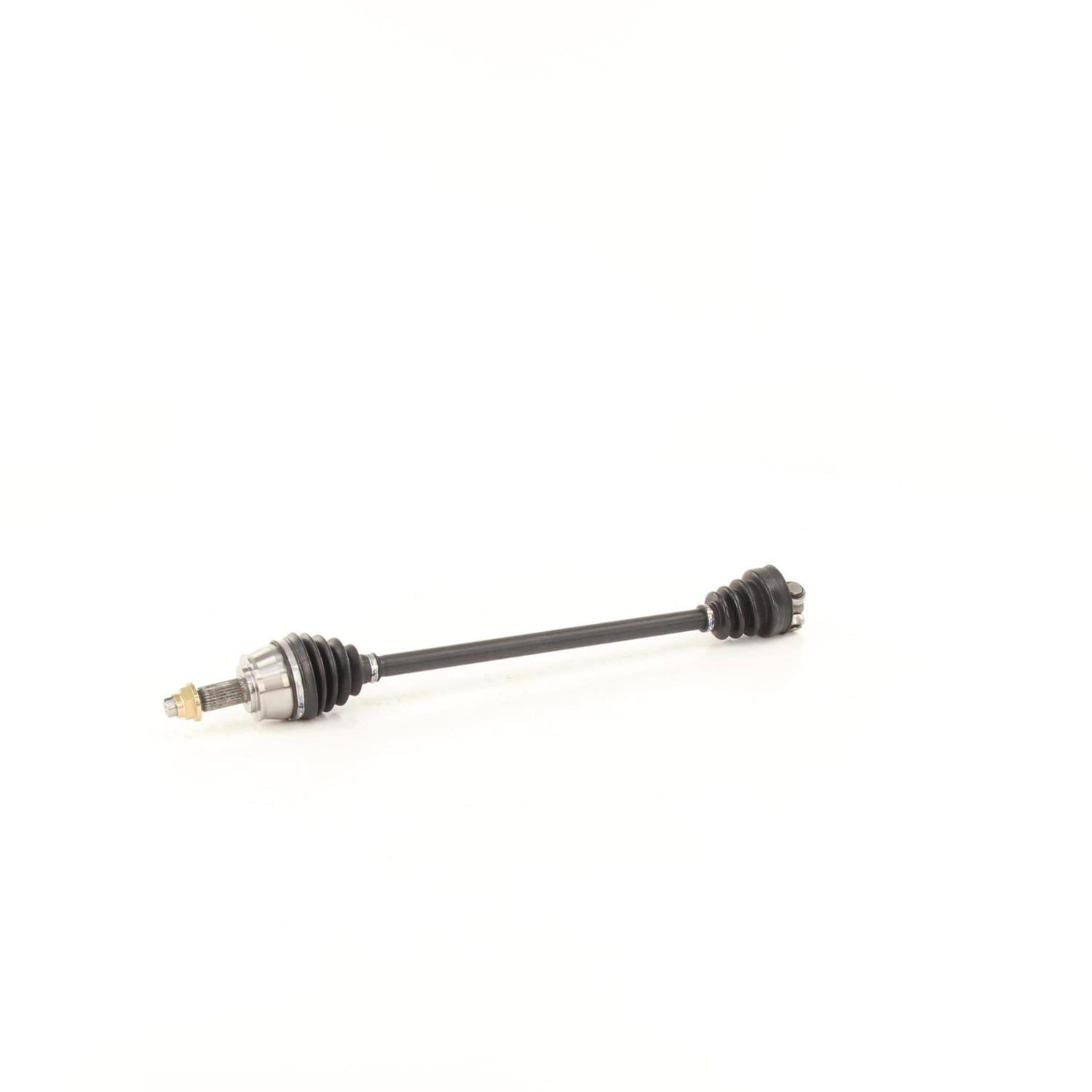

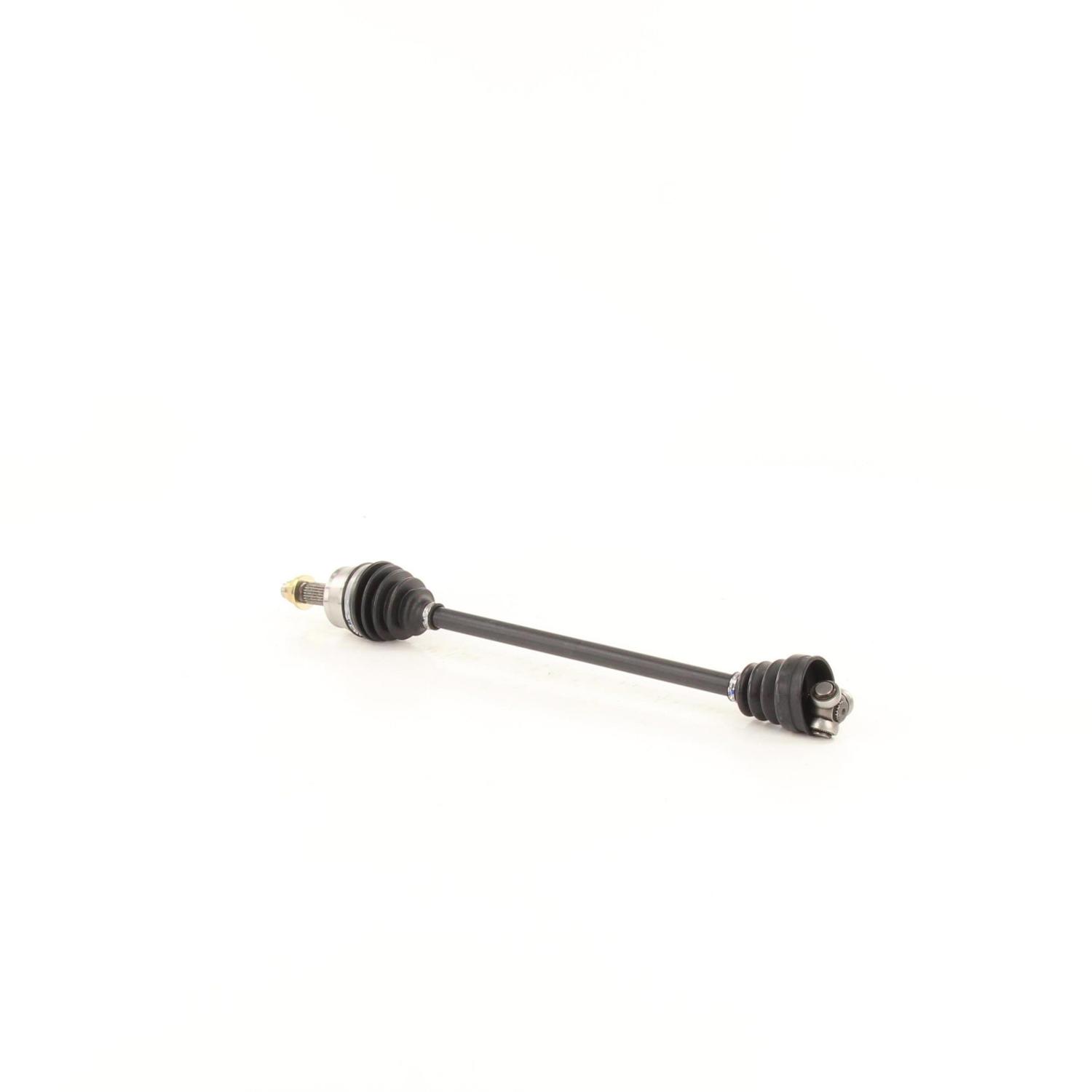

TrakMotive FI-8733 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	754
Overall Compressed Length (in)	29.69
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Outboard Splines	25
Abs Tone Ring Included	No
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.91
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	23
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.26
Inboard Joint Boot Material	Neoprene
Outboard Joint Type	CONVENTIONAL
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084089724
Origin Country:	CN
Weight:	10.96Lb. (4.99 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

1 Year Warranty
