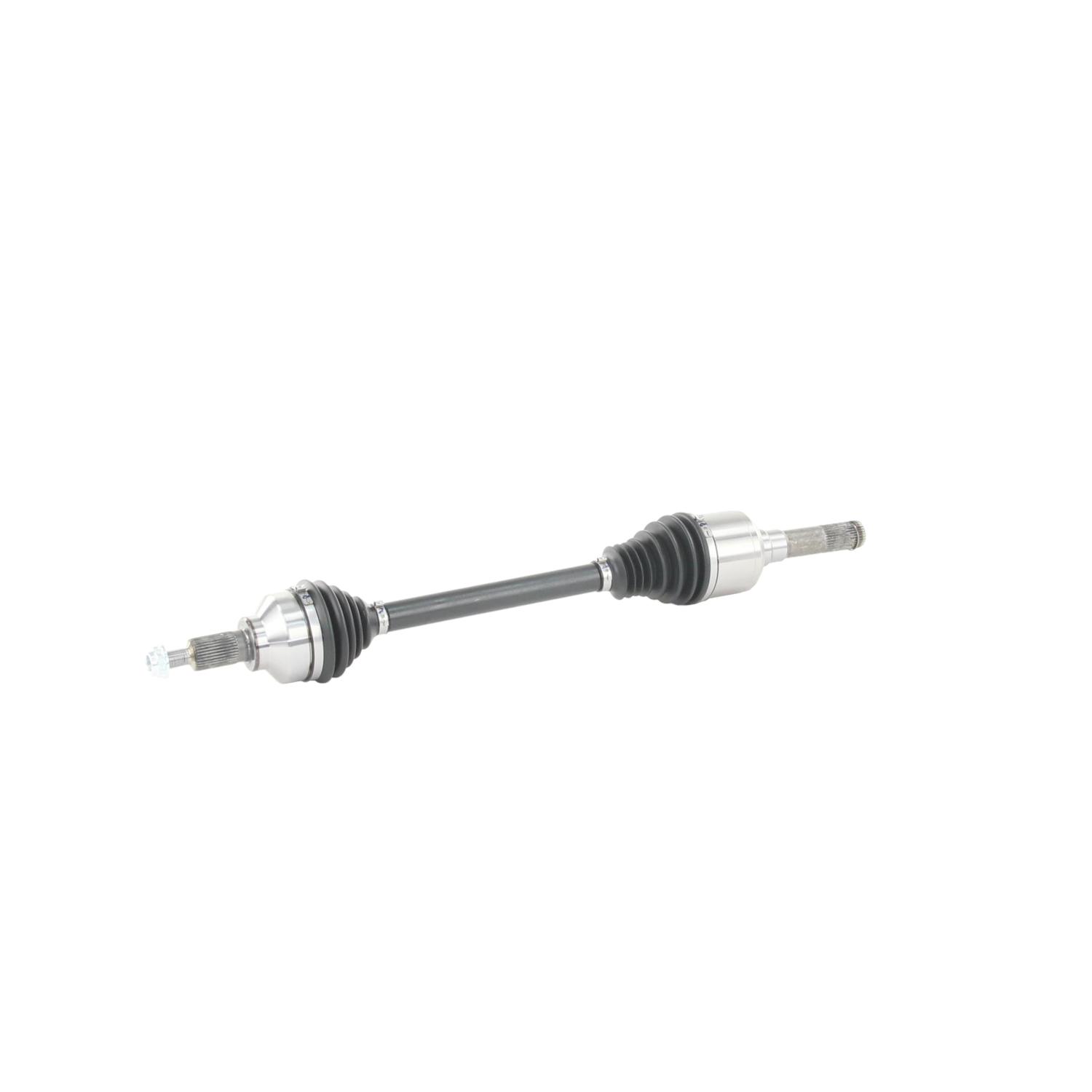

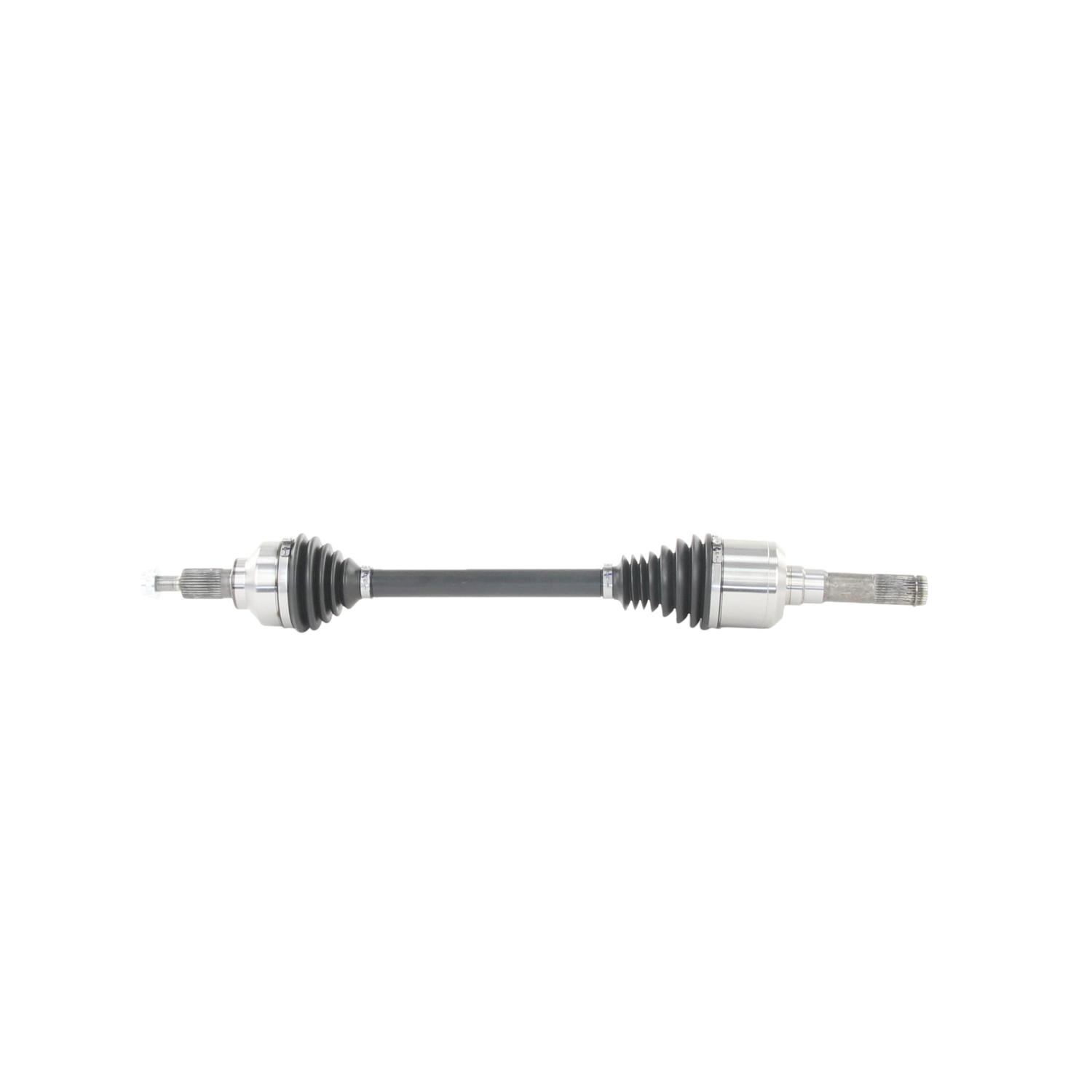

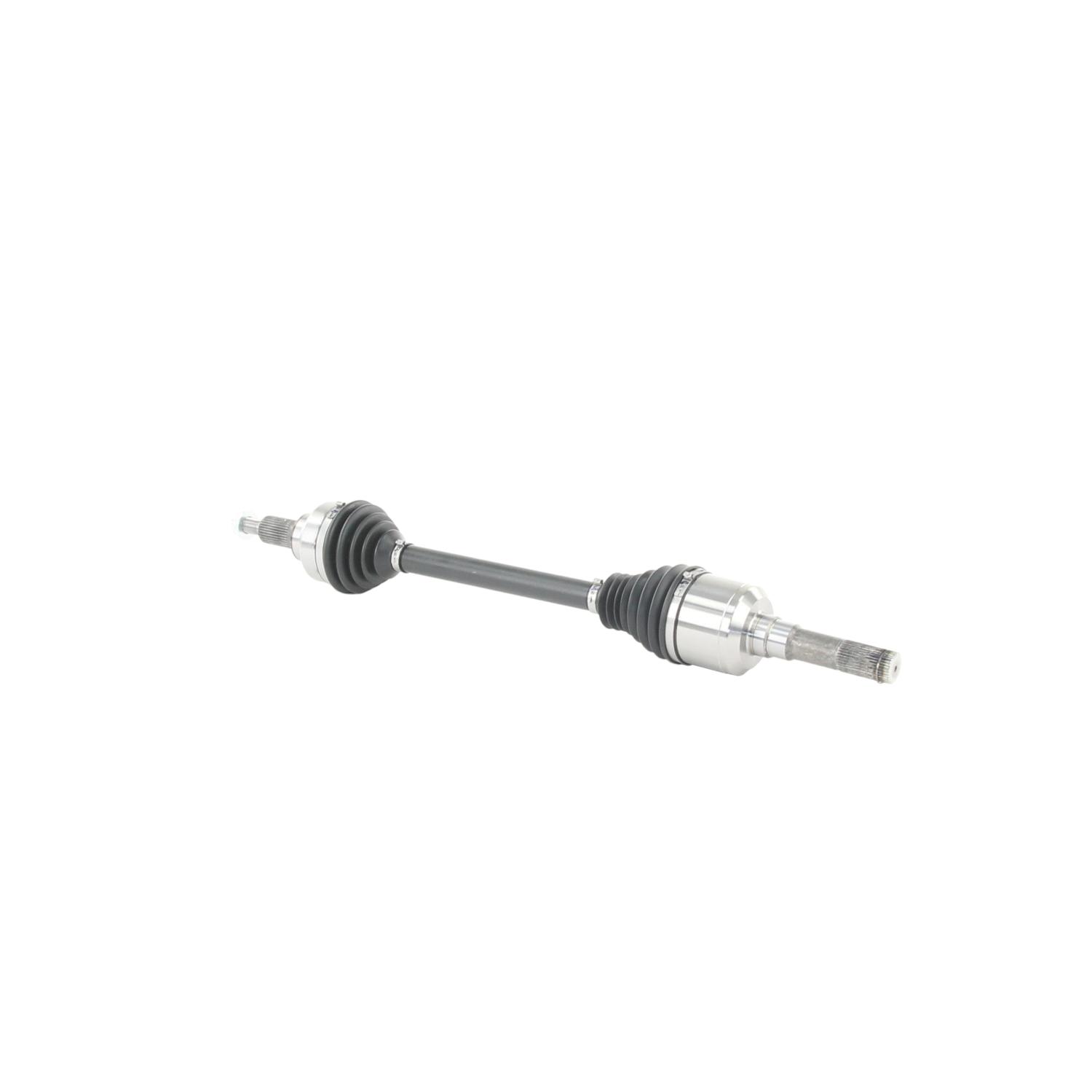

TrakMotive FD-86011 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	849
Overall Compressed Length (in)	33.44
Overall Extended Length (in)	35.25
Overall Extended Length (mm)	895
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	34
Number Of Outboard Splines	33
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	34
Axle Nut Thread Size	M20X1.5
Axle Nut Head Type	Dodec
Axle Nut Height (in)	.69
Axle Nut Length (in)	1.56
Axle Nut Height (mm)	17
Axle Nut Length (mm)	40
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.31
Number Of Bolt Holes	0
Inboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	34
UPC	00840140508420
Origin Country:	CN
Weight:	29.84Lb. (13.56 kg.)
Package Dimensions:	39" x 5.1" x 5.1" (99 cm x 13 cm x 13 cm)

1 Year Warranty
