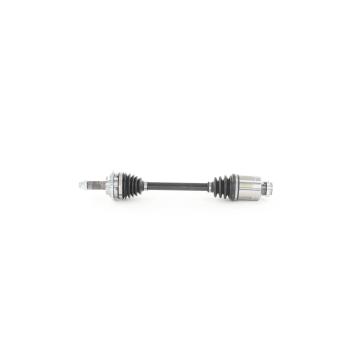

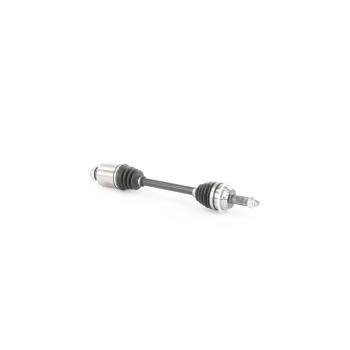

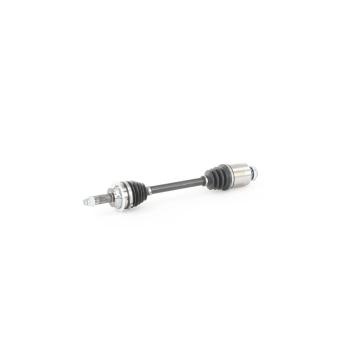

TrakMotive FD-86002 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	599
Overall Compressed Length (in)	23.56
Overall Extended Length (in)	25.75
Overall Extended Length (mm)	654
Number Of Inboard Splines	28
Number Of Outboard Splines	28
Abs Tone Ring Included	No
ABS Ring Tooth Count	44
Abs Ring Type	Toothed
Axle Nut Included	No
Axle Nut Hex Size (mm)	32
Axle Nut Height (mm)	20
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Outboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140507638
Origin Country:	CN
Weight:	14.77Lb. (6.72 kg.)
Package Dimensions:	26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)

1 Year Warranty
