TrakMotive FD-8323 CV Axle Shaft

Name: TrakMotive FD-8323 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-fd8323
Price: 176.41 CAD
Availability: InStock

AAR CV Axle Shaft

$176.41 CAD

10+ In Stock

Ships: Today, Oct. 7th

Pick-Up: Ready in 2-3 Hours (Order before 3:30 PM)

Stock #: FD8323

Condition: New

UPC: 00844084031549

Weight: 16.26 lb.(7.39 kg.)

Dimensions: 31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

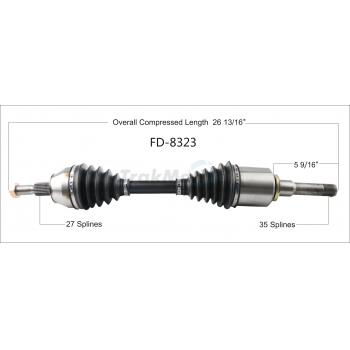

Overall Compressed Length (mm)	682
Overall Compressed Length (in)	26.83
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	35
Number Of Outboard Splines	27
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.59
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	15
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.26
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084031549
Origin Country:	CN
Weight:	16.26Lb. (7.39 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)
