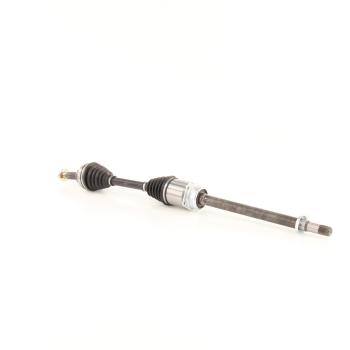

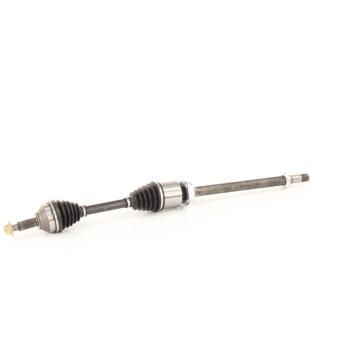

TrakMotive FD-8317 CV Axle Shaft

Name: TrakMotive FD-8317 CV Axle Shaft
Brand: TrakMotive
SKU: FD8317
Price: 239.18 CAD
Availability: InStock

AAR CV Axle Shaft

$239.18

In Stock

Ships: Monday Oct. 6th

Pick-Up: Ready in 2-3 Hours Monday Oct. 6th

Stock #: FD8317

Condition: New

UPC: 00844084030009

Weight: 26.62 lb.(12.1 kg.)

Dimensions: 45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

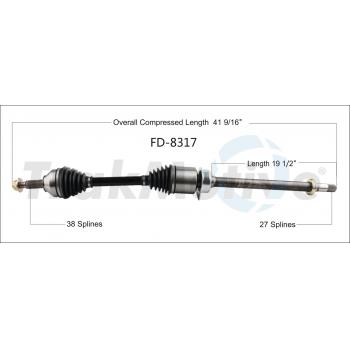

Overall Compressed Length (mm)	1056
Overall Compressed Length (in)	41.57
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	38
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.83
Axle Nut Length (in)	1.35
Axle Nut Height (mm)	22
Axle Nut Length (mm)	35
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084030009
Origin Country:	CN
Weight:	26.62Lb. (12.1 kg.)
Package Dimensions:	45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)
