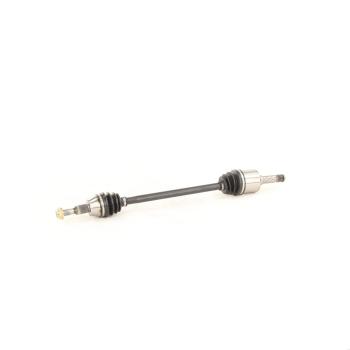

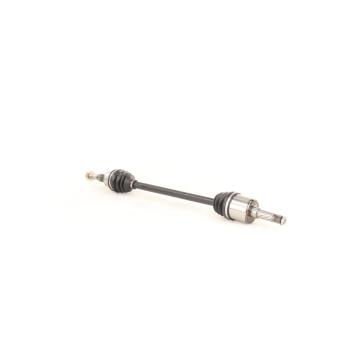

TrakMotive FD-8226 CV Axle Shaft

class="product_image_primary" alt="TrakMotive FD8226 CV Axle Shaft product image 2 of 3" title="TrakMotive FD8226 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive FD8226 CV Axle Shaft product image 3 of 3" title="TrakMotive FD8226 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$233.97$130.25 CAD

In Stock

Ships: Monday Oct. 13th

Pick-Up: Ready in 1 Hour (Order before 12:00 PM)

Brand: TrakMotive

Stock #: FD8226

Condition: New

UPC: 844084022264

Weight: 14.83 lb.(6.74 kg.)

Dimensions: 37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	821
Overall Compressed Length (in)	32.32
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	25
Number Of Outboard Splines	27
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.75
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	19
Axle Nut Length (mm)	35
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084022264
Origin Country:	CN
Weight:	14.83Lb. (6.74 kg.)
Package Dimensions:	37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)
