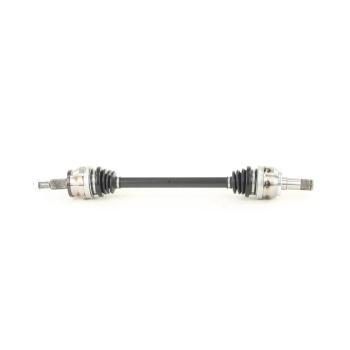

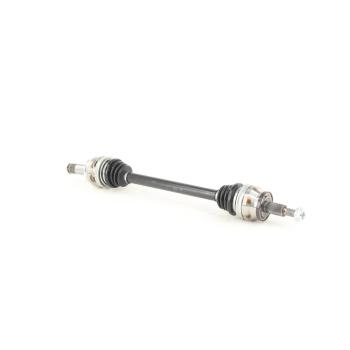

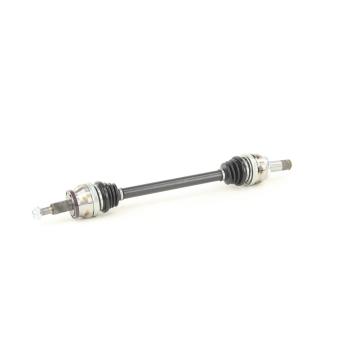

TrakMotive CH-8362 CV Axle Shaft

class="product_image_primary" alt="TrakMotive CH8362 CV Axle Shaft product image 2 of 3" title="TrakMotive CH8362 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive CH8362 CV Axle Shaft product image 3 of 3" title="TrakMotive CH8362 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$196.10 CAD

In Stock

Ships: Monday Oct. 13th

Free Delivery

Pick-Up: Ready in 2-3 Hours (Order before 11:00 AM)

Brand: TrakMotive

Stock #: CH8362

Condition: New

UPC: 00840140504309

Weight: 21.15 lb.(9.61 kg.)

Dimensions: 37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	814
Overall Compressed Length (in)	32.05
Overall Extended Length (in)	35.2
Overall Extended Length (mm)	894
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	31
Number Of Outboard Splines	32
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Magnetic
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.74
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	19
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140504309
Origin Country:	CN
Weight:	21.15Lb. (9.61 kg.)
Package Dimensions:	37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)
