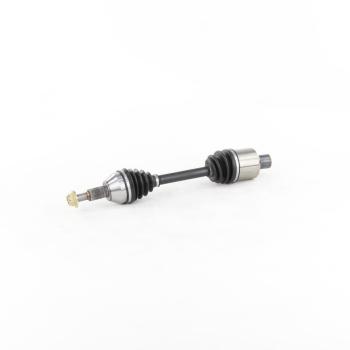

TrakMotive CH-8234 CV Axle Shaft

class="product_image_primary" alt="TrakMotive CH8234 CV Axle Shaft product image 2 of 3" title="TrakMotive CH8234 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive CH8234 CV Axle Shaft product image 3 of 3" title="TrakMotive CH8234 - CV Axle Shaft" fetchpriority="low">

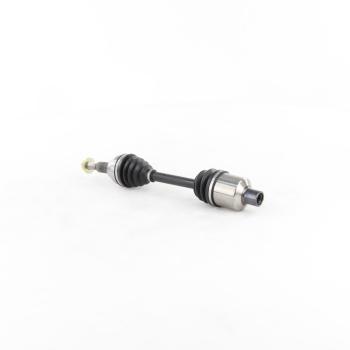

TrakMotive CH8234 CV Axle Shaft product image 3 of 3

AAR CV Axle Shaft

$205.57$132.34 CAD

10+ In Stock

Ships: Monday Oct. 13th

Pick-Up: Ready in 1 Hour (Order before 12:00 PM)

Brand: TrakMotive

Stock #: CH8234

Condition: New

UPC: 844084012340

Weight: 15.71 lb.(7.14 kg.)

Dimensions: 26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

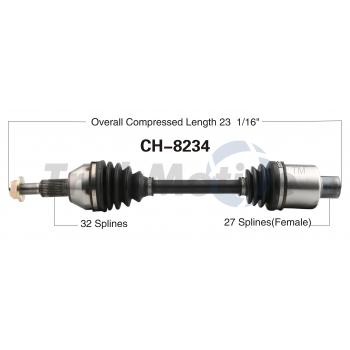

Overall Compressed Length (mm)	586
Overall Compressed Length (in)	23.07
Inboard Shaft Connection Style	Female
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	32
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.83
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	22
Axle Nut Length (mm)	35
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084012340
Origin Country:	CN
Weight:	15.71Lb. (7.14 kg.)
Package Dimensions:	26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)
