TrakMotive CH-8040 CV Axle Shaft

class="product_image_primary" alt="TrakMotive CH8040 CV Axle Shaft product image 2 of 3" title="TrakMotive CH8040 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive CH8040 CV Axle Shaft product image 3 of 3" title="TrakMotive CH8040 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$188.47$126.85 CAD

In Stock

Ships: Monday Oct. 13th

Pick-Up: Ready in 2-3 Hours Monday Oct. 13th

Brand: TrakMotive

Stock #: CH8040

Condition: New

UPC: 844084010407

Weight: 19.98 lb.(9.08 kg.)

Dimensions: 45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

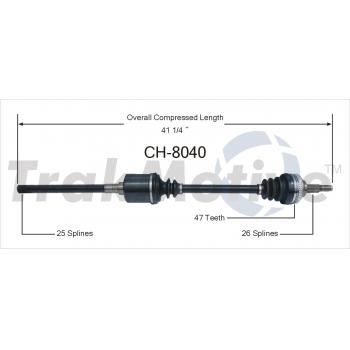

Overall Compressed Length (mm)	1048
Overall Compressed Length (in)	41.26
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	25
Number Of Outboard Splines	26
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	47
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.71
Axle Nut Length (in)	2.14
Axle Nut Height (mm)	18
Axle Nut Length (mm)	55
Axle Nut Locking Type	Cotter Pin
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084010407
Origin Country:	CN
Weight:	19.98Lb. (9.08 kg.)
Package Dimensions:	45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)
