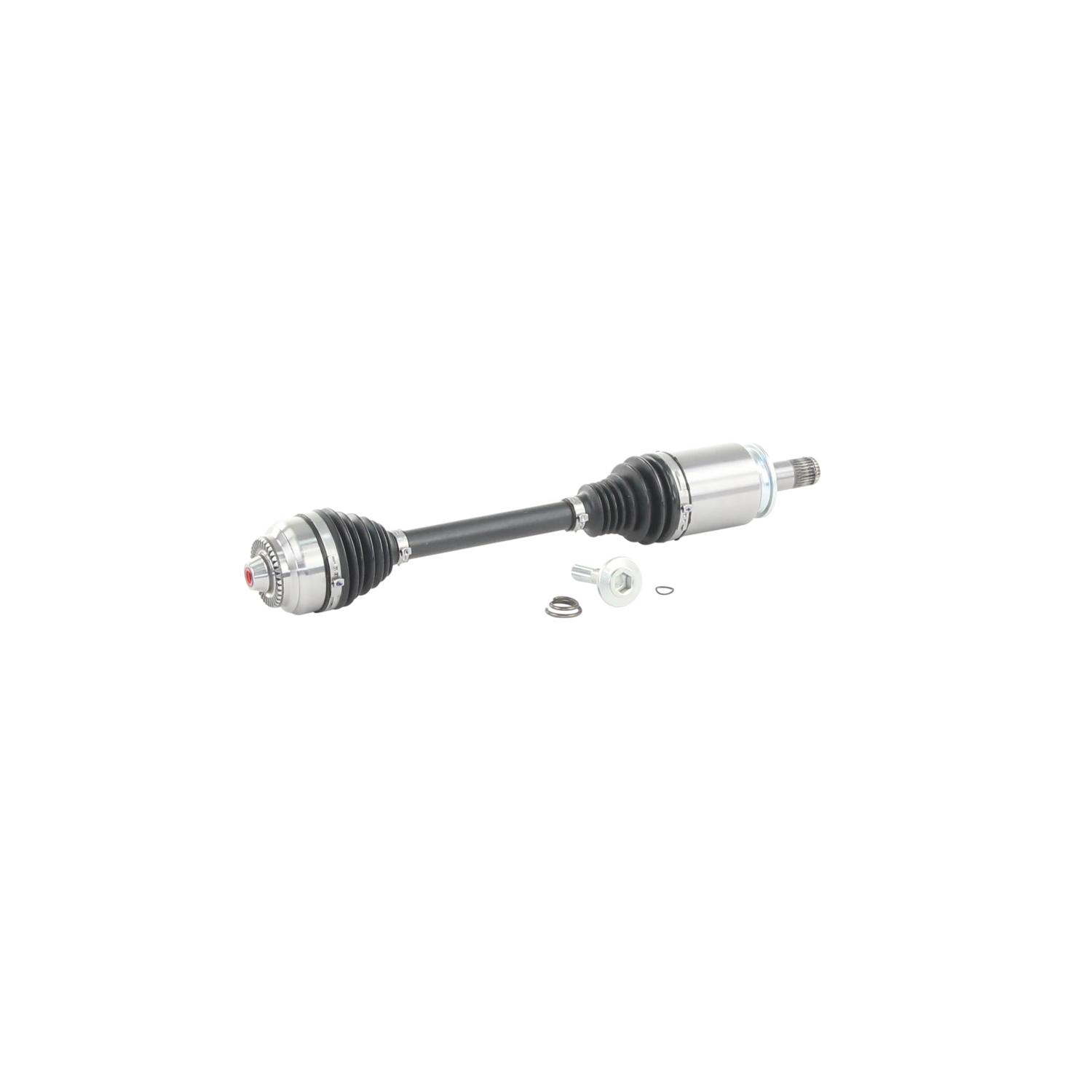

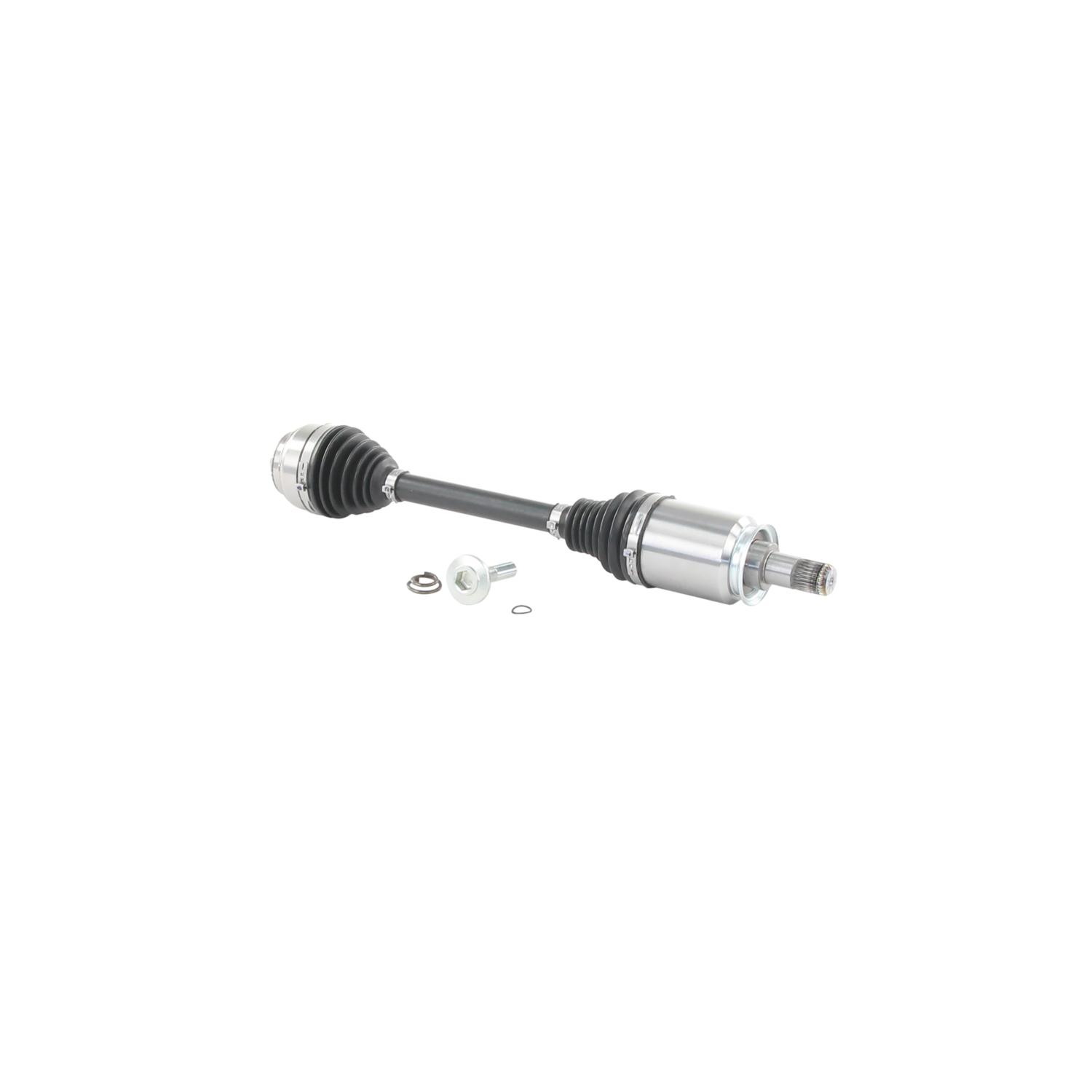

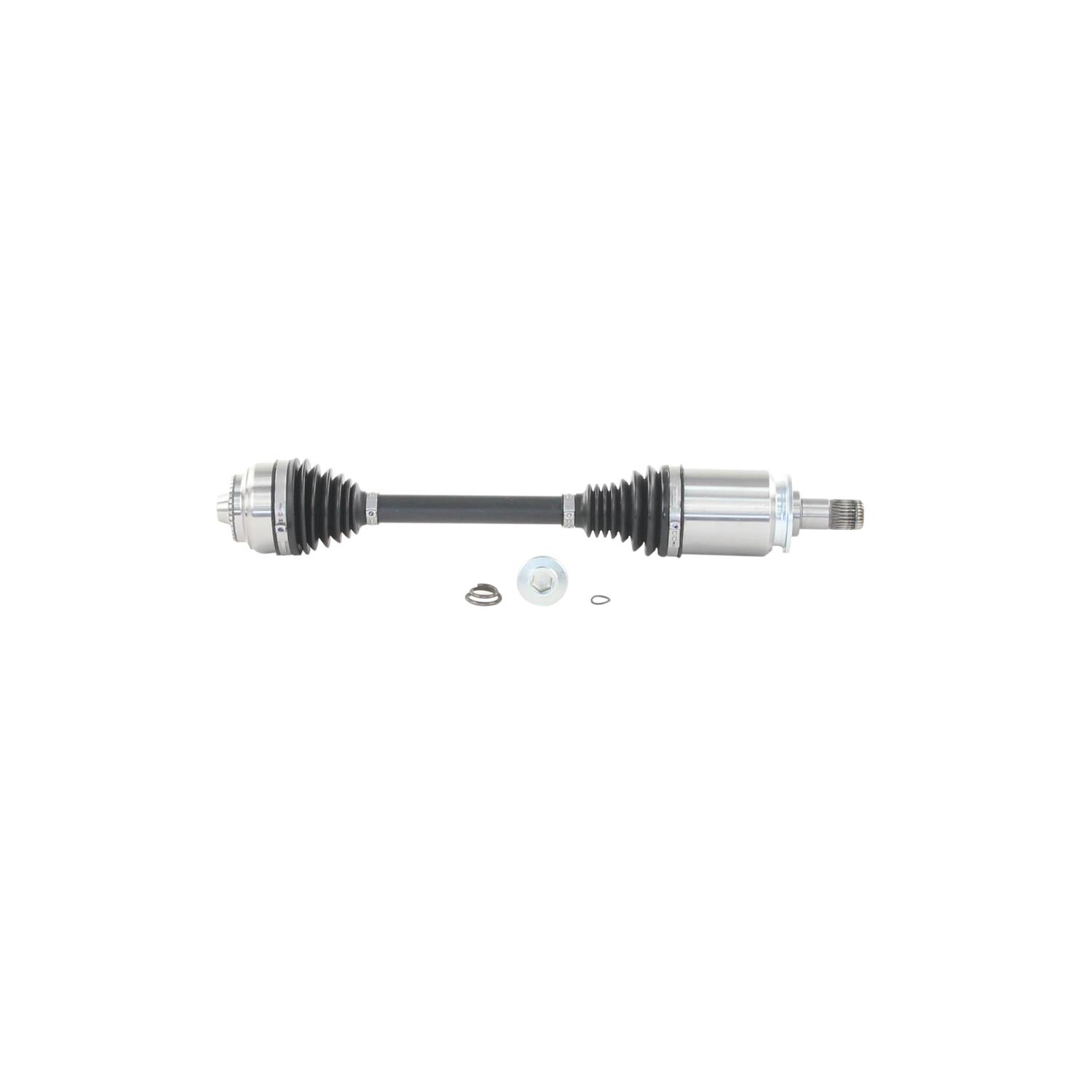

TrakMotive BM-86017 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	570
Overall Compressed Length (in)	22.44
Number Of Inboard Splines	27
Number Of Outboard Splines	37
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Number Of Bolt Holes	0
Axle Bolt Length (mm)	83
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	17
Inboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	Flat Spline
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	1
Grade Type	Premium
UPC	00840140510768
Origin Country:	CN
Weight:	13.8Lb. (6.28 kg.)
Package Dimensions:	26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)

1 Year Warranty

TrakMotive BM-86017 CV Axle Shaft
