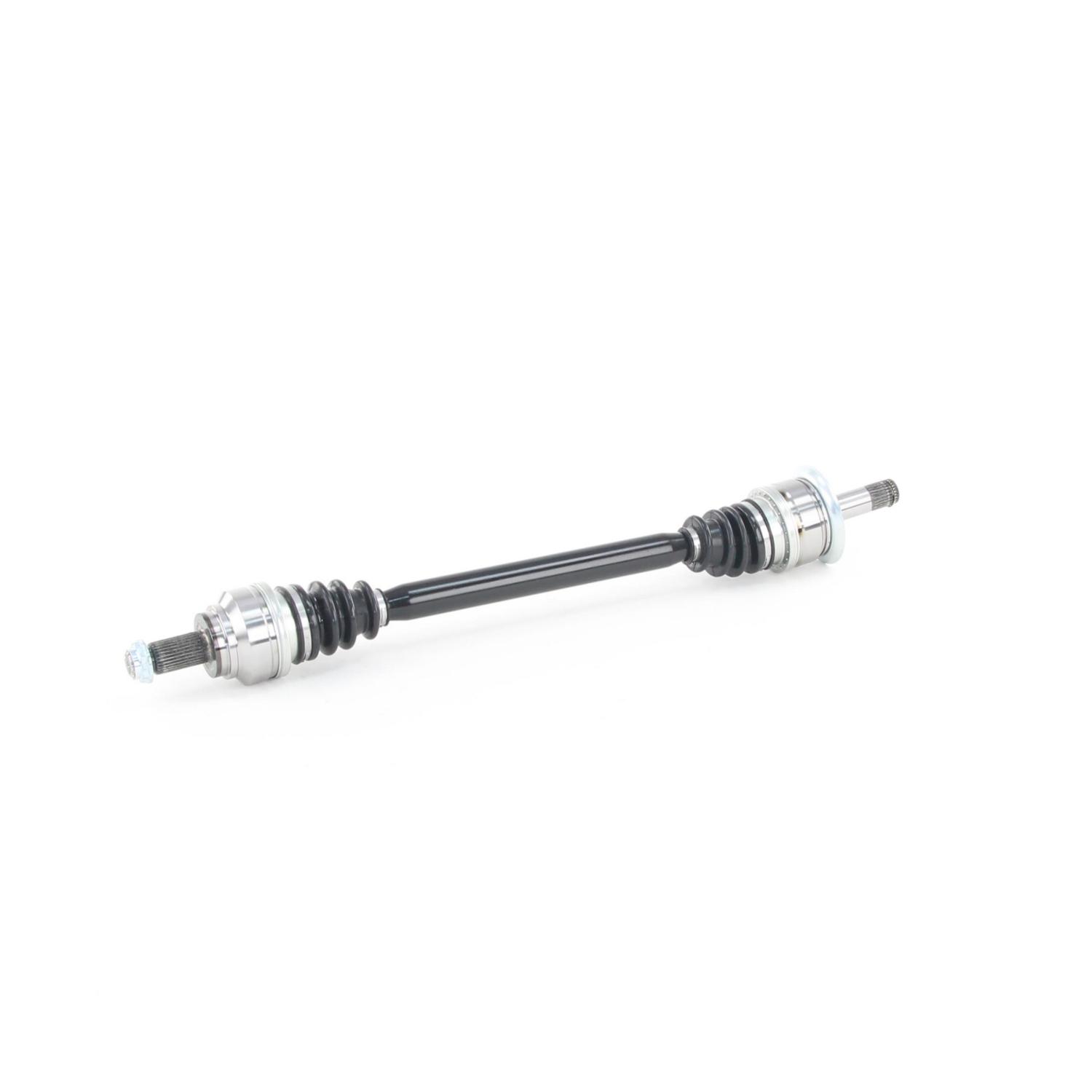

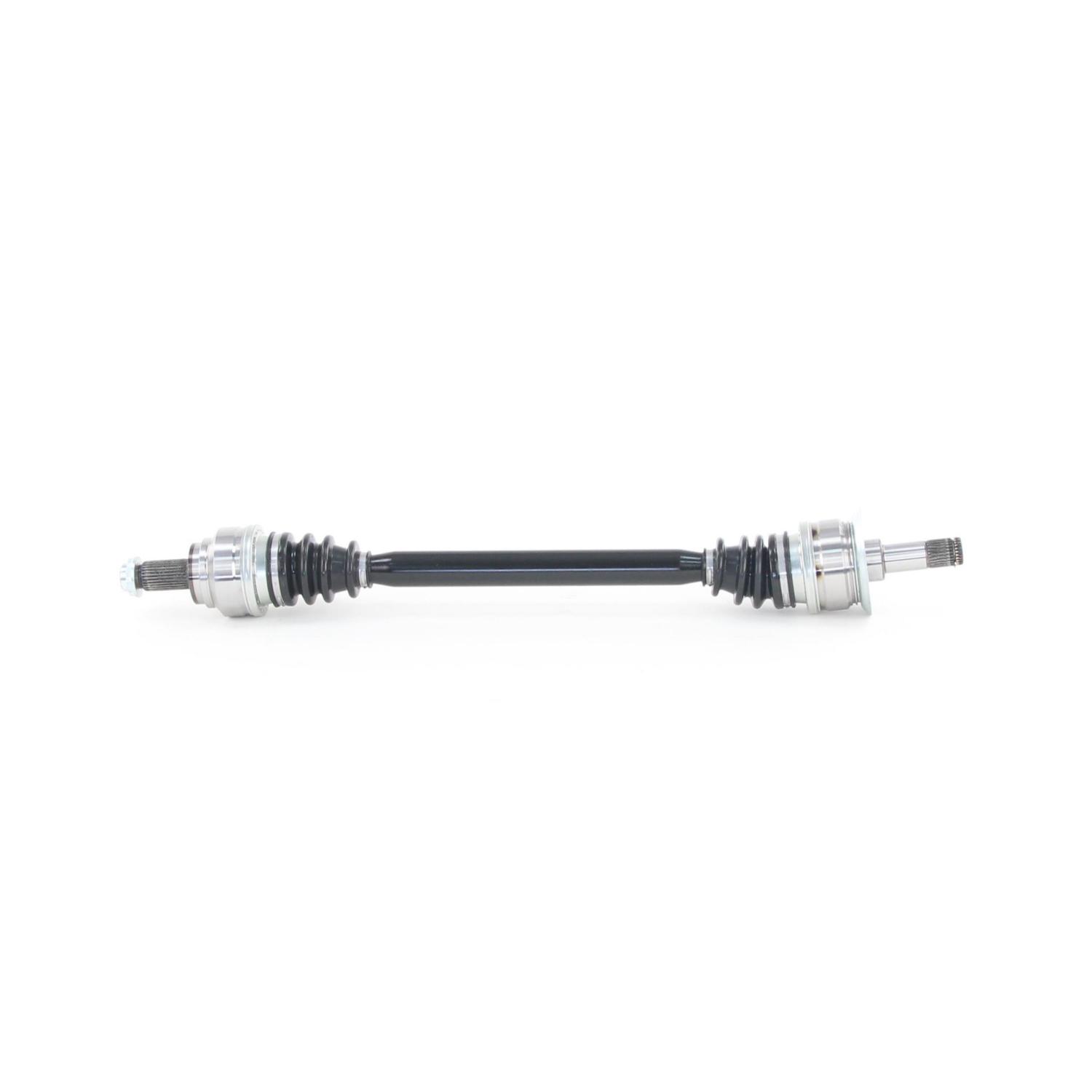

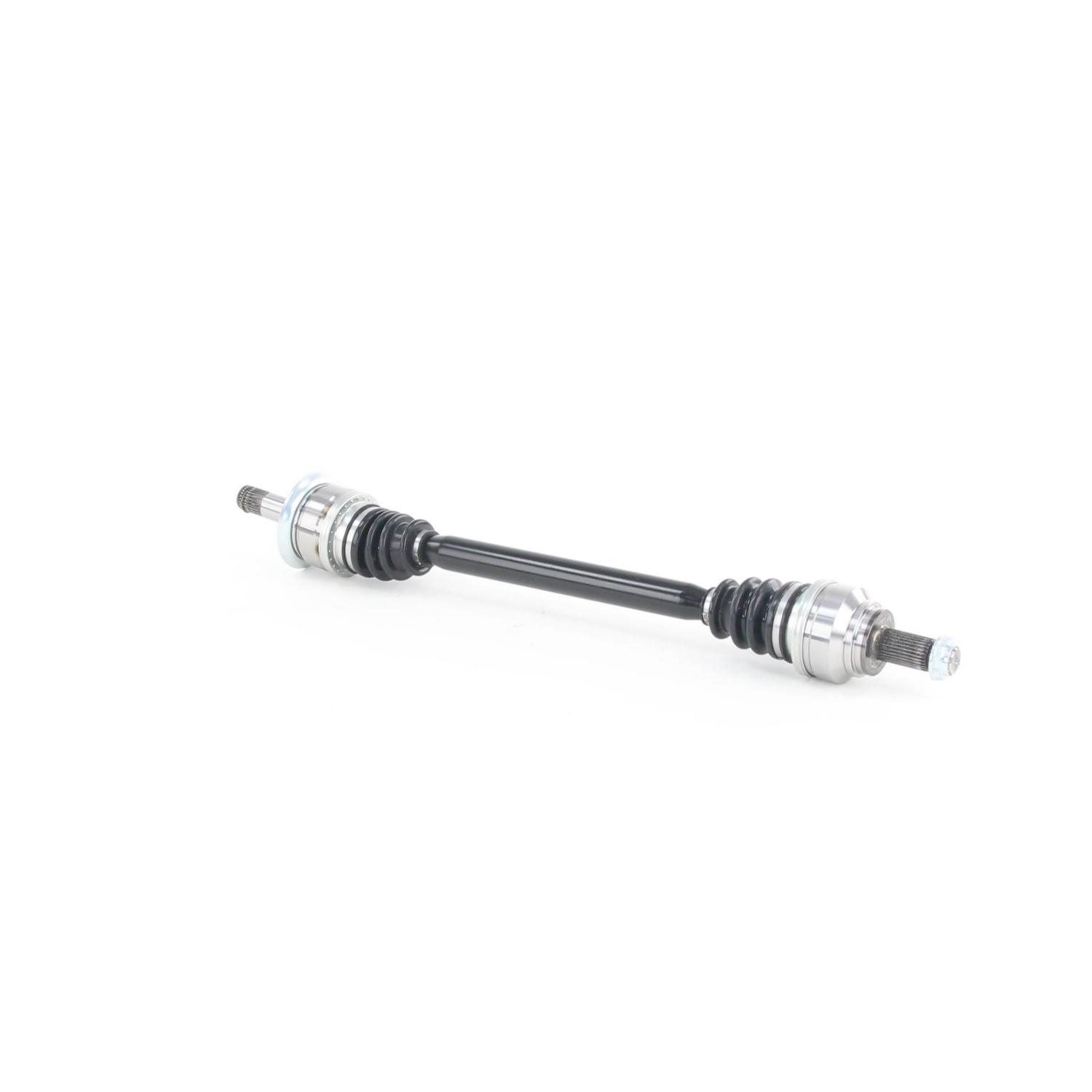

TrakMotive BM-8183 CV Axle Shaft

CV Axle Shaft

$397.34 CAD

In Stock

Ships: Tuesday Oct. 14th

Pick-Up: Ready in 2-3 Hours (Order before 3:30 PM)

Stock #: BM8183

Condition: New

UPC: 00195013072981

Weight: 17.06 lb.(7.76 kg.)

Dimensions: 45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	817
Overall Compressed Length (in)	32.17
Overall Extended Length (in)	35.31
Overall Extended Length (mm)	897
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	30
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	36
Axle Nut Thread Size	M27X1.5
Axle Nut Head Type	Hex
Axle Nut Height (mm)	16
Axle Nut Length (mm)	41
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.4
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	36
UPC	00195013072981
Origin Country:	CN
Weight:	17.06Lb. (7.76 kg.)
Package Dimensions:	45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)
