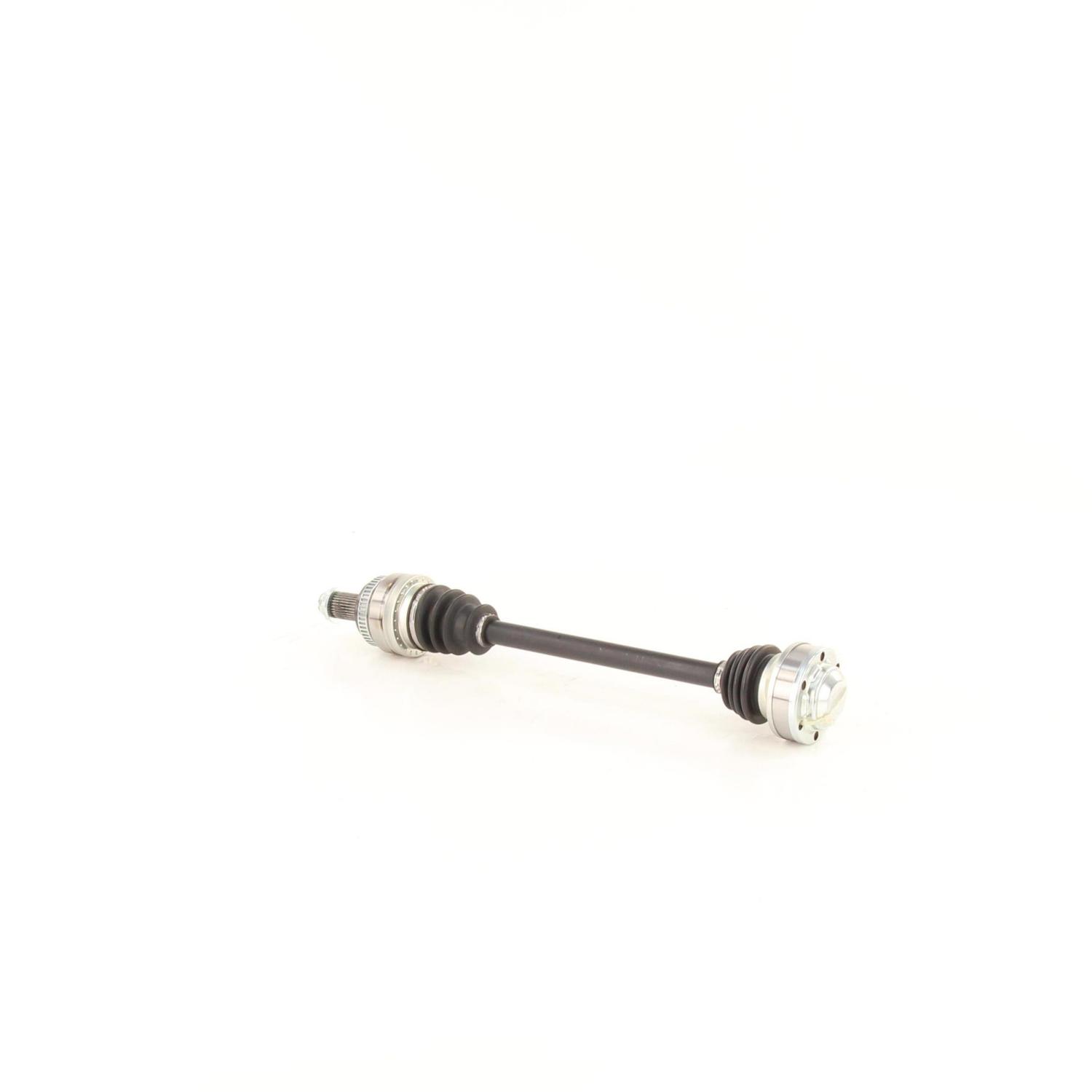

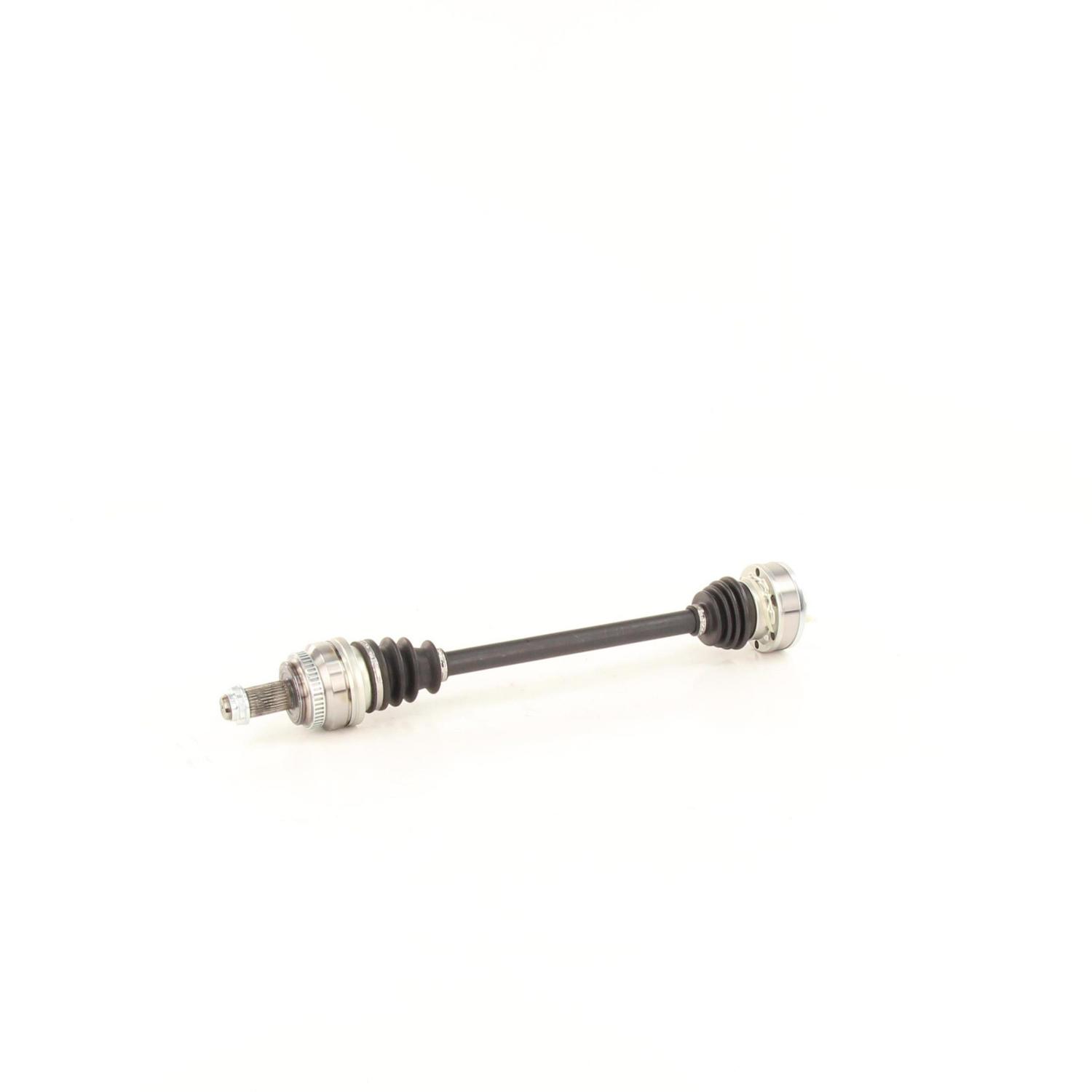

TrakMotive BM-8168 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

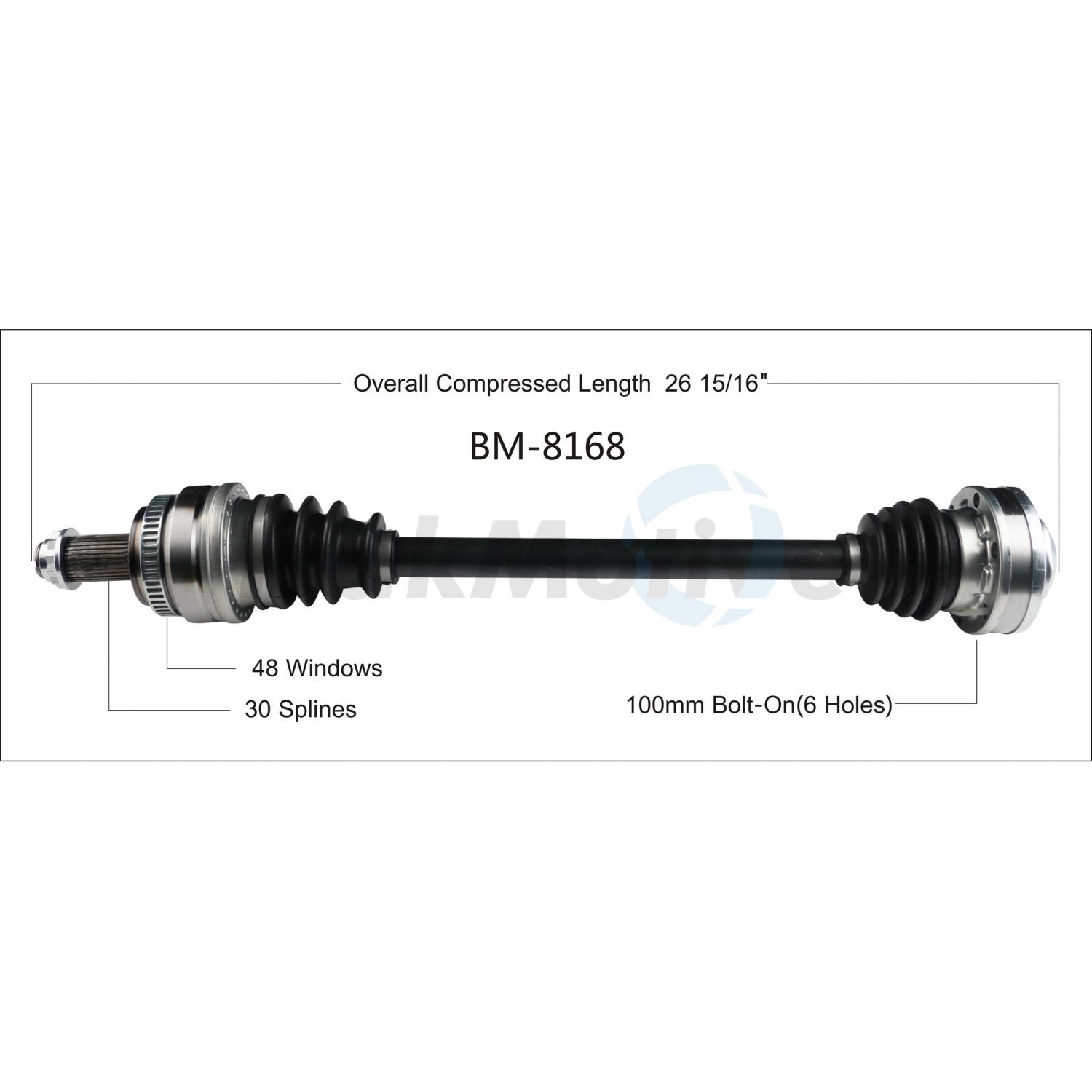

Overall Compressed Length (mm)	684
Overall Compressed Length (in)	26.93
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	30
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Window
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	36
Axle Nut Thread Size	M27X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.63
Axle Nut Length (in)	1.61
Axle Nut Height (mm)	16
Axle Nut Length (mm)	41
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.4
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	8
Inboard Bolt Head Size (in)	.31
Inboard Bolt Length (mm)	55
Inboard Bolt Length (in)	2.17
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Bolt-on
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	36
UPC	00844084049728
Origin Country:	CN
Weight:	16.35Lb. (7.43 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

1 Year Warranty
