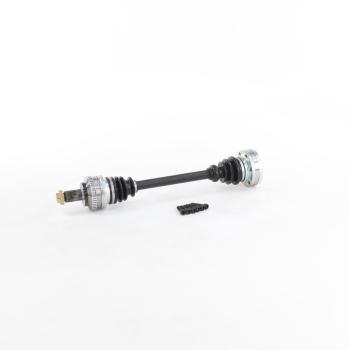

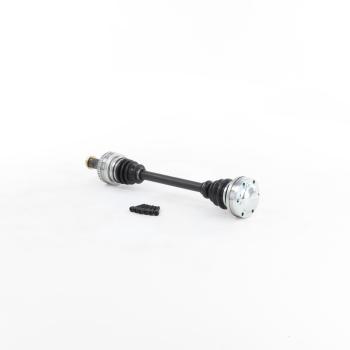

TrakMotive BM-8050 CV Axle Shaft

class="product_image_primary" alt="TrakMotive BM8050 CV Axle Shaft product image 2 of 3" title="TrakMotive BM8050 - CV Axle Shaft" fetchpriority="low"> class="product_image_primary" alt="TrakMotive BM8050 CV Axle Shaft product image 3 of 3" title="TrakMotive BM8050 - CV Axle Shaft" fetchpriority="low">

CV Axle Shaft

$330.42$224.87 CAD

Limited Stock

Ships: Next Business Day

Free Delivery

Pick-Up: Next Business Day

Brand: TrakMotive

Stock #: BM8050

Condition: New

UPC: 844084005502

Weight: 17.89 lb.(8.13 kg.)

Dimensions: 26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

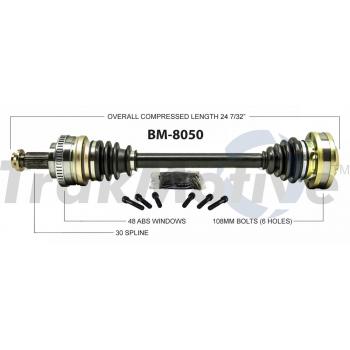

Overall Compressed Length (mm)	615
Overall Compressed Length (in)	24.21
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	30
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Window
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	36
Axle Nut Thread Size	M27X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.63
Axle Nut Length (in)	1.6
Axle Nut Height (mm)	16
Axle Nut Length (mm)	41
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.4
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	8
Inboard Bolt Head Size (in)	.33
Inboard Bolt Length (mm)	55
Inboard Bolt Length (in)	2.17
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Bolt-on
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	36
UPC	844084005502
Origin Country:	CN
Weight:	17.89Lb. (8.13 kg.)
Package Dimensions:	26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)
