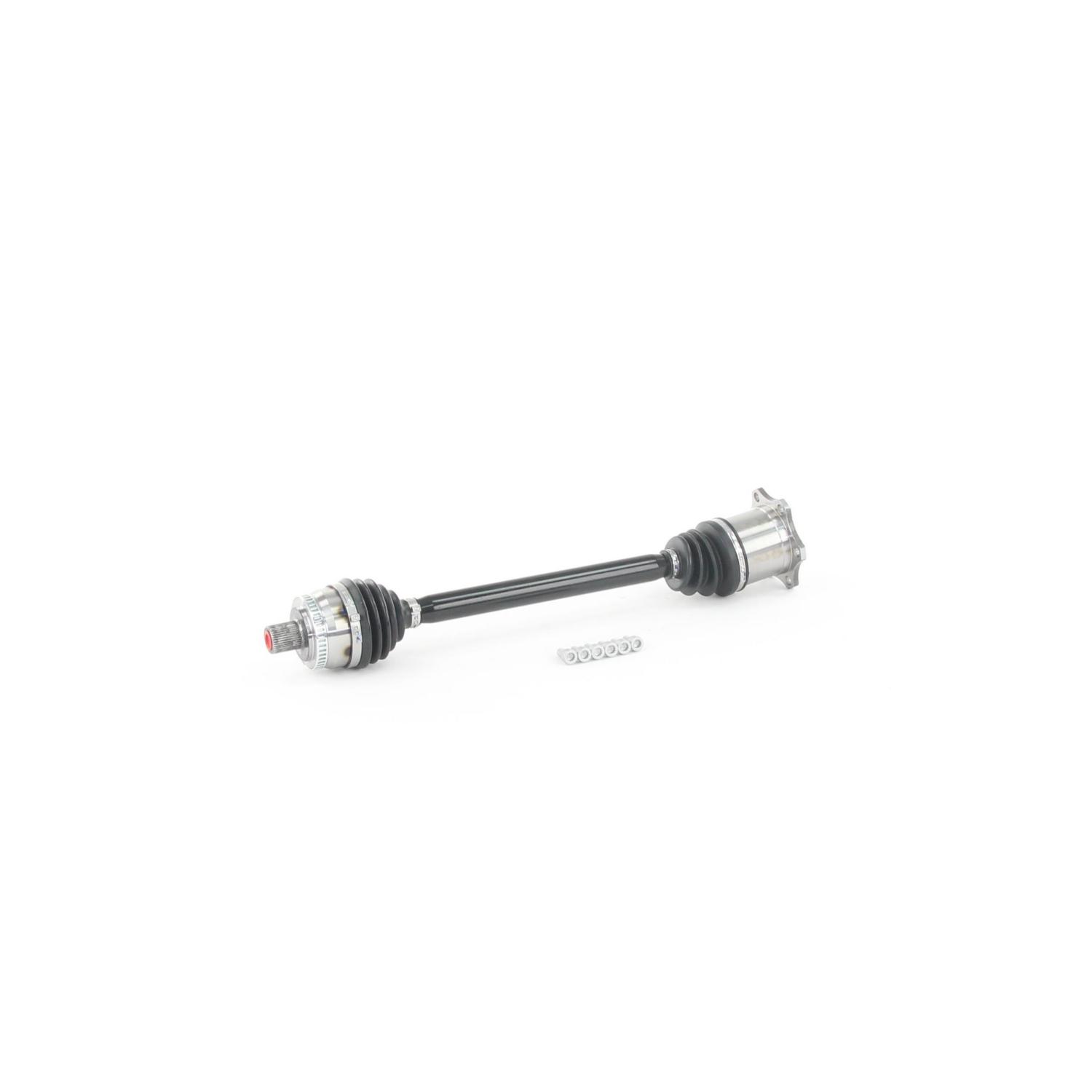

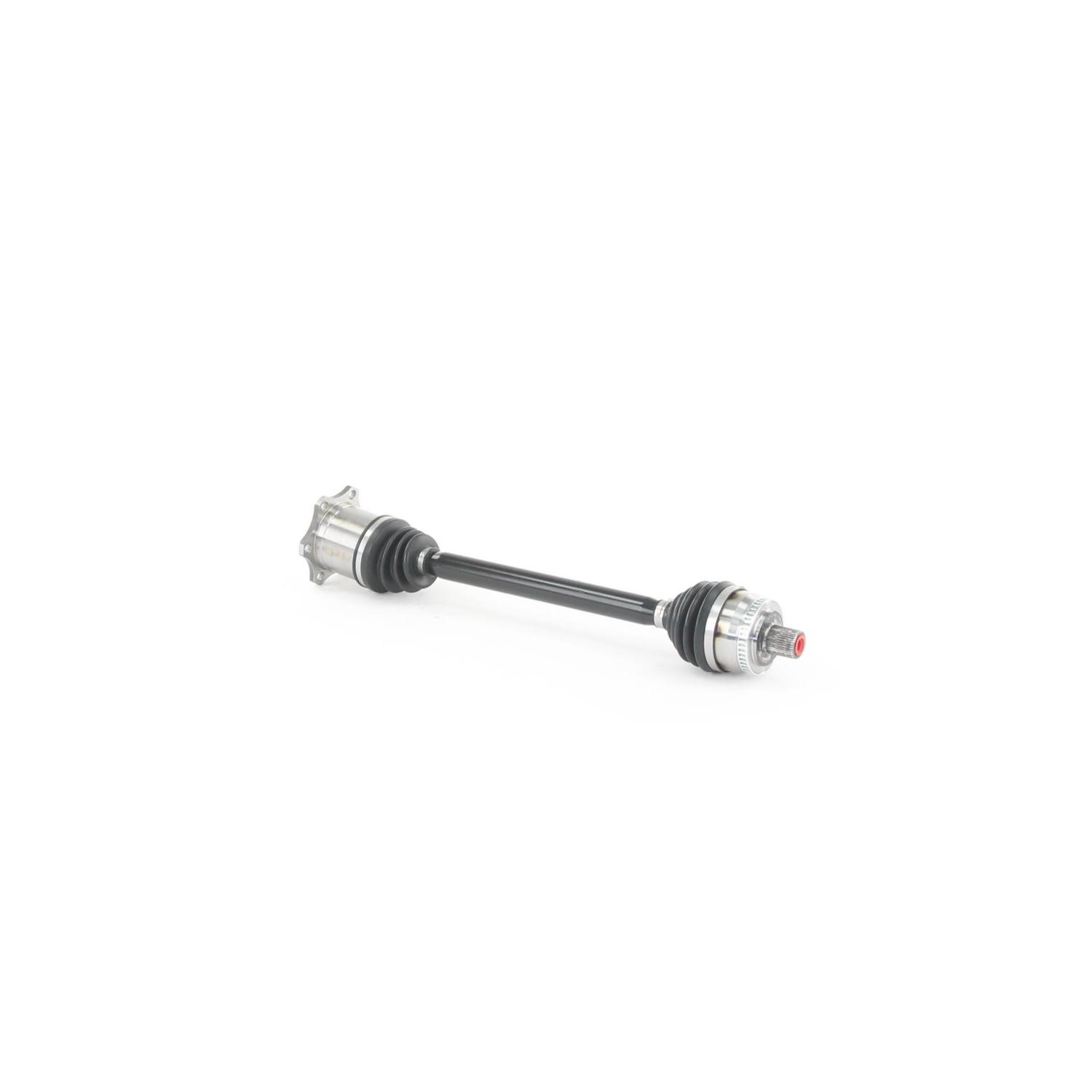

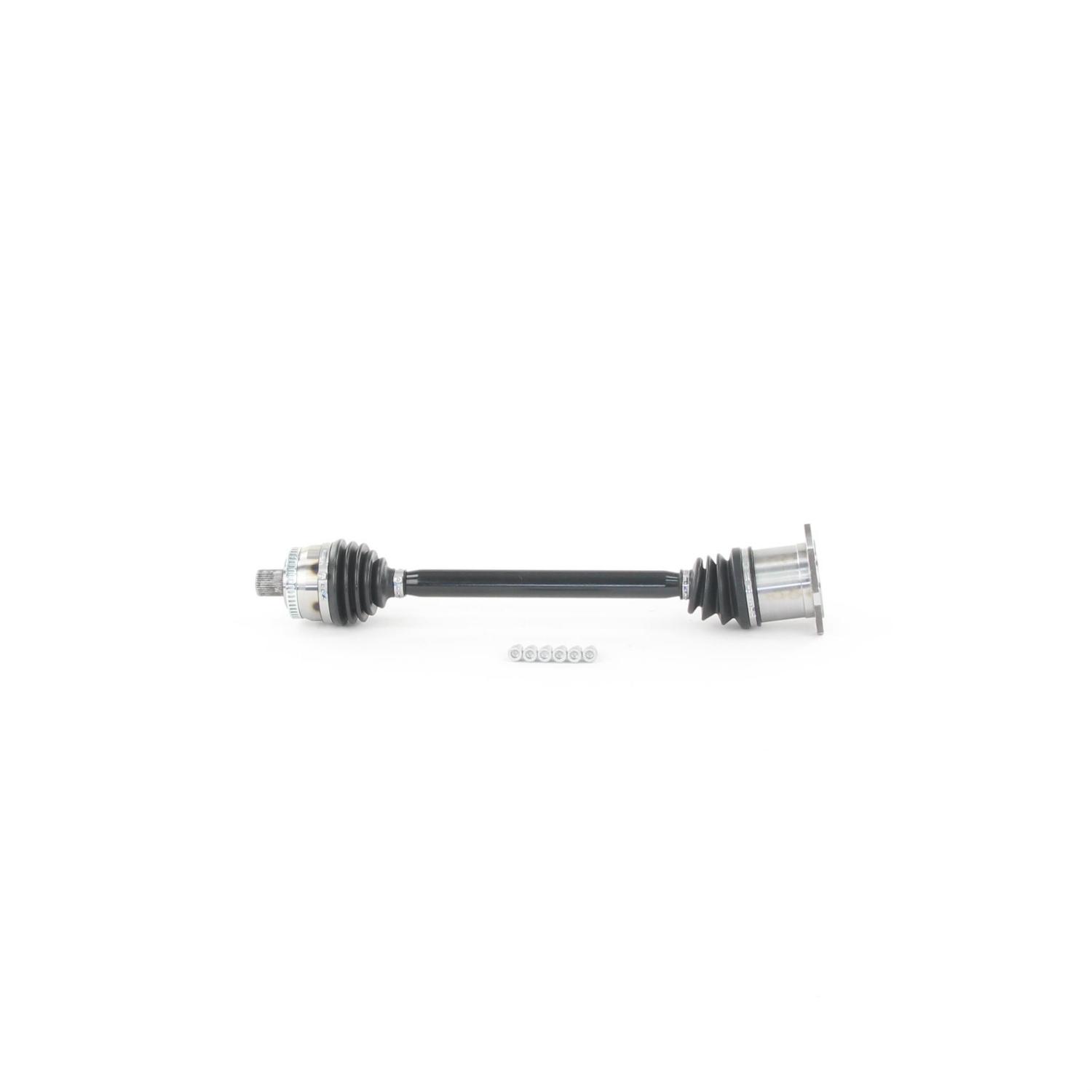

TrakMotive AD-86002 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	594
Overall Compressed Length (in)	23.39
Overall Extended Length (in)	25.57
Overall Extended Length (mm)	650
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	38
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	45
Abs Ring Type	Window
Axle Nut Included	No
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Outboard Joint Boot Material	Thermoplastic
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	12
Inboard Bolt Head Size (in)	.44
Inboard Bolt Length (mm)	30
Inboard Bolt Length (in)	1.19
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	00840140507188
Origin Country:	CN
Weight:	12.81Lb. (5.83 kg.)
Package Dimensions:	31.1" x 5.1" x 5.1" (79 cm x 13 cm x 13 cm)

1 Year Warranty
