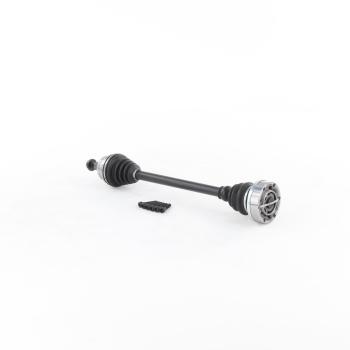

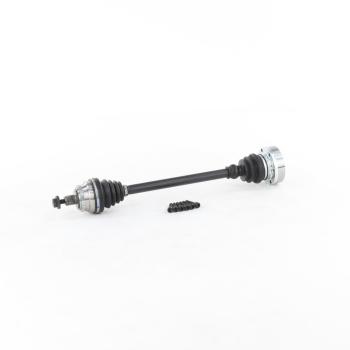

TrakMotive AD-8074 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

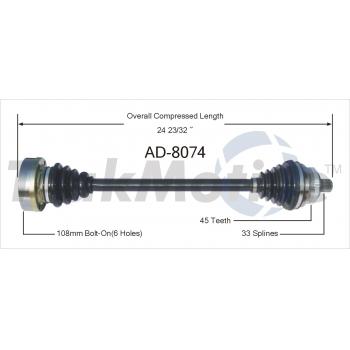

Overall Compressed Length (mm)	628
Overall Compressed Length (in)	24.72
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Audi Style Spline Bolt
Number Of Inboard Splines	0
Number Of Outboard Splines	33
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	45
Abs Ring Type	Toothed
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	93
Axle Bolt Thread Size	M14x1.5
Axle Bolt Hex Size (mm)	24
Outboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	8
Inboard Bolt Head Size (in)	.33
Inboard Bolt Length (mm)	55
Inboard Bolt Length (in)	2.17
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Bolt-on
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	844084091741
Origin Country:	CN
Weight:	16.31Lb. (7.42 kg.)
Package Dimensions:	26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)

1 Year Warranty
