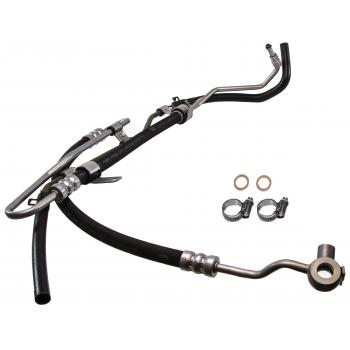

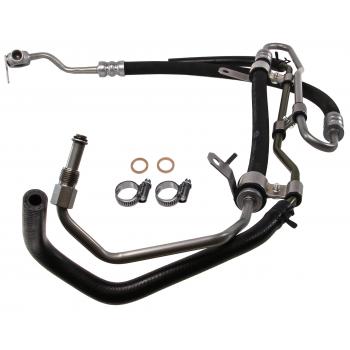

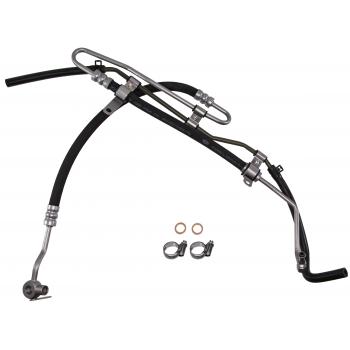

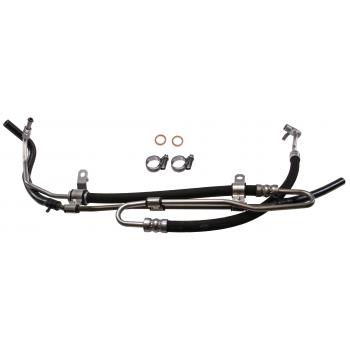

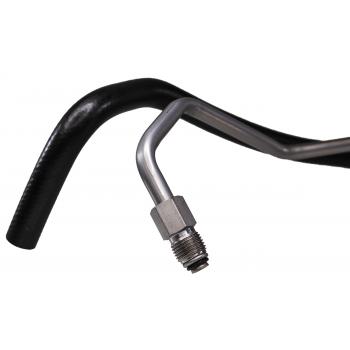

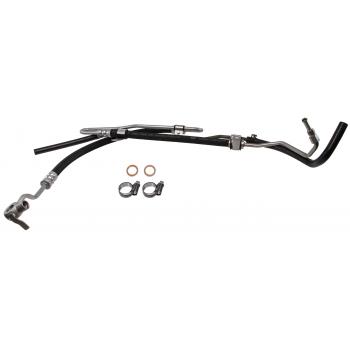

Rein Automotive PSH0571 Power Steering Pressure Line Hose Assembly in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

A direct fit, replacement hose and line assembly.
Pre assembled coated, rust resistant hose crimp end(s) and bracket(s), where required.
Pre attached protective jacket(s) and heat sleeve(s), where required.
SAE J188 compliant high pressure rubber compound hose with internal noise absorber.
SAE J526 compliant coated, rust resistant heavy duty tubing and end fittings.
Rein OE Quality power steering high pressure feed and return hose assemblies are designed to save valuable labor time. During the manufacturing process, each high pressure feed assembly undergoes rigorous testing of its tensile strength, burst pressure, low temperature flexibility, impulse, and corrosion resistance to exceed industry standards. Rein high pressure hose assemblies are built with SAE J188 compliant rubber compound hose with an internal noise absorber, not included by most competitors, along with protective jacket(s) and or heat sleeve(s). The SAE J526 compliant tubing sections of the assemblies, along with their end fittings, are made of heavy duty carbon steel which are either resin, zinc or zinc plus powder coated for rust resistance. Tyin

Package Contents	One Hose, Two Clamps, Two Washers, One Seal
Mounting Brackets Included	Yes
Item Grade	StandardReplacement
Heat Shield Included	Not Required
Hose Material	NBRCR
Clamps Included	Yes
Link to Manufacturer Page	www.reinautomotive.com
Crush Washers Included	Yes
Fitting Seals Included	Yes
Hose Crimp End Finish	ZincAlloy
Hose Crimp End Material	CarbonSteel
Hose Burst Pressure PSI	300
Hose Operating Pressure PSI	100
End 1 Inside Diameter MM	16.0000
End 1 Outside Diameter MM	24.0000
End 2 Inside Diameter MM	16.0000
End 2 Outside Diameter MM	24.0000
Banjo Bolt Included	No
High Pressure End 1 Type	Banjo
High Pressure End 2 Gender	Male
High Pressure Hose Material	NBRCSMCPE
Low Pressure End 2 Type	Hose
High Pressure Hose Burst Pressure PSI	8700
High Pressure Hose Operating Pressure PSI	1700
Low Pressure End 2 Inside Diameter MM	9.5000
Low Pressure End 2 Outside Diameter MM	17.0000
Low Pressure Hose Burst Pressure PSI	1000.0000
Low Pressure Hose Operating Pressure PSI	250.0000
High Pressure End 2 Thread Diameter MM	16.0000
High Pressure End 2 Type	InvertedFlare
Low Pressure End 1 Type	Hose
Low Pressure End 1 Inside Diameter MM	9.5000
Low Pressure End 1 Outside Diameter MM	17.0000
Low Pressure Hose Material	NBRCR
OE Tier	2
UPC	00888544082870
Origin Country:	CN
Weight:	2.93Lb. (1.33 kg.)
Package Dimensions:	38" x 15" x 5.6" (96.5 cm x 38.1 cm x 14.3 cm)

1 Year Warranty
