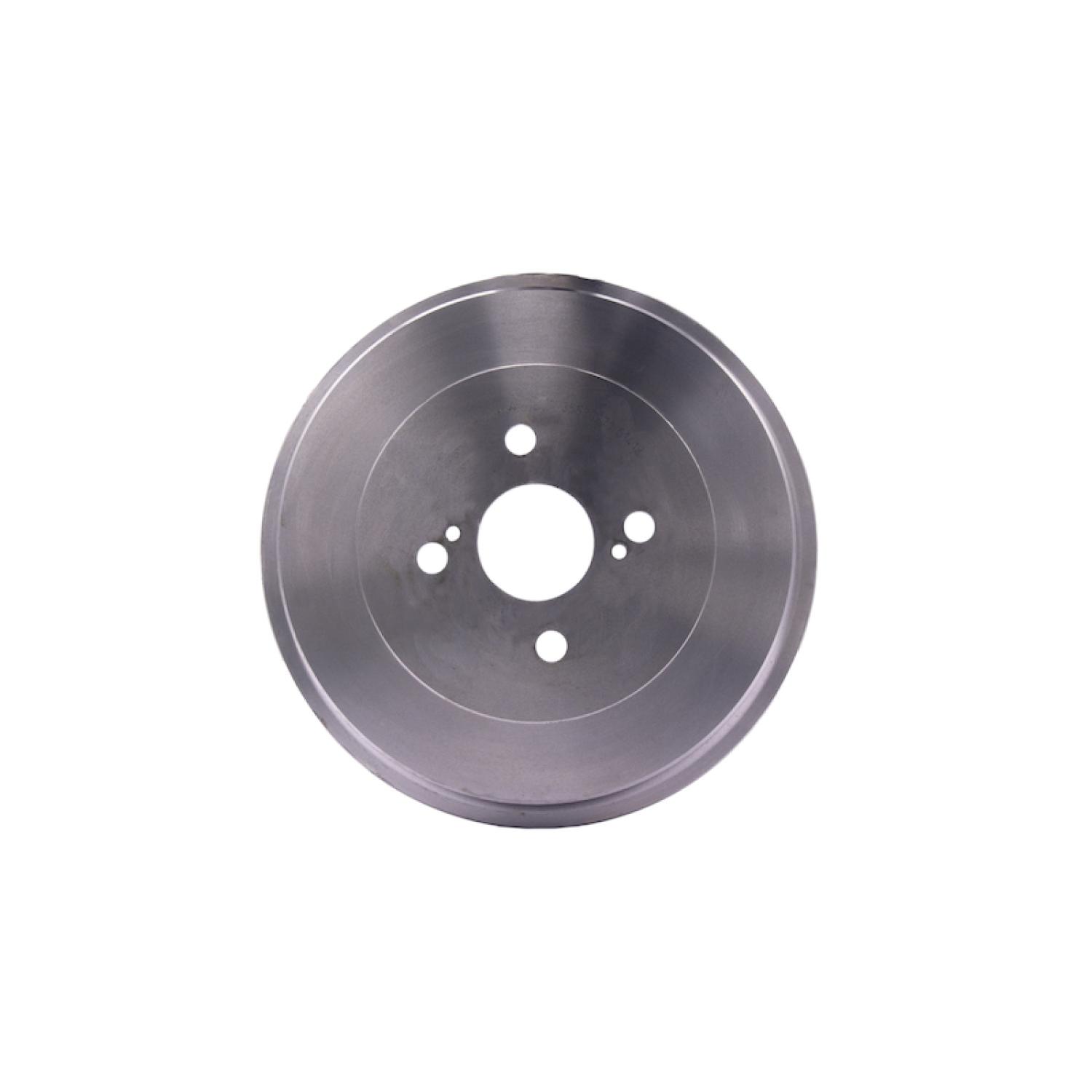

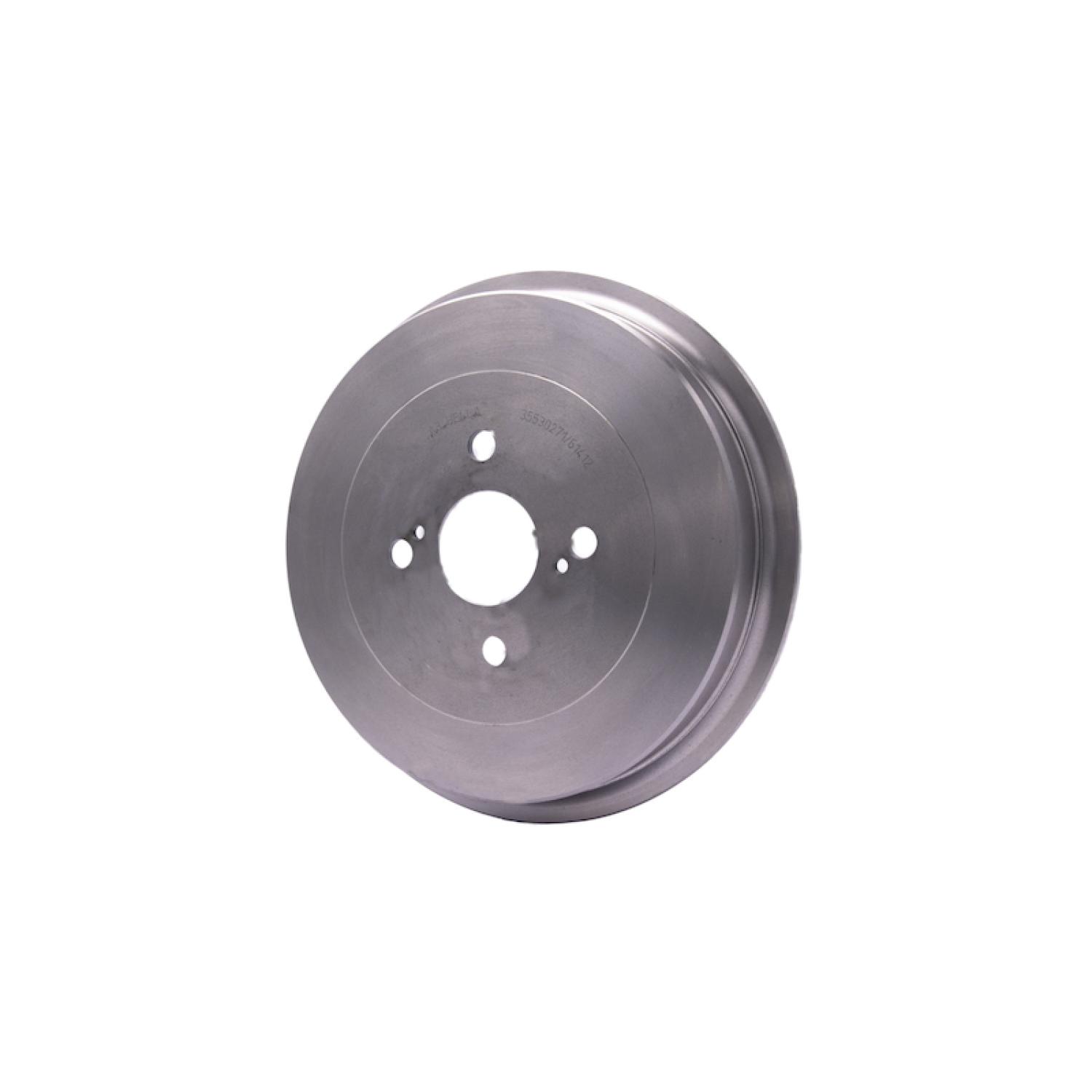

Hella Pagid 355302711 Brake Drum in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

HELLA's Brake Drum is a durable and essential component designed to ensure smooth, reliable braking performance. Engineered for strength and precision, it efficiently absorbs the braking force, providing consistent stopping power. Ideal for both repairs and upgrades, this high-quality brake drum enhances the safety and longevity of your vehicle's braking system.

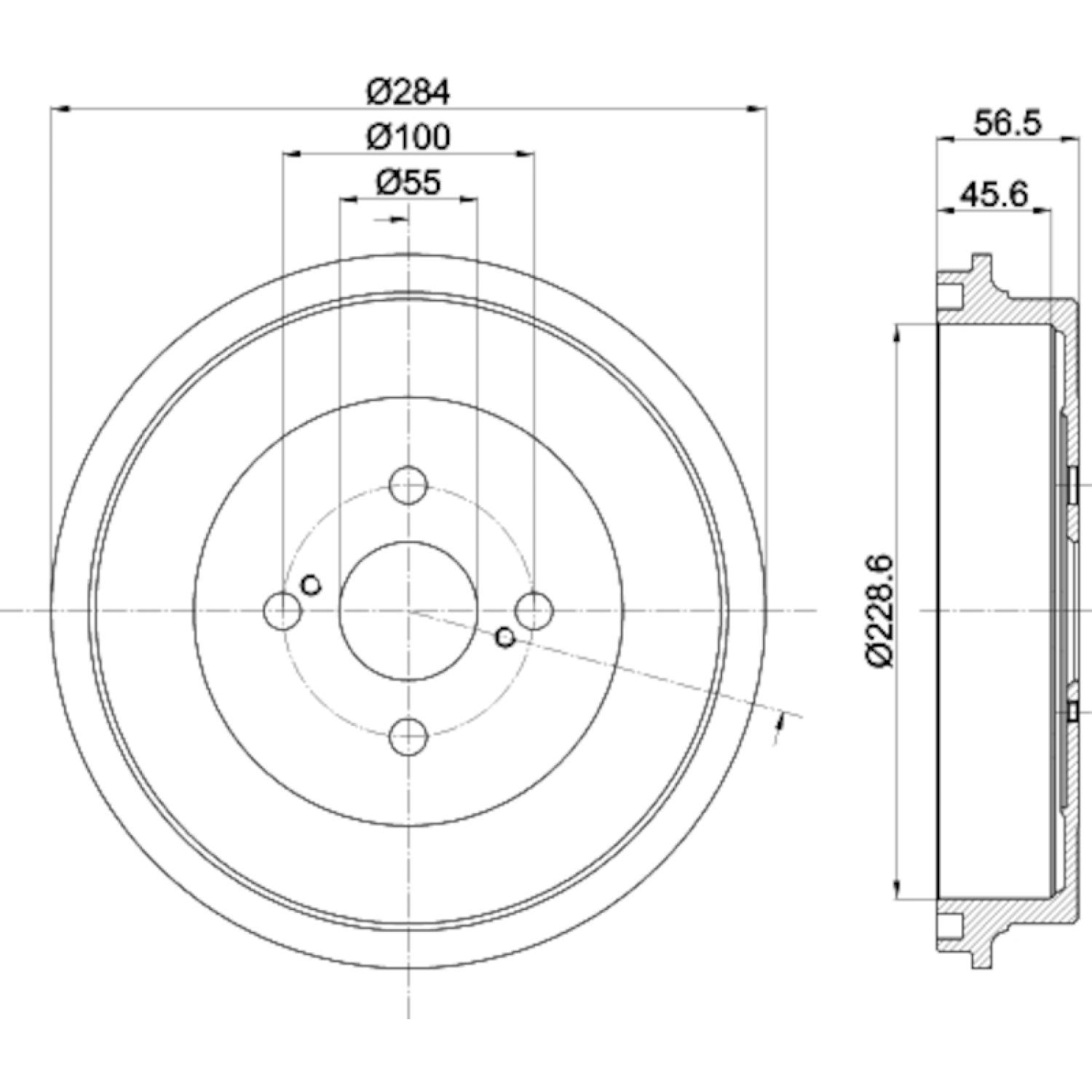

Drum diameter [mm]	228.6
Outer brake drum diameter [mm]	284
Outer brake drum diameter [in]	11.18
Inner Brake Drum Height [mm]	45.6
Total Brake Drum Height [in]	2.24
Inner brake drum diameter [in]	9.02
Inner brake drum diameter [mm]	229
Outer Brake Diameter [mm]	284
Total Brake Drum Height [mm]	56.5
Inner Brake Drum Height [in]	1.81
Max. Skimmed Drum Measure [mm]	229.6
Hole Arrangement/Number	04/06
Bolt Hole Circle Ã˜ [mm]	100
Hole Arrangement/Number	04/06
Bolt Hole Circle Ã˜ [in]	3.94
Max. Skimmed Drum Measure [mm]	229.6
Centering Diameter [mm]	55
Centering Diameter [in]	2.17
Weight [kg]	5.6
Wheel Bolt Bore Ã˜ [mm]	14.6
Supplementary Article/Info 2	without wheel bearing
Supplementary Article/Info 2	without wheel hub
Supplementary Article/Info 2	without wheel studs
Technical Information Number	61412
Assy/Disassy by Qualified Personnel Required!	.
UPC	04082300494587
Origin Country:	CN
Weight:	13.28Lb. (6.04 kg.)
Package Dimensions:	11.5" x 11.5" x 6.6" (29.1 cm x 29.1 cm x 16.8 cm)

1 Year Warranty

Hella Pagid 355302711 Brake Drum
