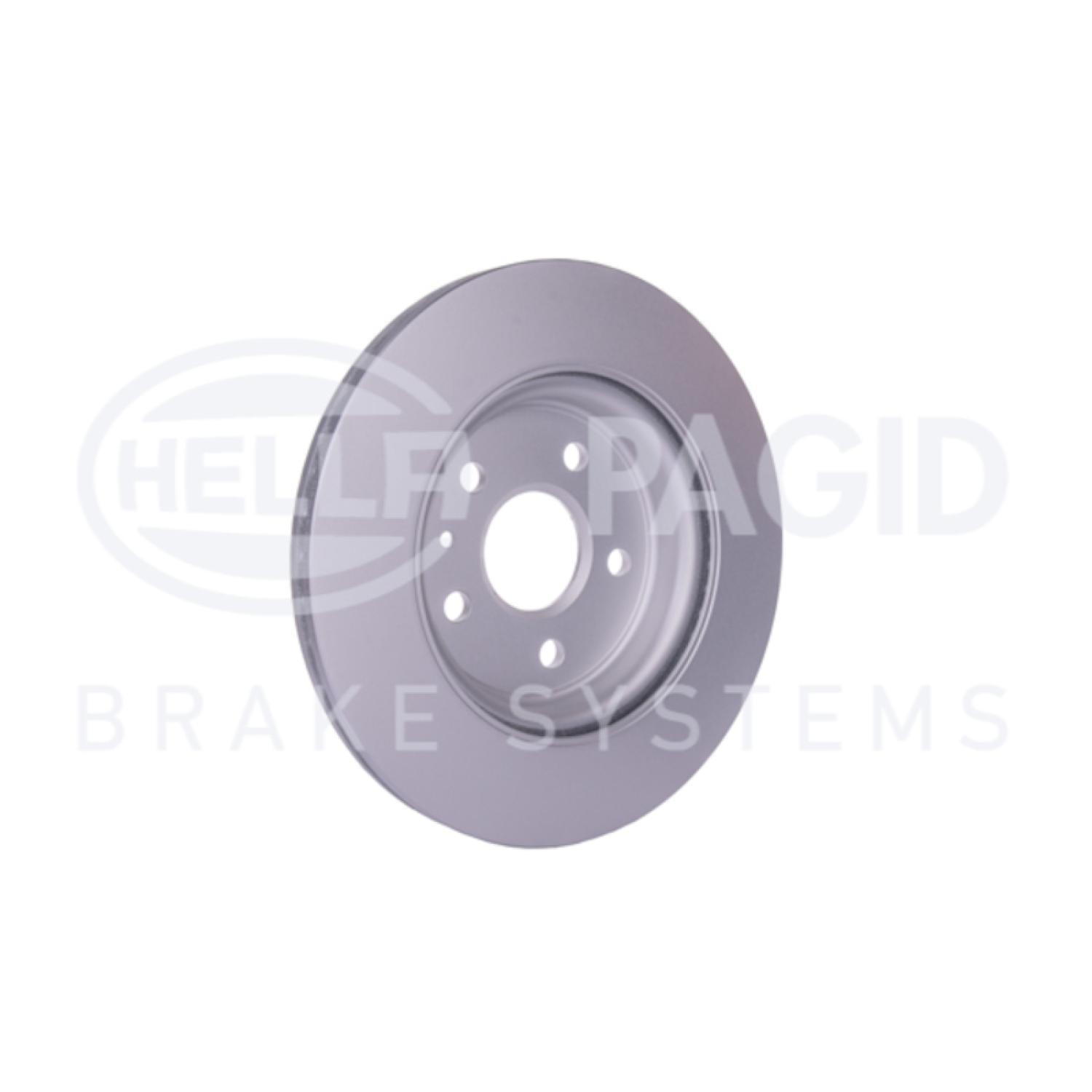

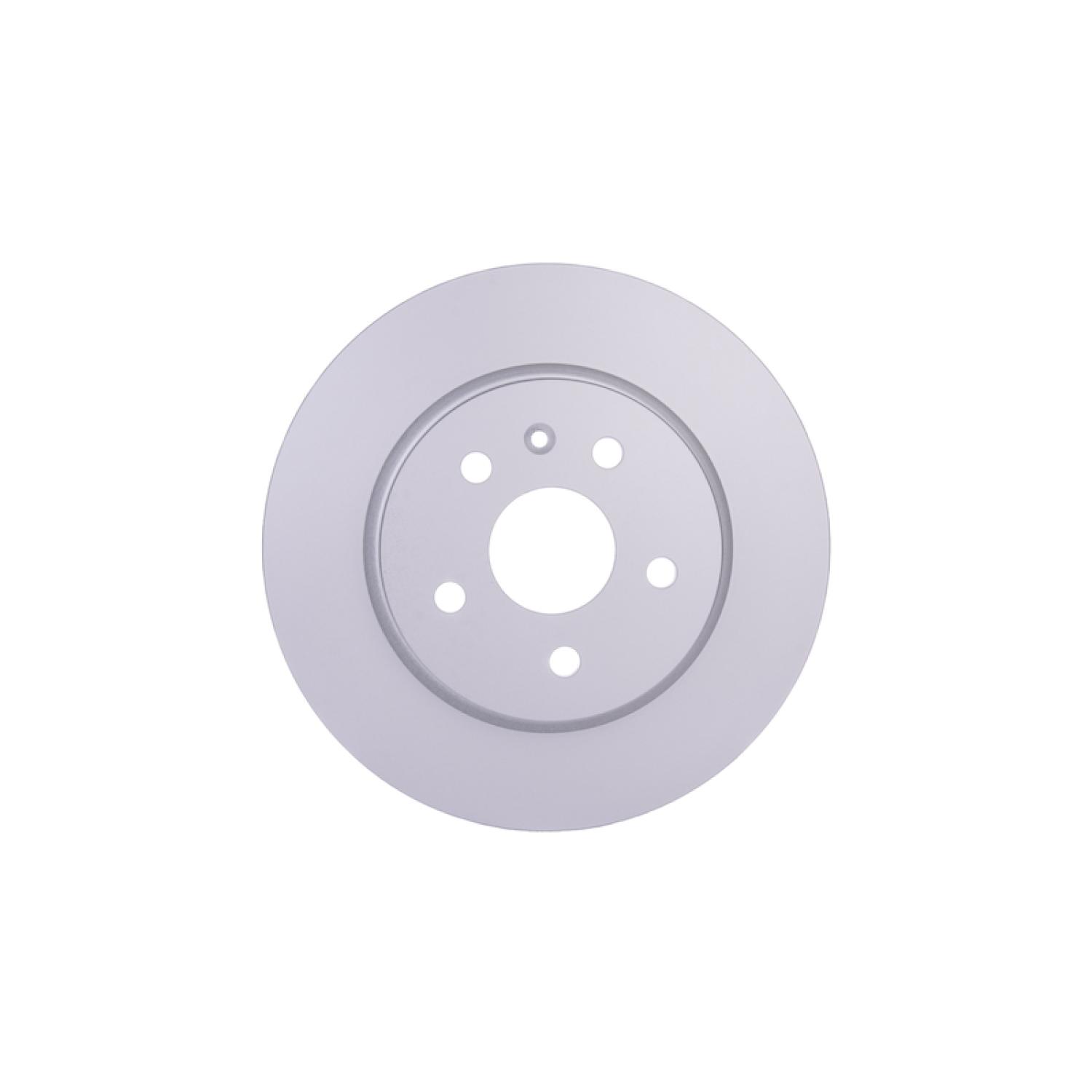

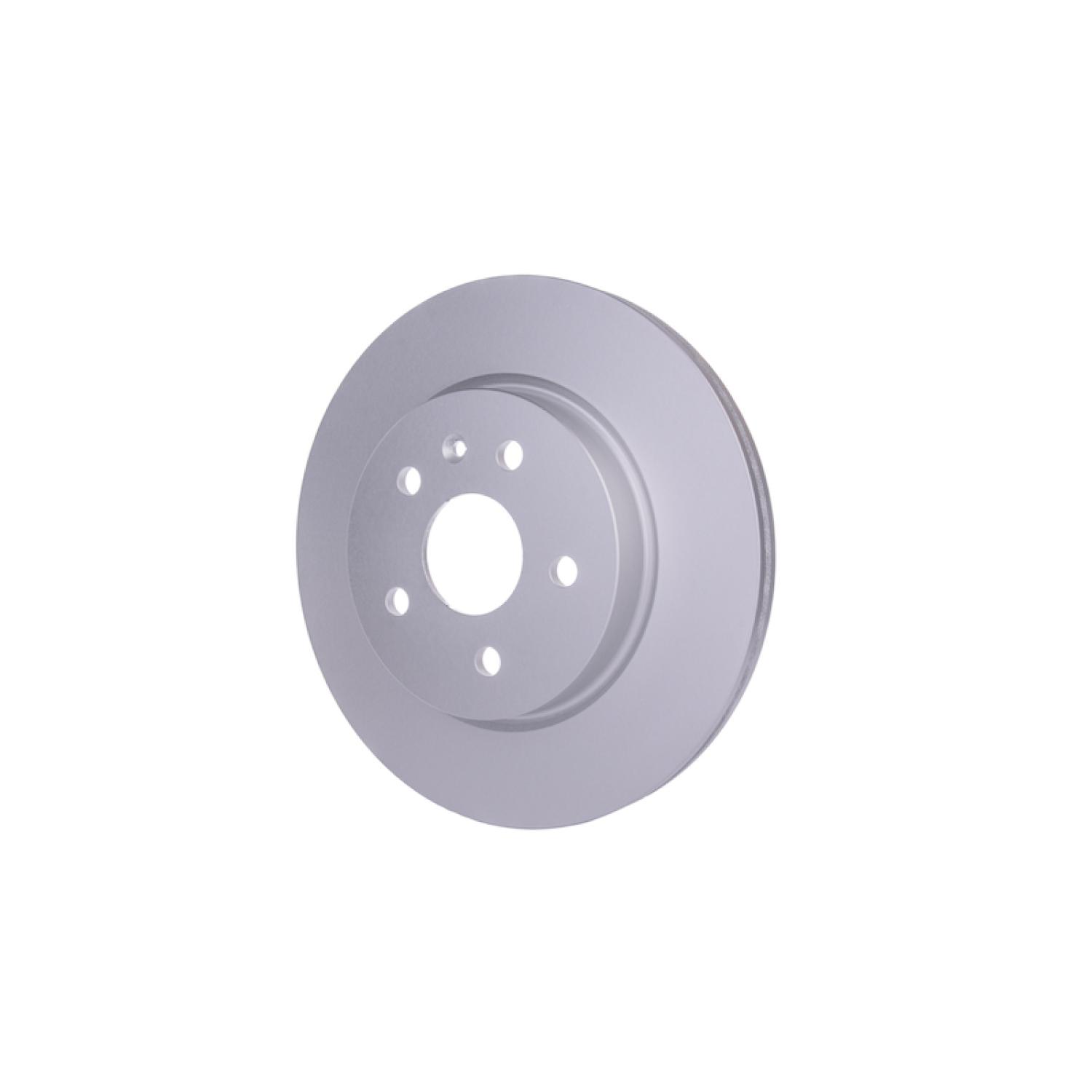

Hella Pagid 355129101 Disc Brake Rotor in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Saab 13502199
Opel 13501303
Mintex MDC2192
Pagid 54871PRO
Opel 569062
Opel 569128
Valeo 196008
Valeo 197801
Chevrolet 23118534
Chevrolet 13501290
Mintex MDC2191
Bosch 0986479514
Bosch 0986479C71
Bosch 0986T16668
TRW DF7888
TRW DF6112
Pagid 54873
Pagid 54873PRO
Bendix 562463B
Bendix 562463BC
Bendix 521529
TRW Steering and Suspension Parts DF6112
TRW Steering and Suspension Parts DF7888
Buick 23118534
Buick 13501314
Buick 13501290
Brembo 09A97210
Brembo 09A97211
Delphi BG4190
Delphi BG4190C
Cadillac 23118534
Cadillac 13501290
Hella Pagid 54873PROHC
Hella Pagid 8DD355129101
Magneti Marelli 360406080900
Magneti Marelli 360704027400
Magneti Marelli 361302040102
Holden 13501303
Vauxhall 13501303
Buick 23118533
Mintex MDK0256
SBS 203671
Zimmermann 430261620
ATE 430208
EBC Brakes D1694
EBC Brakes GD1694
Optimal BS8472C
Optimal BS8472
AMC FO4192
Mintex MDC82191C
VAICO V4080006
Girling 6061122
FTE BS7194
FTE 9081073
FTE BS7194B
FTE 9071241
FREMAX BRAKE ROTORS AND DRUMS BD5193
Borg & Beck BBD4766
Febi-Bilstein 39373
Ferodo DDF1805PD
Ferodo DDF1805C1
Ferodo DDF1805C
Ferodo DDF2513C1D
Ferodo DDF1805
Dynamic Friction Company 90046034
Dynamic Friction Company 90065024
DON PCD11792
SBS 1815203670
SBS 1815313670
HERTH+BUSS J3310907
Roadhouse 6128410
Remsa 6128410
Cifam 8001009C
Champion 562463CH
Zimmermann 430261852
Zimmermann 430261820
Textar 92187303
Textar 98200187301
Chevrolet 13501314
Motaquip LVBD1341Z
NAPA PBD8131
Topran 208306
Akebono BN0216E
Akebono BN0216
ATE 423114
ATE 24032301141
ATE 24012301141
Japan Parts DPW08
Japan Parts DPW08C
TRW Steering and Suspension Parts DF6112S
Brake Engineering DI956735
NK Autoparts 203670
NK Autoparts 313670
LPR O1031VR
LPR O1031V
Meyle 6155230019PD
Meyle 6155230013PD
Jurid 562463JC
Jurid 562463JC1

Fixing screws are always included if required
Full range is 100% fully coated with premium zinc rust protection
Full range is 100% high carbon (GG15 & GG20)
Higher driving comfort with reduced machining tolerances
Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Increased carbon content for increased heat conductivity and better mechanical properties
Less fading and quiet braking
Manufactured according to European OE specifications (AM1 & AM2)
Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Reduced braking noise
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

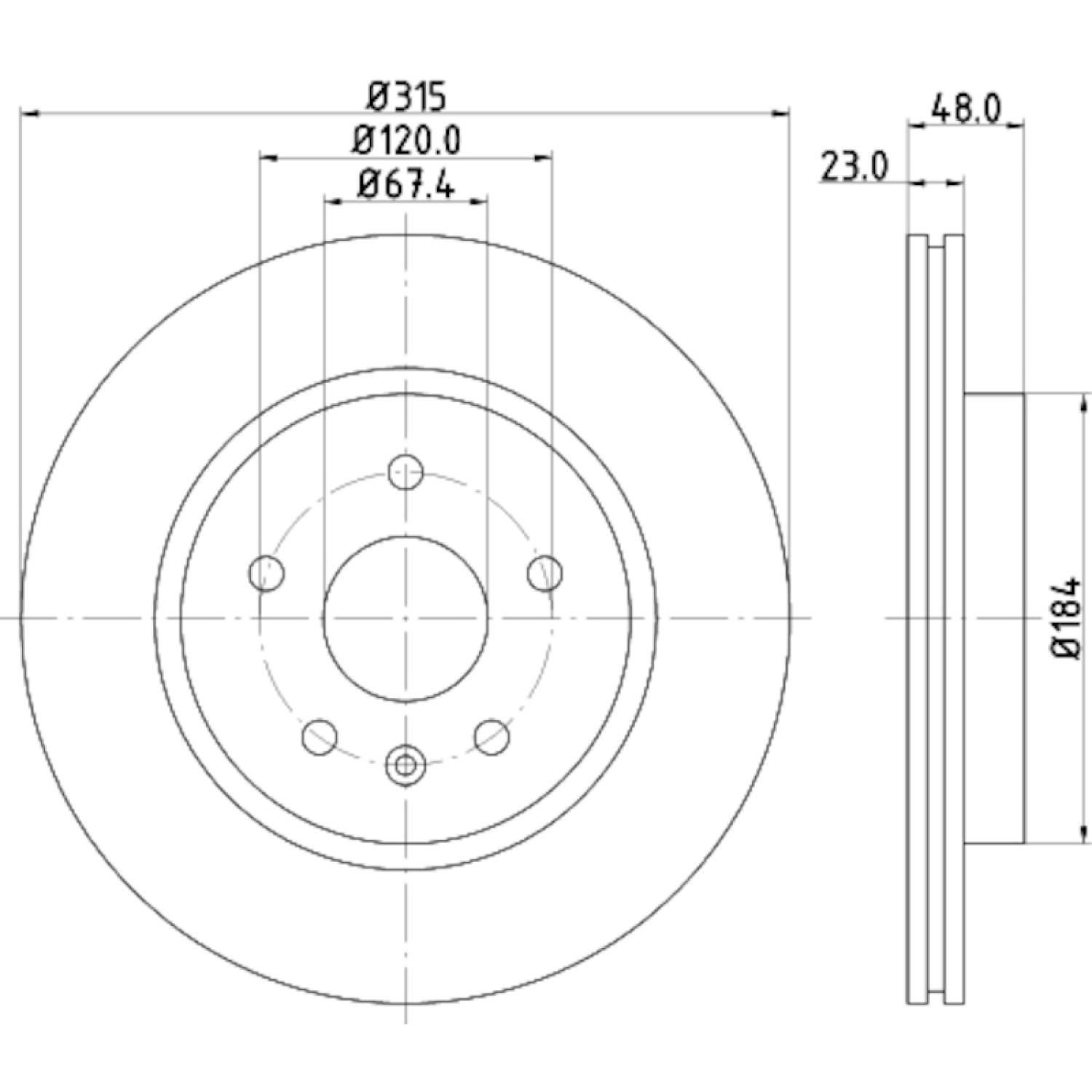

Machining	High-carbon
Outer diameter [mm]	315
Brake Disc Thickness [mm]	23
Outer Diameter [in]	12.40
Brake Disc Type	Internally Vented
Brake Disc Thickness [in]	0.91
Minimum thickness [mm]	21.5
Height [in]	1.89
Height [mm]	48
Hole Arrangement/Number	05/06
Bolt Hole Circle Ã˜ [mm]	120
Inner diameter [mm]	171.8
Centering Diameter [mm]	67.4
Weight [kg]	8
Bolt Hole Circle Ã˜ [in]	4.72
Supplementary Article/Info 2	without wheel hub
Supplementary Article/Info 2	without wheel studs
Hole Arrangement/Number	05/06
Inside Diameter	67.4
Surface	Coated
Wheel Bolt Bore Ã˜ [mm]	16.3
Machining	High-carbon
Technical Information Number	54873PRO_HC
Weight [lb]	17.64
Assy/Disassy by Qualified Personnel Required!	.
UPC	04082300660890
Origin Country:	CN
Weight:	18.05Lb. (8.21 kg.)
Package Dimensions:	12.8" x 12.8" x 6" (32.5 cm x 32.5 cm x 15.2 cm)

1 Year Warranty

Hella Pagid 355129101 Disc Brake Rotor

DISC BRAKE ROTOR
