Hella Pagid 355126421 Disc Brake Rotor in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Fixing screws are always included if required
Full range is 100% fully coated with premium zinc rust protection
Full range is 100% high carbon (GG15 & GG20)
Higher driving comfort with reduced machining tolerances
Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Increased carbon content for increased heat conductivity and better mechanical properties
Less fading and quiet braking
Manufactured according to European OE specifications (AM1 & AM2)
Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Reduced braking noise
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

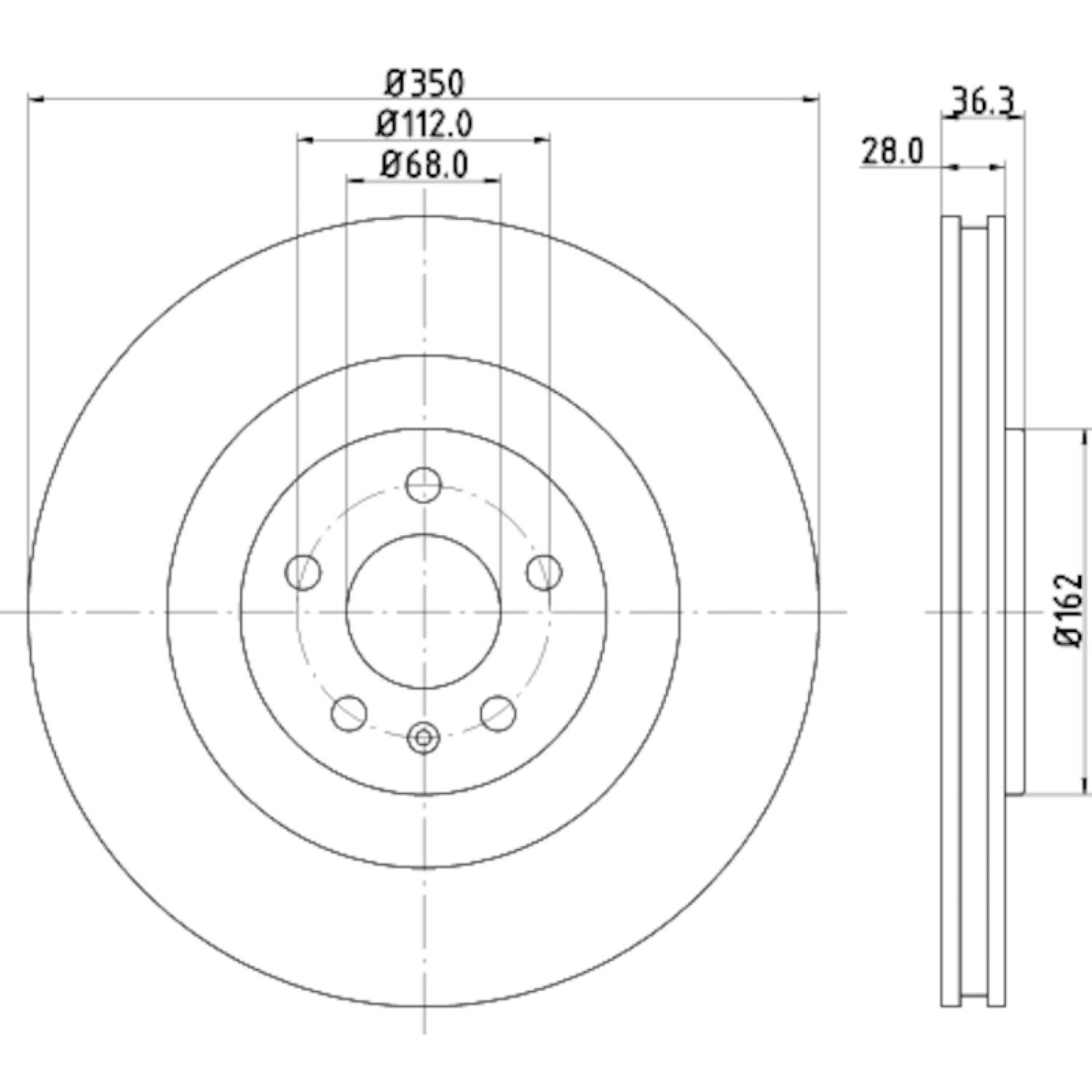

Outer diameter [mm]	350
Brake Disc Thickness [mm]	28
Outer Diameter [in]	13.78
Brake Disc Type	Internally Vented
Brake Disc Thickness [in]	1.10
Minimum thickness [mm]	26
Height [mm]	36.3
Minimum thickness [in]	1.02
Hole Arrangement/Number	05/06
Bolt Hole Circle Ã˜ [mm]	112
Inner diameter [mm]	150.1
Centering Diameter [mm]	68
Weight [kg]	9.4
Bolt Hole Circle Ã˜ [in]	4.41
Supplementary Article/Info 2	without wheel hub
Centering Diameter [in]	2.68
Supplementary Article/Info 2	without wheel studs
Hole Arrangement/Number	05/06
Surface	Coated
Wheel Bolt Bore Ã˜ [mm]	15.2
Machining	High-carbon
Technical Information Number	55904PRO_HC
Assy/Disassy by Qualified Personnel Required!	.
UPC	04082300641981
Origin Country:	CN
Weight:	21.16Lb. (9.62 kg.)
Package Dimensions:	15" x 14.4" x 3.1" (38 cm x 36.5 cm x 8 cm)

1 Year Warranty

Hella Pagid 355126421 Disc Brake Rotor
