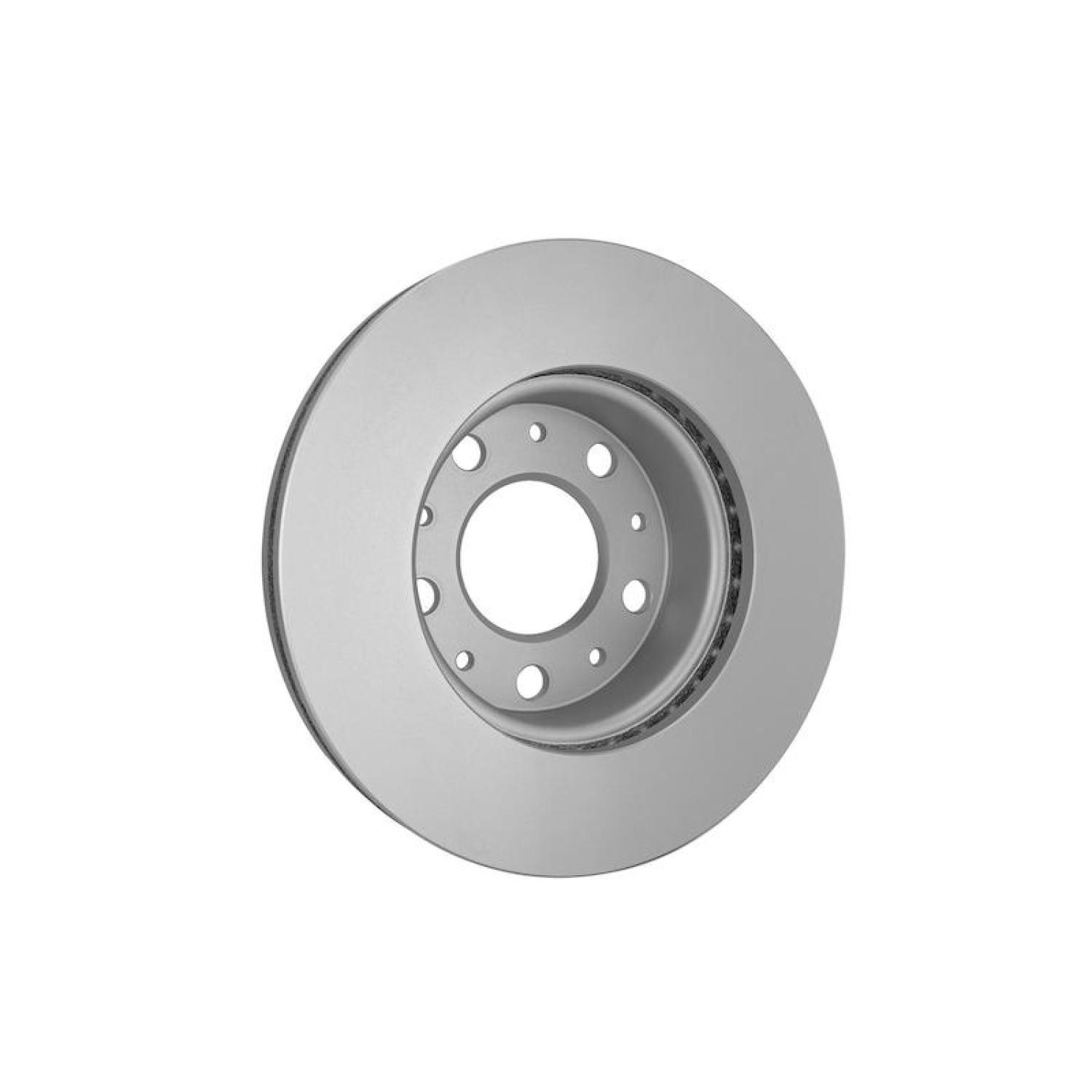

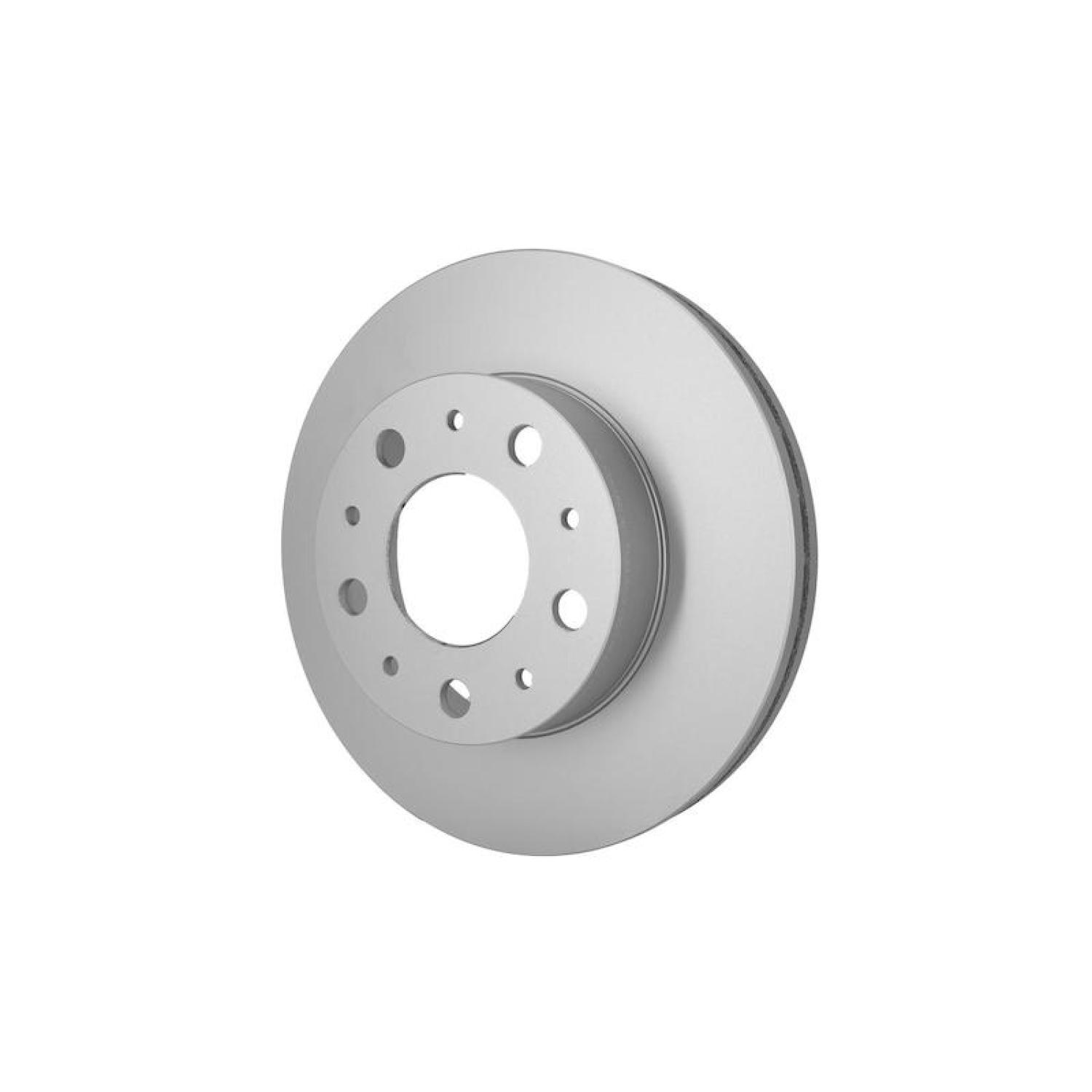

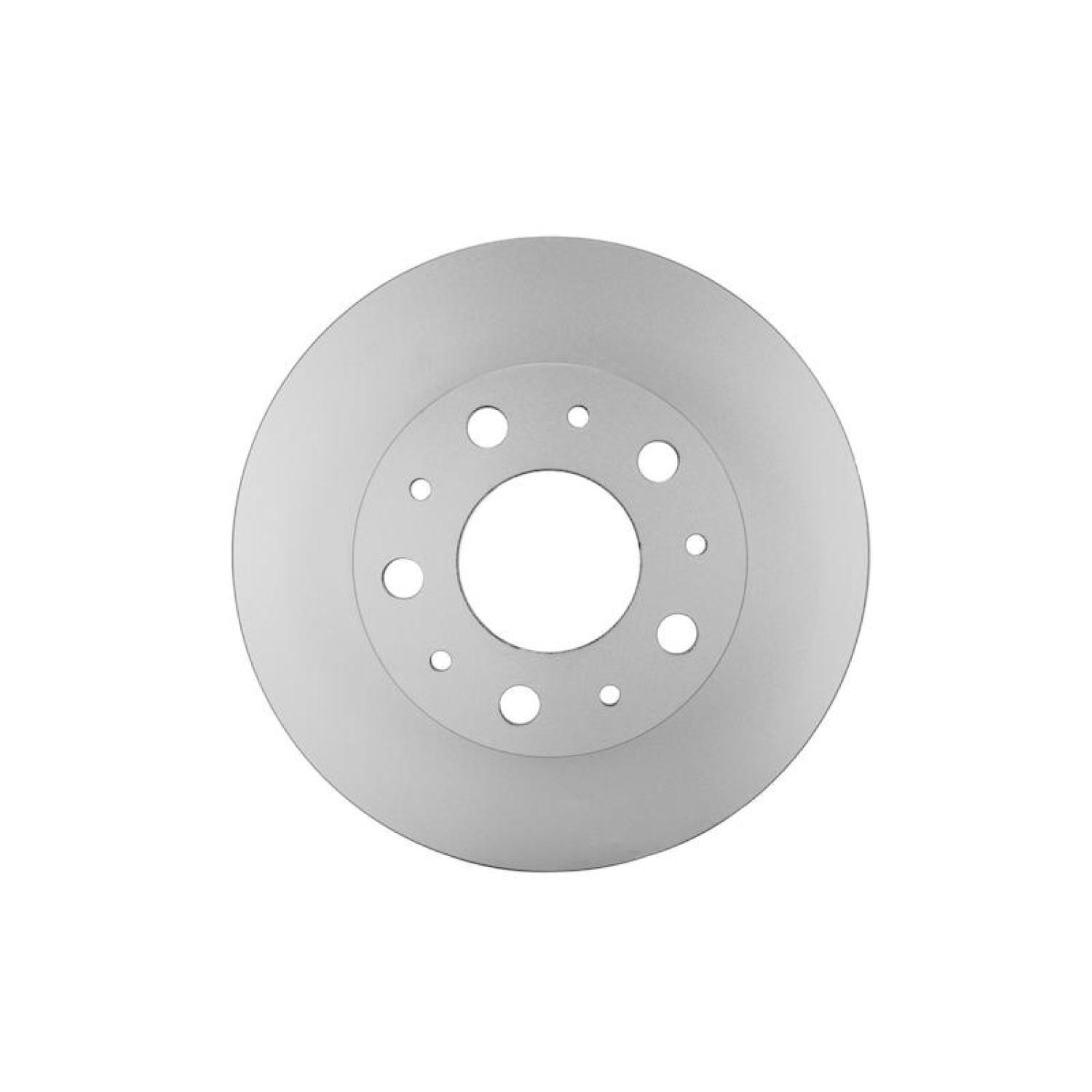

Hella Pagid 355125261 Disc Brake Rotor
DISC BRAKE ROTOR
$184.73 CAD
Out of Stock
Brand: Hella Pagid
Stock #: 355125261
Condition: New
UPC: 04082300640823
Weight: 23.88 lb.(10.86 kg.)
Dimensions: 13.2" x 12.6" x 3.7" (33.5 cm x 32 cm x 9.5 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- Fiat 51957509
- Peugeot 1612435480
- Delphi BG4060
- Bendix 562630BC
- Ram 68195026AA
- Brembo 09A45810
- Brembo 09A45811
- Brembo 09A45814
- Mintex MDC2006
- Fiat 51705758
- Fiat 51740249
- TRW DF4751S
- Peugeot 1612435380
- Peugeot 4249.37
- Peugeot 4249.38
- Peugeot 4249.A6
- Ferrari 517 0575 8
- Ferrari 517 4024 9
- Valeo 197565
- Citroen 4249.38
- Citroen 4249.A6
- Citroen 1607872380
- Citroen 1612435380
- Citroen 1612435480
- Citroen 4249.37
- Citroen 1611841280
- Citroen 1618864580
- Fiat 51957510
- Fiat 6001073176
- Fiat 71773409
- Bosch 0986479315
- Bosch 0986AB5681
- Bosch F026A06815
- Peugeot 1618864580
- Pagid 54573
- Ferrari 519 5750 9
- Ferrari 519 5751 0
- Bendix 521714
- Bendix 522135
- Brembo 09D01811
- Delphi BG9180C
- Hella Pagid 54573PRO
- Hella Pagid 8DD355125261
- Magneti Marelli 360407100000
- TRW Steering and Suspension Parts DF4751S
- Mintex MVK0042
- Mintex MVK0012
- Optimal BS9766HC
- Optimal BS8378HC
- Optimal BS8378
- Hi-Q SD5507
- Valeo 672934
- AMC FO4122
- VAICO V2440031
- VAICO V4280006
- Girling 6047515
- FTE BS7170B
- FTE 9071249
- FTE 9081005
- FTE BS7170
- FREMAX BRAKE ROTORS AND DRUMS BD4622
- Tridon 8120101006
- Borg & Beck BBD5805S
- Borg & Beck BBD6125S
- Febi-Bilstein 44037
- Ferodo DDF27951
- Ferodo DDF1718
- Ferodo DDF17181
- Delphi BG4060T
- DON PCD19491
- SBS 1815201959
- SBS 1815201950
- SBS 1815311959
- SBS 1815311950
- Magneti Marelli 360406180301
- Roadhouse 6160010
- Roadhouse 6101610
- Remsa 6160010
- Remsa 6101610
- Cifam 800885C
- Zimmermann 230237470
- Zimmermann 230237472
- Zimmermann 230237400
- Zimmermann 230237475
- Zimmermann 230237420
- Zimmermann 180303020
- Textar 98200157301
- Textar 92157305
- Textar 92157300
- Textar 92157303
- Triscan 8120101006
- Citroen 1687773080
- Mapco 25040C
- NAPA PBD8197
- Akebono BN0207
- Akebono BN0207E
- Akebono BN0206E
- Akebono BN0206
- ATE 432131
- ATE 24013201311
- ATE 24013201881
- Japan Parts DI0239
- Japan Parts DI0239C
- Brake Engineering DI956708
- NK Autoparts 201959
- NK Autoparts 311959
- NK Autoparts 201950
- NK Autoparts 311950
- LPR F2024V
- LPR C1012VR
- LPR C1012V
- Meyle 2155210021
- Meyle 2835210021PD
- Jurid 562630JC
- Jurid 562630JC1
- Jurid 563305J1
- Jurid 563305JC1
- Fixing screws are always included if required
- Full range is 100% fully coated with premium zinc rust protection
- Full range is 100% high carbon (GG15 & GG20)
- Higher driving comfort with reduced machining tolerances
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- Manufactured according to European OE specifications (AM1 & AM2)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Reduced braking noise
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

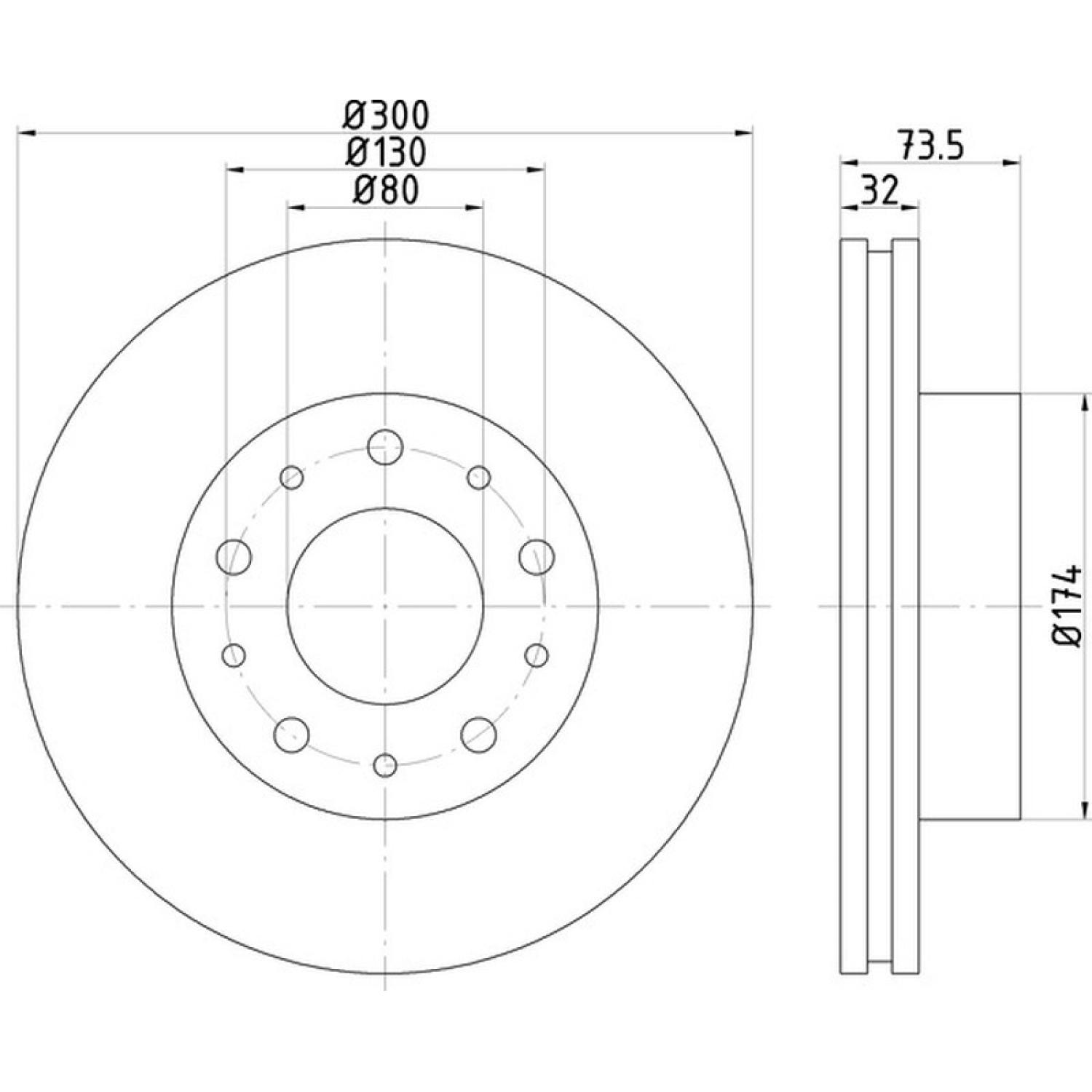

| Outer diameter [mm] | 300 |
| Brake Disc Thickness [mm] | 32 |
| Outer Diameter [in] | 11.81 |
| Brake Disc Type | Internally Vented |
| Brake Disc Thickness [in] | 1.26 |
| Minimum thickness [mm] | 29.9 |
| Height [mm] | 73.5 |
| Hole Arrangement/Number | 05/10 |
| Inner diameter [mm] | 161 |
| Bolt Hole Circle Ø [mm] | 130 |
| Inner Diameter [in] | 6.34 |
| Centering Diameter [mm] | 80 |
| Bolt Hole Circle Ø [in] | 5.12 |
| Weight [kg] | 10.5 |
| Centering Diameter [in] | 3.15 |
| Supplementary Article/Info 2 | without wheel hub |
| Hole Arrangement/Number | 05/10 |
| Supplementary Article/Info 2 | without wheel studs |
| Wheel Bolt Bore Ø [mm] | 17.8 |
| Surface | Coated |
| Technical Information Number | 54573PRO |
| Assy/Disassy by Qualified Personnel Required! | . |
| UPC | 04082300640823 |
| Origin Country: | CN |
| Weight: | 23.88Lb. (10.86 kg.) |
| Package Dimensions: | 13.2" x 12.6" x 3.7" (33.5 cm x 32 cm x 9.5 cm) |
1 Year Warranty
