Hella Pagid 355125031 Disc Brake Rotor in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Fixing screws are always included if required
Full range is 100% fully coated with premium zinc rust protection
Full range is 100% high carbon (GG15 & GG20)
Higher driving comfort with reduced machining tolerances
Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Increased carbon content for increased heat conductivity and better mechanical properties
Less fading and quiet braking
Manufactured according to European OE specifications (AM1 & AM2)
Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Reduced braking noise
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

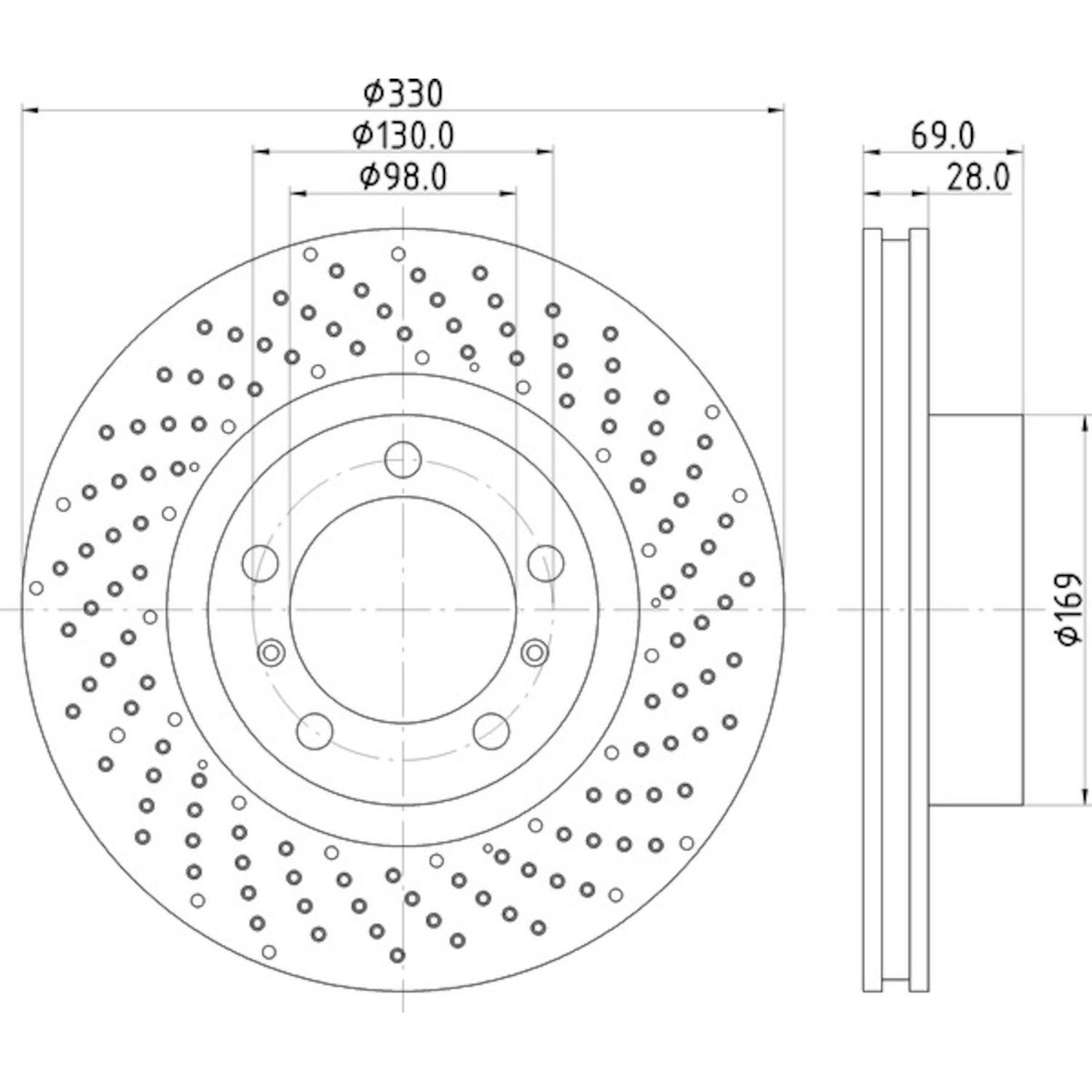

Outer diameter [mm]	330
Brake Disc Thickness [mm]	28
Brake Disc Type	Perforated/Vented
Minimum thickness [mm]	26
Height [mm]	69
Outer Diameter [in]	12.99
Hole Arrangement/Number	05/07
Brake Disc Thickness [in]	1.10
Bolt Hole Circle Ã˜ [mm]	130
Height [in]	2.72
Centering Diameter [mm]	98
Minimum thickness [in]	1.02
Weight [kg]	9.1
Supplementary Article/Info 2	without wheel hub
Supplementary Article/Info 2	without wheel studs
Inner diameter [mm]	159.8
Surface	Coated
Bolt Hole Circle Ã˜ [in]	5.12
Machining	High-carbon
Centering Diameter [in]	3.86
Hole Arrangement/Number	05/07
Technical Information Number	55797PRO_HC
Wheel Bolt Bore Ã˜ [mm]	15.4
Assy/Disassy by Qualified Personnel Required!	.
UPC	04082300640595
Origin Country:	CN
Weight:	20.93Lb. (9.51 kg.)
Package Dimensions:	14.4" x 13.8" x 3.9" (36.5 cm x 35 cm x 10 cm)

1 Year Warranty

Hella Pagid 355125031 Disc Brake Rotor
