Hella Pagid 355122801 Disc Brake Rotor in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Fixing screws are always included if required
Full range is 100% fully coated with premium zinc rust protection
Full range is 100% high carbon (GG15 & GG20)
Higher driving comfort with reduced machining tolerances
Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Increased carbon content for increased heat conductivity and better mechanical properties
Less fading and quiet braking
Manufactured according to European OE specifications (AM1 & AM2)
Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Reduced braking noise
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

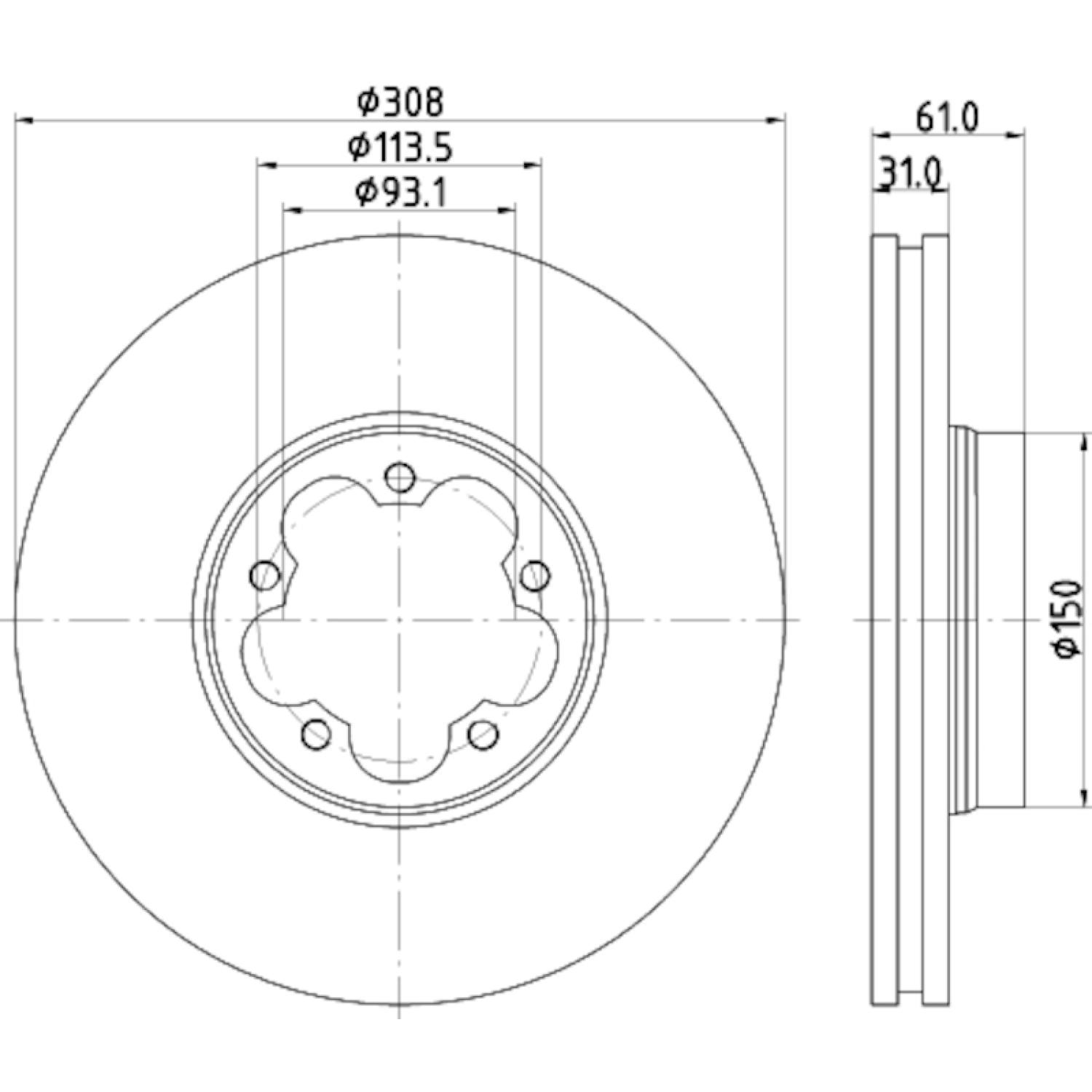

Outer diameter [mm]	308
Brake Disc Thickness [mm]	31
Outer Diameter [in]	12.13
Brake Disc Type	Internally Vented
Brake Disc Thickness [in]	1.22
Minimum thickness [mm]	28
Height [in]	2.40
Height [mm]	61
Minimum thickness [in]	1.10
Hole Arrangement/Number	05/05
Inner diameter [mm]	136
Bolt Hole Circle Ã˜ [mm]	113.5
Inner Diameter [in]	5.35
Centering Diameter [mm]	93.1
Weight [kg]	11
Supplementary Article/Info 2	without wheel hub
Hole Arrangement/Number	05/05
Supplementary Article/Info 2	without wheel studs
Wheel Bolt Bore Ã˜ [mm]	12
Wheel Bolt Bore Ã˜ [in]	0.47
Inside Diameter	93.1
Surface	Coated
Technical Information Number	55743PRO
Weight [lb]	24.26
Assy/Disassy by Qualified Personnel Required!	.
UPC	04082300602517
Origin Country:	CN
Weight:	25.67Lb. (11.67 kg.)
Package Dimensions:	13.8" x 13.2" x 2.8" (35 cm x 33.5 cm x 7 cm)

1 Year Warranty

Hella Pagid 355122801 Disc Brake Rotor
