Hella Pagid 355122732 Disc Brake Rotor
DISC BRAKE ROTOR
$171.41 CAD
Out of Stock
Brand: Hella Pagid
Stock #: 355122732
Condition: New
UPC: 04082300573633
Weight: 26.32 lb.(11.97 kg.)
Dimensions: 15" x 14.4" x 2.8" (38 cm x 36.5 cm x 7 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- Bendix 521418
- Bendix 562506BC
- Brembo 09884130
- Brembo 09884131
- Brembo 09884134
- Brembo 0988413X
- Brembo FD149000
- Delphi BG9955
- Delphi BG9955C
- Valeo 197142
- Valeo 197389
- Mintex MDC1989
- Bosch 0986479260
- Bosch 0986AB6115
- Bosch 0986T16115
- Bosch F026A06796
- Hella Pagid 54324PROHCNA
- Hella Pagid 8DD355122732
- Magneti Marelli 360406002100
- TRW DF4695
- TRW DF4695S
- Audi 4F0 061 530 F
- Audi 4F0 061 530 G
- Pagid 54324
- Pagid 54324PRO
- STOP BY BENDIX 562506S
- TRW Steering and Suspension Parts DF4695S
- TRW Steering and Suspension Parts DF4695
- Volkswagen 4F0615301G
- Audi 4F0615301G
- SBS 1815344710
- NK Autoparts 344710
- EBC Brakes USR1394
- EBC Brakes GD1394
- Optimal BS7538C
- Optimal BS7538
- Optimal BS7538HC
- AMC FO4036
- VAICO V1080076
- Werner Metzger GmbH 6110381
- Girling 6046955
- Audi 4F0615301F
- FREMAX BRAKE ROTORS AND DRUMS BD1245
- FTE BS7174B
- FTE 9081206
- FTE BS7174HB
- FTE 9081092
- Febi-Bilstein 26659
- Borg & Beck BBD5914S
- Ferodo DDF12381
- Ferodo DDF1238CD
- Ferodo DDF1238C
- Ferodo DDF1238
- Ferodo DDF1238C1
- Dynamic Friction Company 60073038
- Dynamic Friction Company 60473038
- Dynamic Friction Company 90073038
- JP Group A/S 1163113100
- DON PCD11611
- SBS 18152047108
- SBS 18153147108
- SBS 18153447108
- Roadhouse 6100910
- Roadhouse 694210
- Remsa 6100910
- Remsa 694210
- Cifam 800868C
- Skoda 4F0615301G
- Seat 4F0615301G
- Zimmermann 100331970
- Zimmermann 100331920
- Zimmermann 100331972
- Zimmermann 100331954
- Zimmermann 100331952
- Zimmermann 100331900
- Zimmermann 100331975
- Zimmermann 100331955
- Textar 98200132401
- Textar 92132403
- Textar 92132405
- Textar 92132400
- Mapco 25873C
- Motaquip LVBD1165Z
- NAPA PBD8529
- Akebono BN0152
- Akebono BN0152E
- ATE 430176
- ATE 24013001761
- ATE 530176
- ATE 24033001761
- Japan Parts DI0925C
- Japan Parts DI0925
- Brake Engineering DI956467S
- NK Autoparts 3447108
- NK Autoparts 2047108
- NK Autoparts 3147108
- LPR A1008V
- LPR A1008VR
- Key Parts KBD5914S
- Meyle 1155211099
- Meyle 1835211099PD
- Meyle 1155211099PD
- Jurid 562506JC
- Jurid 562506JC1
- Fixing screws are always included if required
- Full range is 100% fully coated with premium zinc rust protection
- Full range is 100% high carbon (GG15 & GG20)
- Higher driving comfort with reduced machining tolerances
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- Manufactured according to European OE specifications (AM1 & AM2)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Reduced braking noise
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

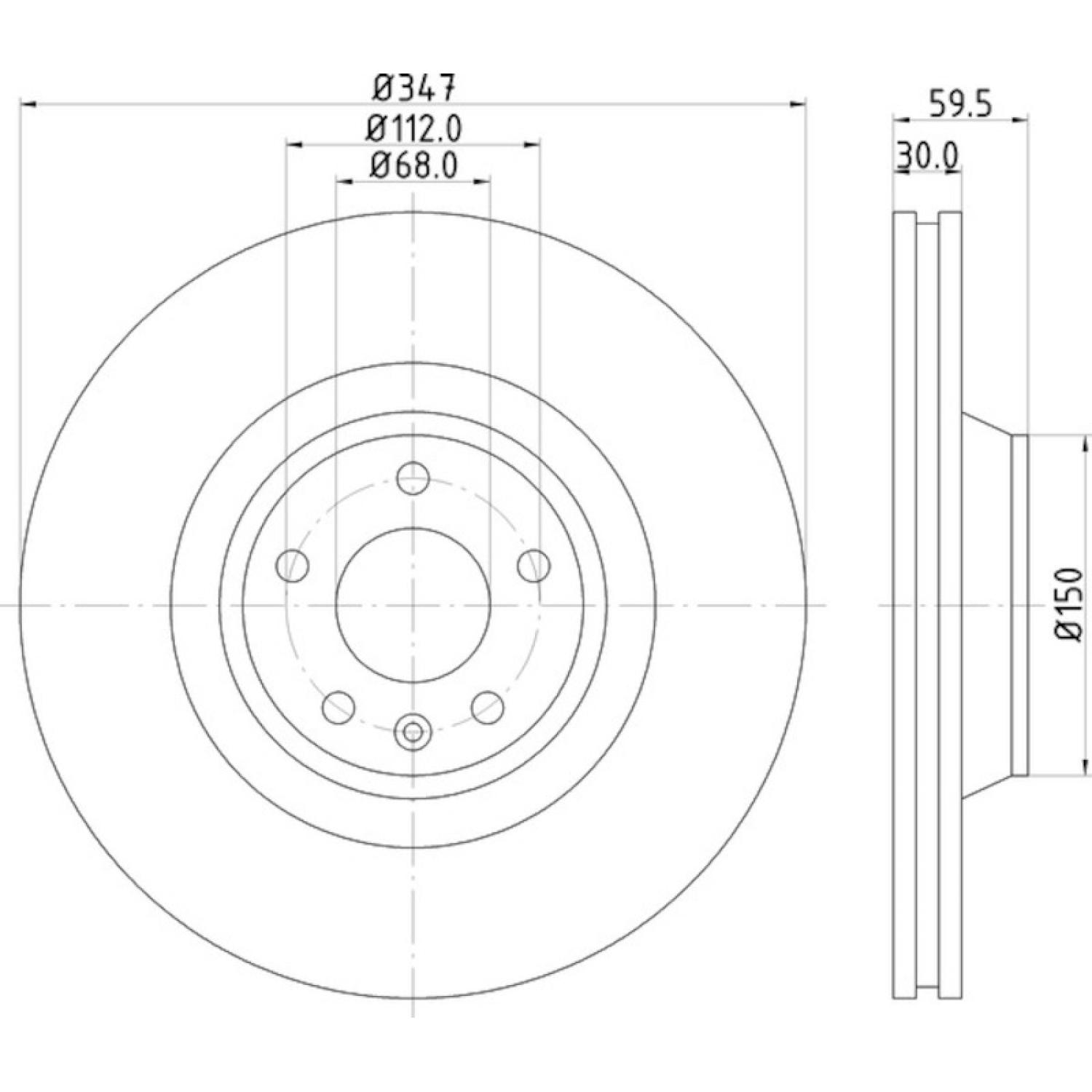

| Outer diameter [mm] | 347 |
| Brake Disc Thickness [mm] | 30 |
| Outer Diameter [in] | 13.66 |
| Brake Disc Type | Externally Vented |
| Brake Disc Thickness [in] | 1.18 |
| Minimum thickness [mm] | 28 |
| Height [mm] | 59.5 |
| Minimum thickness [in] | 1.10 |
| Hole Arrangement/Number | 05/06 |
| Color | Silver |
| Bolt Hole Circle Ø [mm] | 112 |
| Centering Diameter [mm] | 68 |
| Inner diameter [mm] | 157.9 |
| Weight [kg] | 11.1 |
| Supplementary Article/Info 2 | without wheel hub |
| Bolt Hole Circle Ø [in] | 4.41 |
| Supplementary Article/Info 2 | without wheel studs |
| Centering Diameter [in] | 2.68 |
| Surface | Coated |
| Hole Arrangement/Number | 05/06 |
| Color | Silver |
| Wheel Bolt Bore Ø [mm] | 15.3 |
| Machining | High-carbon |
| Number of bolts/screws | 1 |
| Technical Information Number | 54324PRO_HC_NA |
| Assy/Disassy by Qualified Personnel Required! | . |
| UPC | 04082300573633 |
| Origin Country: | CN |
| Weight: | 26.32Lb. (11.97 kg.) |
| Package Dimensions: | 15" x 14.4" x 2.8" (38 cm x 36.5 cm x 7 cm) |
1 Year Warranty
