Hella Pagid 355122722 Disc Brake Rotor









DISC BRAKE ROTOR
$163.63 CAD
Out of Stock
Brand: Hella Pagid
Stock #: 355122722
Condition: New
UPC: 04082300573626
Weight: 25.14 lb.(11.43 kg.)
Dimensions: 14.4" x 13.8" x 2.8" (36.5 cm x 35 cm x 7 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- TRW DF4358S
- Seat 4E0 615 301 AD
- Valeo 197199
- Valeo 197388
- Valeo 297199
- Valeo 672541
- Mintex MDC1743
- Mintex MDC1743C
- Bosch 0986479300
- Bosch 0986AB6113
- Bosch 0986T16113
- TRW DF4358
- Volkswagen 4E0 615 301 AD
- Audi 4E0 615 301 AD
- Audi 4F0 061 530 E
- Pagid 54323
- Pagid 54323PRO
- Bendix 562265B
- Bendix 521229
- Brembo 09953410
- Brembo 09953411
- Brembo 09953414
- Brembo 09C89511
- Delphi BG3939
- Delphi BG3939C
- Hella Pagid 54323PROHCNA
- Hella Pagid 8DD355122722
- Magneti Marelli 360406002400
- Magneti Marelli 361302040132
- Skoda 4E0 615 301 AD
- STOP BY BENDIX 562265S
- TRW Steering and Suspension Parts DF4358
- TRW Steering and Suspension Parts DF4358S
- Wagner WGR12771
- Volkswagen 4F0615301E
- Audi 4F0615301E
- ATE 430175
- SBS 1815344710
- NK Autoparts 344710
- Optimal BS7536C
- Optimal BS7536HC
- Optimal BS7536
- Mintex MDC81743C
- Girling 6043585
- Girling 6043581
- FTE BS7095B
- FTE 9071056
- FTE 9081019
- FTE BS7095
- FTE BS7095HB
- FTE 9082588
- Borg & Beck BBD5905S
- Ferodo DDF1277CD
- Ferodo DDF1277C1
- Ferodo DDF12771
- Ferodo DDF1277DSR1D
- Ferodo DDF1277
- Ferodo DDF1277X
- Ferodo DDF1277DSL1D
- Dynamic Friction Company 60073047
- Dynamic Friction Company 60473047
- Dynamic Friction Company 90073047
- DON PCD10981
- Cifam 800916C
- Skoda 4F0615301E
- Seat 4F0615301E
- Ashuki P330142
- Akebono BN0140E
- Akebono BN0140
- NK Autoparts 3147100
- NK Autoparts 2047100
- NK Autoparts 3447100
- Key Parts KBD5905S
- EBC Brakes D1392
- EBC Brakes USR1392
- EBC Brakes GD1392
- AMC FO4034
- VAICO V1080088
- Werner Metzger GmbH 6110195
- FREMAX BRAKE ROTORS AND DRUMS BD4085
- Febi-Bilstein 26647
- Delphi RB8600411B1
- Delphi BG3939C18B1
- JP Group A/S 1163110700
- SBS 18153447100
- SBS 18152047100
- SBS 18153147100
- Roadhouse 680710
- Remsa 680710
- Zimmermann 100331872
- Zimmermann 100331875
- Zimmermann 100331852
- Zimmermann 100331820
- Zimmermann 100331870
- Zimmermann 100331800
- Textar 92132305
- Textar 92132300
- Textar 98200132301
- Textar 92132303
- Mapco 25876C
- Motaquip LVBD1168Z
- NAPA PBD8528
- Topran 110309
- ATE 530175
- ATE 24033001751
- ATE 24013001751
- Japan Parts DI0926
- Japan Parts DI0926C
- Brake Engineering DI956466S
- Brembo 09C8951X
- LPR A1019VR
- LPR A1019V
- Meyle 1835211098PD
- Meyle 1155211098PD
- Meyle 1155211098
- Jurid 562265J
- Jurid 562265JC1
- Jurid 562265JC
- Fixing screws are always included if required
- Full range is 100% fully coated with premium zinc rust protection
- Full range is 100% high carbon (GG15 & GG20)
- Higher driving comfort with reduced machining tolerances
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- Manufactured according to European OE specifications (AM1 & AM2)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Reduced braking noise
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

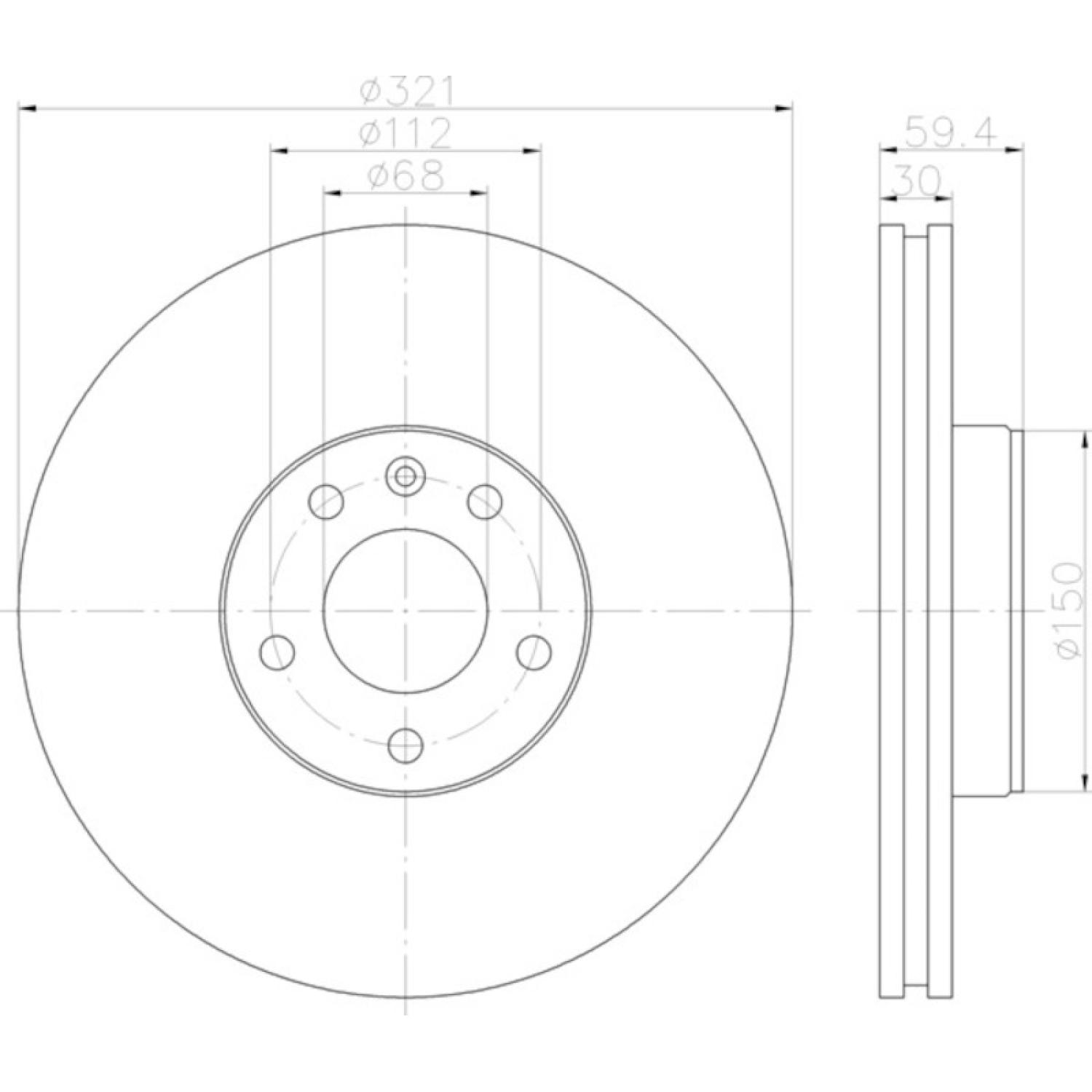

Outer diameter [mm] | 321 |
Brake Disc Thickness [mm] | 30 |
Outer Diameter [in] | 12.64 |
Brake Disc Type | Externally Vented |
Brake Disc Thickness [in] | 1.18 |
Minimum thickness [mm] | 28 |
Height [mm] | 59.6 |
Minimum thickness [in] | 1.10 |
Hole Arrangement/Number | 05/06 |
Color | Silver |
Bolt Hole Circle Ø [mm] | 112 |
Centering Diameter [mm] | 68 |
Inner diameter [mm] | 143.5 |
Weight [kg] | 10.9 |
Supplementary Article/Info 2 | without wheel hub |
Bolt Hole Circle Ø [in] | 4.41 |
Supplementary Article/Info 2 | without wheel studs |
Centering Diameter [in] | 2.68 |
Surface | Coated |
Hole Arrangement/Number | 05/06 |
Color | Silver |
Wheel Bolt Bore Ø [mm] | 15.4 |
Machining | High-carbon |
Number of bolts/screws | 1 |
Technical Information Number | 54323PRO_HC_NA |
Assy/Disassy by Qualified Personnel Required! | . |
UPC | 04082300573626 |
Origin Country: | CN |
Weight: | 25.14Lb. (11.43 kg.) |
Package Dimensions: | 14.4" x 13.8" x 2.8" (36.5 cm x 35 cm x 7 cm) |
1 Year Warranty
