Hella Pagid 355120651 Disc Brake Rotor in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Better handling, driving comfort and less load on suspension parts through reduction of unsprung masses
Fixing screws are always included if required
Full range is 100% fully coated with premium zinc rust protection
Full range is 100% high carbon (GG15 & GG20)
Higher driving comfort with reduced machining tolerances
Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Increased carbon content for increased heat conductivity and better mechanical properties
Increased fuel efficiency through weight reduction by up to 20%
Less fading and quiet braking
Manufactured according to European OE specifications (AM1 & AM2)
Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Reduced braking noise
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

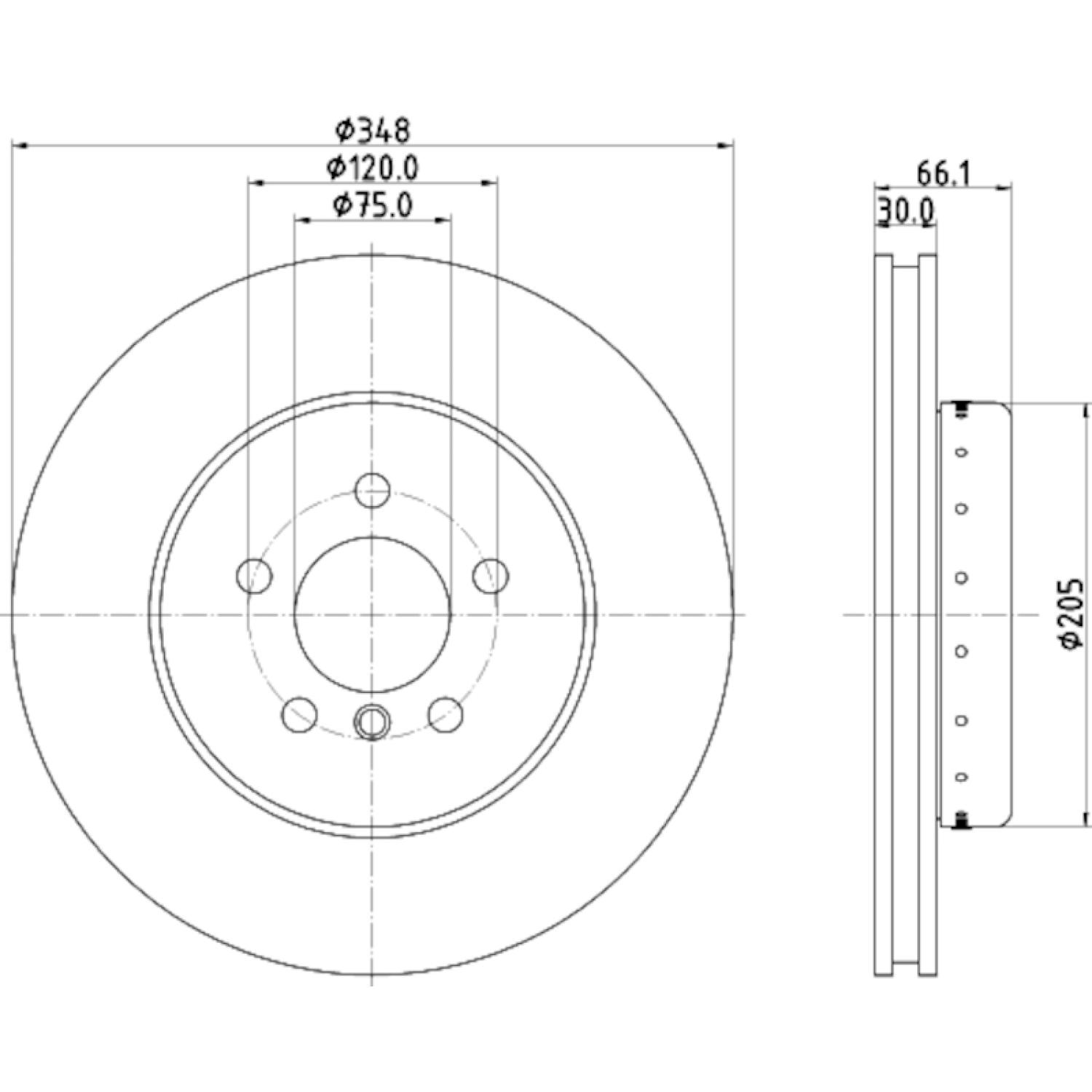

Outer diameter [mm]	348
Brake Disc Thickness [mm]	30
Brake Disc Type	Two-piece Brake Disc
Outer Diameter [in]	13.70
Brake Disc Type	Internally Vented
Brake Disc Thickness [in]	1.18
Minimum thickness [mm]	28.4
Center Hole Diameter	114.3
Height [mm]	66.1
Hole Arrangement/Number	05/06
Bolt Hole Circle Ã˜ [mm]	120
Inner diameter [mm]	186.8
Centering Diameter [mm]	75
Weight [kg]	10.6
Bolt Hole Circle Ã˜ [in]	4.72
Supplementary Article/Info 2	without wheel hub
Centering Diameter [in]	2.95
Supplementary Article/Info 2	without wheel studs
Hole Arrangement/Number	05/06
Surface	Coated
Wheel Bolt Bore Ã˜ [mm]	16.5
Machining	High-carbon
Technical Information Number	65128PRO_HC
Number of bolts/screws	1
Assy/Disassy by Qualified Personnel Required!	.
UPC	04082300513677
Origin Country:	IT
Weight:	24.74Lb. (11.25 kg.)
Package Dimensions:	15" x 14.4" x 3.1" (38 cm x 36.5 cm x 8 cm)

1 Year Warranty

Hella Pagid 355120651 Disc Brake Rotor
