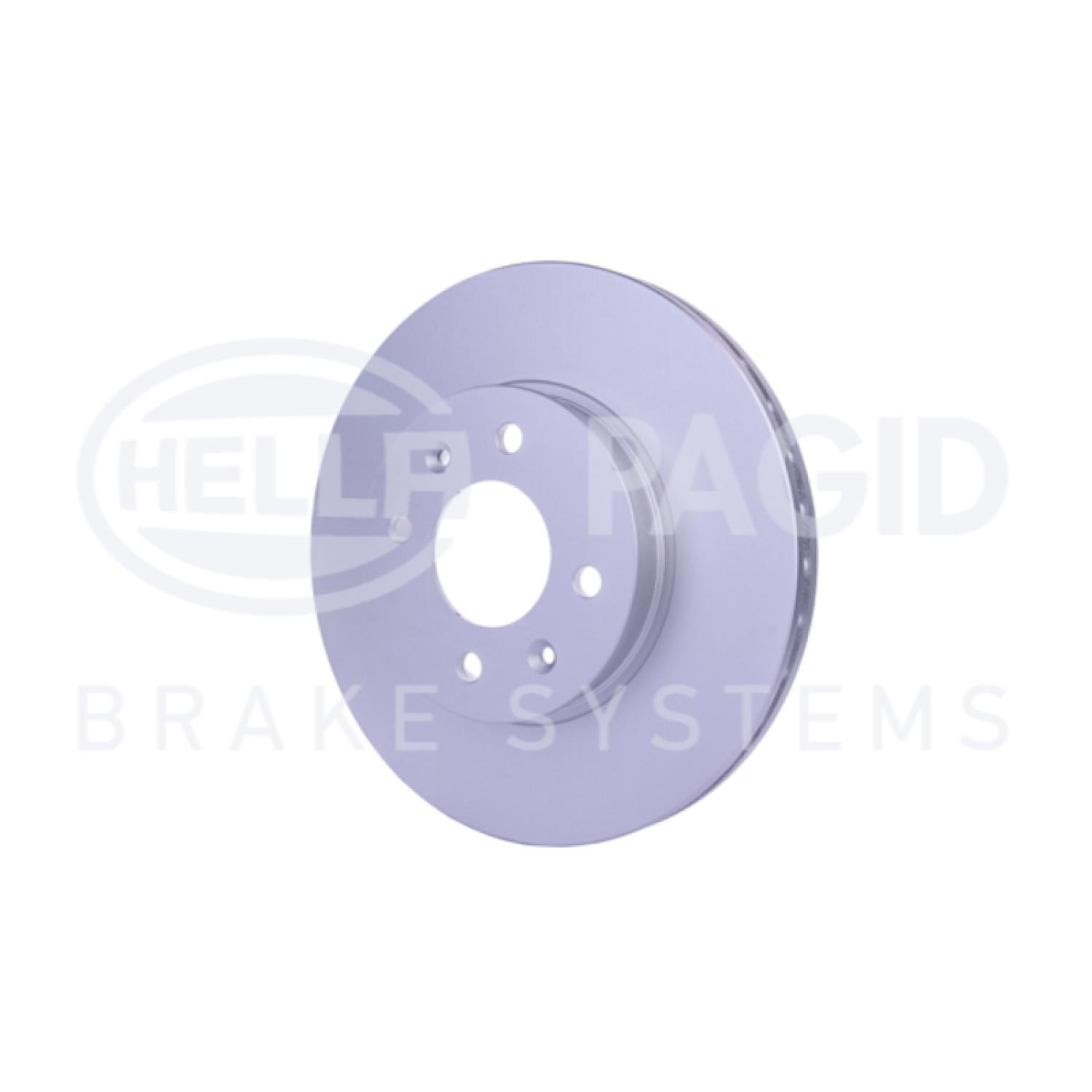

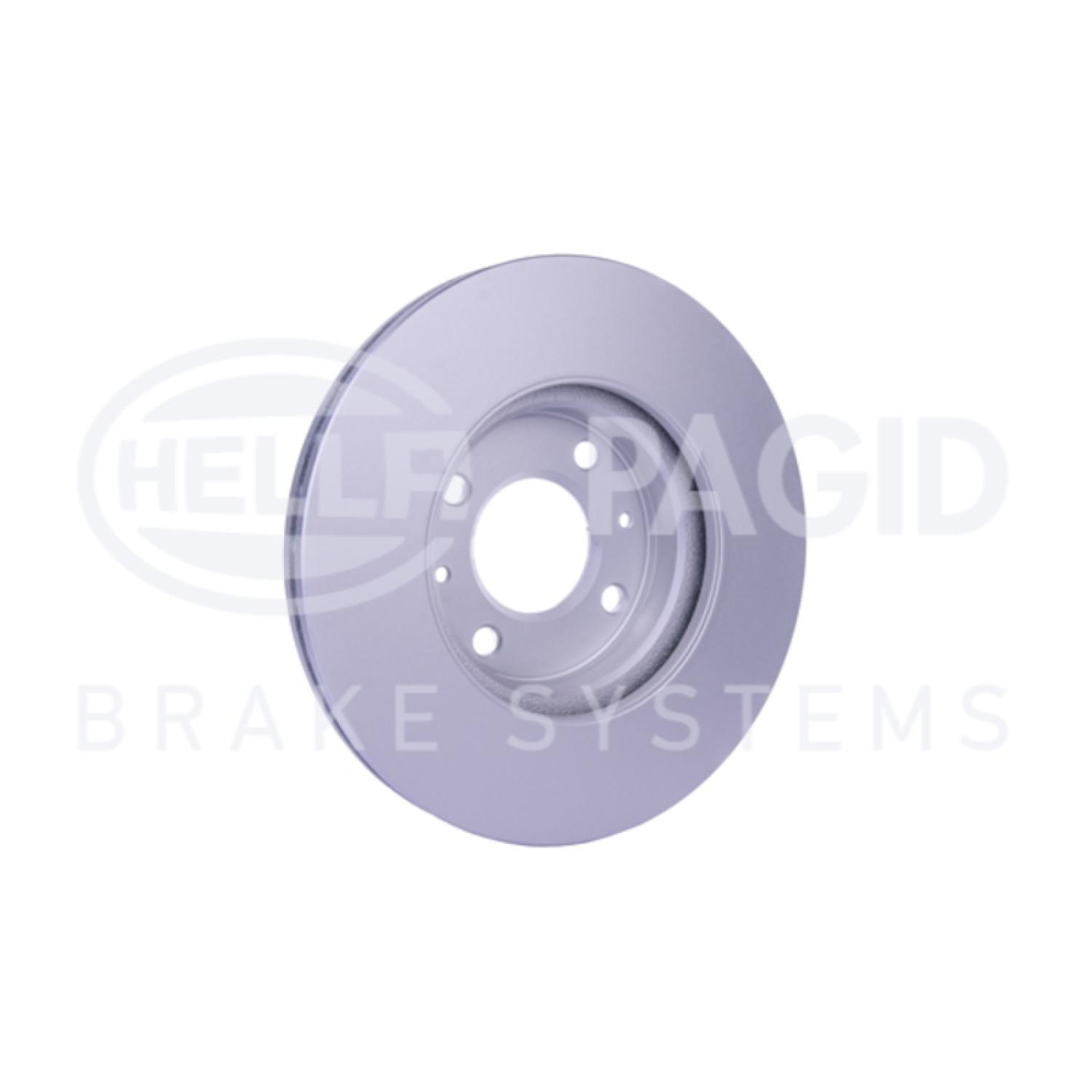

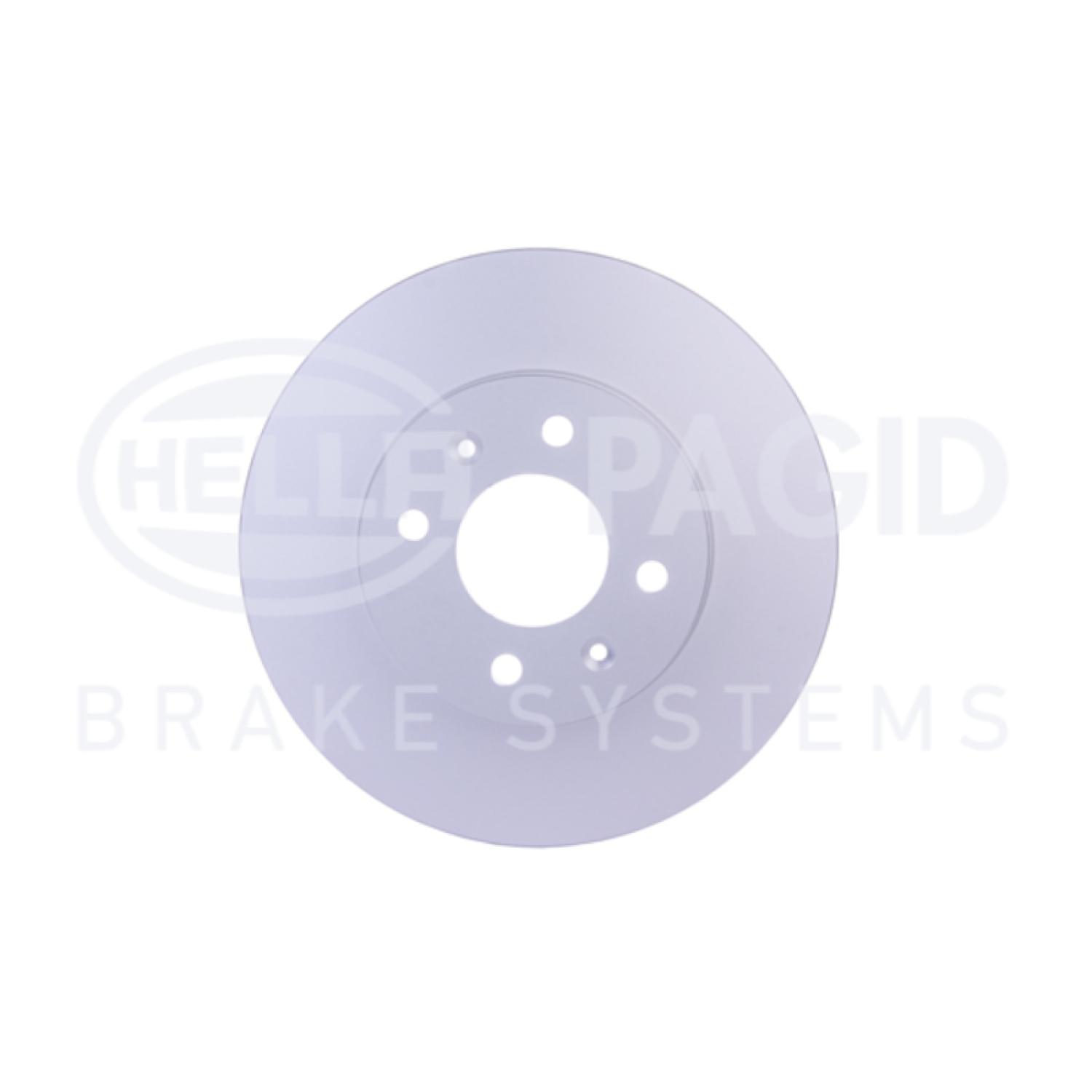

Hella Pagid 355119011 Disc Brake Rotor









DISC BRAKE ROTOR
$75.51 CAD
Out of Stock
Brand: Hella Pagid
Stock #: 355119011
Condition: New
UPC: 04082300509205
Weight: 12.08 lb.(5.49 kg.)
Dimensions: 13" x 12.4" x 4.3" (33 cm x 31.5 cm x 11 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- Hyundai 517121G000
- Kia 517121G000
- Bosch 0 986 479 367
- Bosch 0 986 479 R77
- Bendix 562554BC
- Valeo 197291
- Valeo 197382
- Valeo 297291
- Mintex MDC1839
- Bosch 0 986 AB6 100
- Bosch F002H26018
- STOP BY BENDIX 562554S
- TRW DF4839
- FREMAX BRAKE ROTORS AND DRUMS BD5101
- Pagid 54647
- Bendix 521225
- TRW Steering and Suspension Parts DF4839
- Brembo 09A44510
- Brembo 09A44511
- Delphi BG4096
- Delphi BG4096C
- Delphi BG4438C
- Wagner WGR16031
- Hella Pagid 8DD355119011
- Hella Pagid 54647PRO
- Magneti Marelli 360406071900
- Magneti Marelli 360704001000
- Magneti Marelli 600000085630
- Hyundai 51712-C8000
- Hyundai 51712C8000
- Jurid 562554JC
- Optimal BS8550C
- Optimal BS8550
- Bosch F005X14024
- Girling 6048391
- Girling 6067941
- FTE 9072066
- FTE BS7155
- FTE 9082416
- FTE BS7155B
- Borg & Beck BBD4579
- Ferodo DDF1603C
- Ferodo DDF1603C1
- Ferodo DDF1603CD
- Ferodo DDF1603
- Ferodo DDF1603X
- Ferodo DDF16031
- Dynamic Friction Company 60003001
- Dynamic Friction Company 60403001
- DON PCD12182
- Cifam 800930C
- Cifam 153384
- Ashuki I03220
- Akebono BN0363E
- Akebono BN0363
- NK Autoparts 313523
- NK Autoparts 203523
- NK Autoparts 313456
- Key Parts KBD4579
- EBC Brakes D1581
- Quinton Hazell BDC5536
- AMC FO4101
- VAICO V5280006
- Werner Metzger GmbH 61023.10
- Tridon 812043125
- Febi-Bilstein 31318
- Delphi BG4096C18B1
- JP Group A/S 3563101400
- SBS 1815313523
- SBS 1815313456
- SBS 1815203523
- HERTH+BUSS J3300554
- HERTH+BUSS J3300325
- Roadhouse 6102310
- Remsa 6102310
- Zimmermann 320380320
- Zimmermann 320380352
- Zimmermann 320380353
- Triscan 812043125
- Textar 98200164701
- Textar 92164703
- Textar 92164700
- Pilenga V703
- Mapco 25598C
- Motaquip LVBD1258Z
- NAPA PBD8540
- ATE 422260
- ATE 24012202601
- ATE 24012202931
- Japan Parts DIK18
- Japan Parts DIK18C
- Japan Parts JDIK18
- TRW Steering and Suspension Parts DF4839S
- Brake Engineering DI956605
- LPR K2014V
- LPR K2014VR
- Meyle 37155210031
- Jurid 562554JC1
- Fixing screws are always included if required
- Full range is 100% fully coated with premium zinc rust protection
- Full range is 100% high carbon (GG15 & GG20)
- Higher driving comfort with reduced machining tolerances
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- Manufactured according to European OE specifications (AM1 & AM2)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Reduced braking noise
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

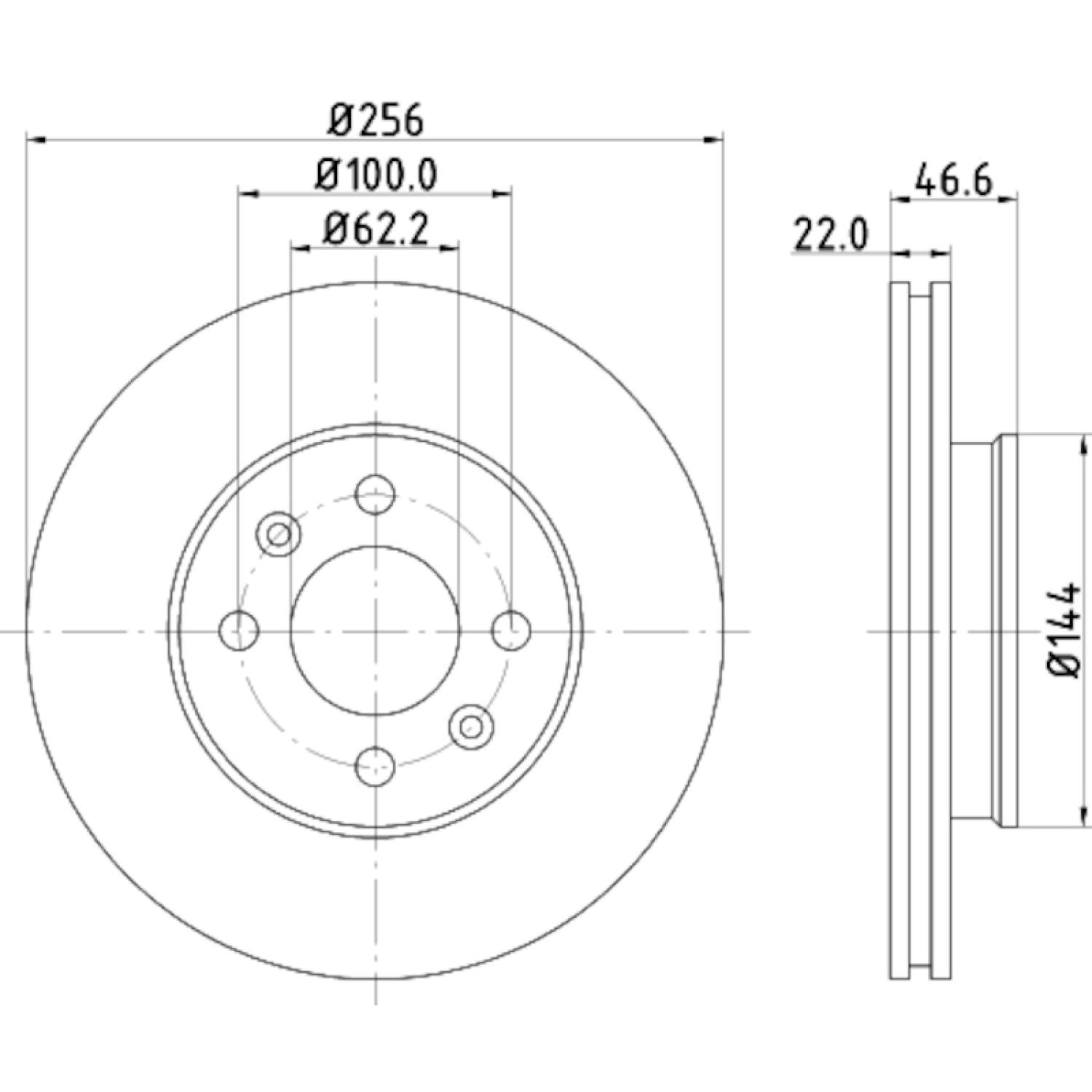

Outer diameter [mm] | 256 |
Brake Disc Thickness [mm] | 22 |
Outer Diameter [in] | 10.08 |
Brake Disc Type | Internally Vented |
Brake Disc Thickness [in] | 0.87 |
Minimum thickness [mm] | 20 |
Height [mm] | 46.6 |
Center Hole Diameter | 114.3 |
Minimum thickness [in] | 0.79 |
Hole Arrangement/Number | 04/06 |
Inner diameter [mm] | 126 |
Bolt Hole Circle Ø [mm] | 100 |
Inner Diameter [in] | 4.96 |
Centering Diameter [mm] | 62.2 |
Bolt Hole Circle Ø [in] | 3.94 |
Weight [kg] | 5.2 |
Supplementary Article/Info 2 | without wheel hub |
Hole Arrangement/Number | 04/06 |
Supplementary Article/Info 2 | without wheel studs |
Wheel Bolt Bore Ø [mm] | 12.5 |
Inside Diameter | 62.2 |
Surface | Coated |
Technical Information Number | 54647PRO |
Assy/Disassy by Qualified Personnel Required! | . |
UPC | 04082300509205 |
Origin Country: | CN |
Weight: | 12.08Lb. (5.49 kg.) |
Package Dimensions: | 13" x 12.4" x 4.3" (33 cm x 31.5 cm x 11 cm) |
1 Year Warranty
