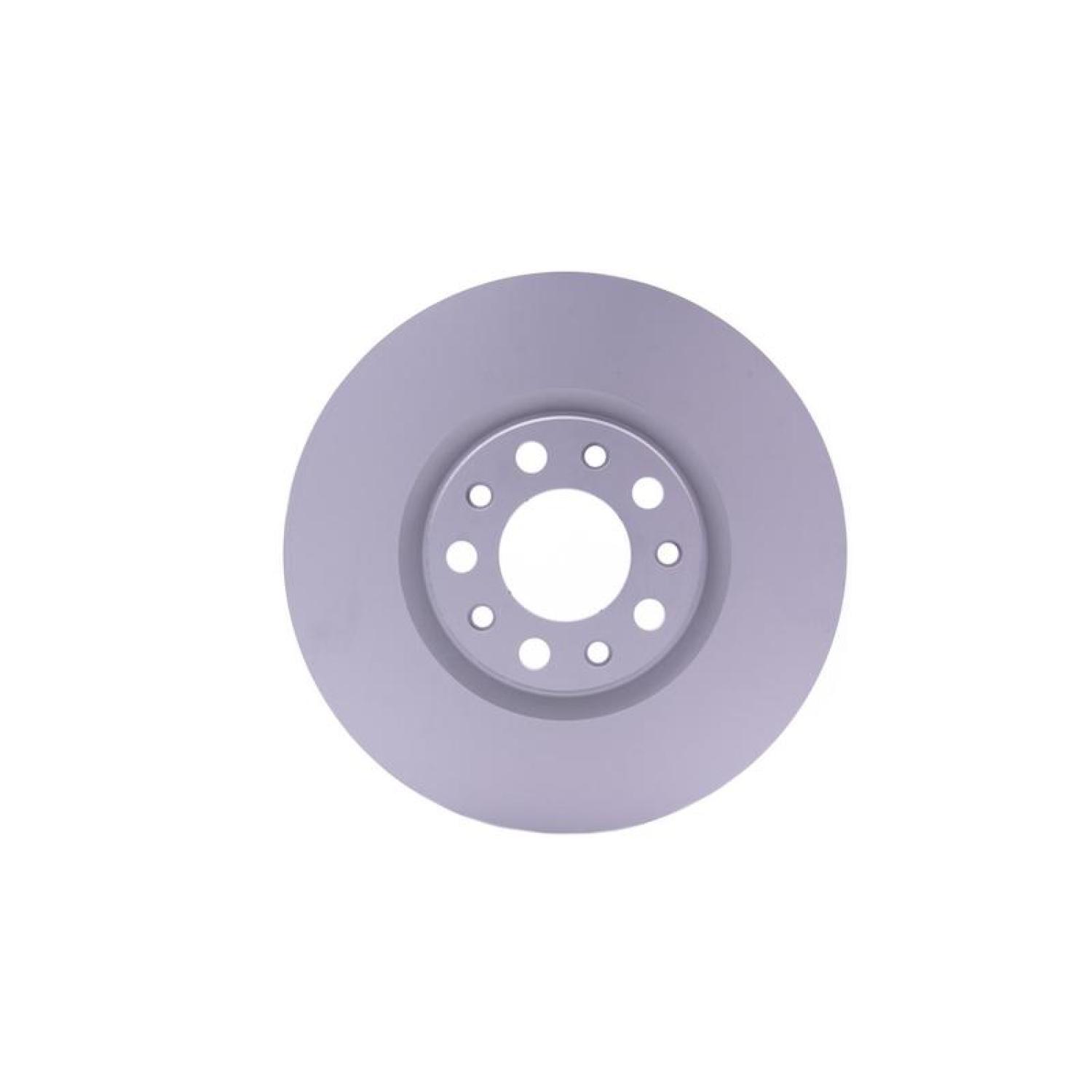

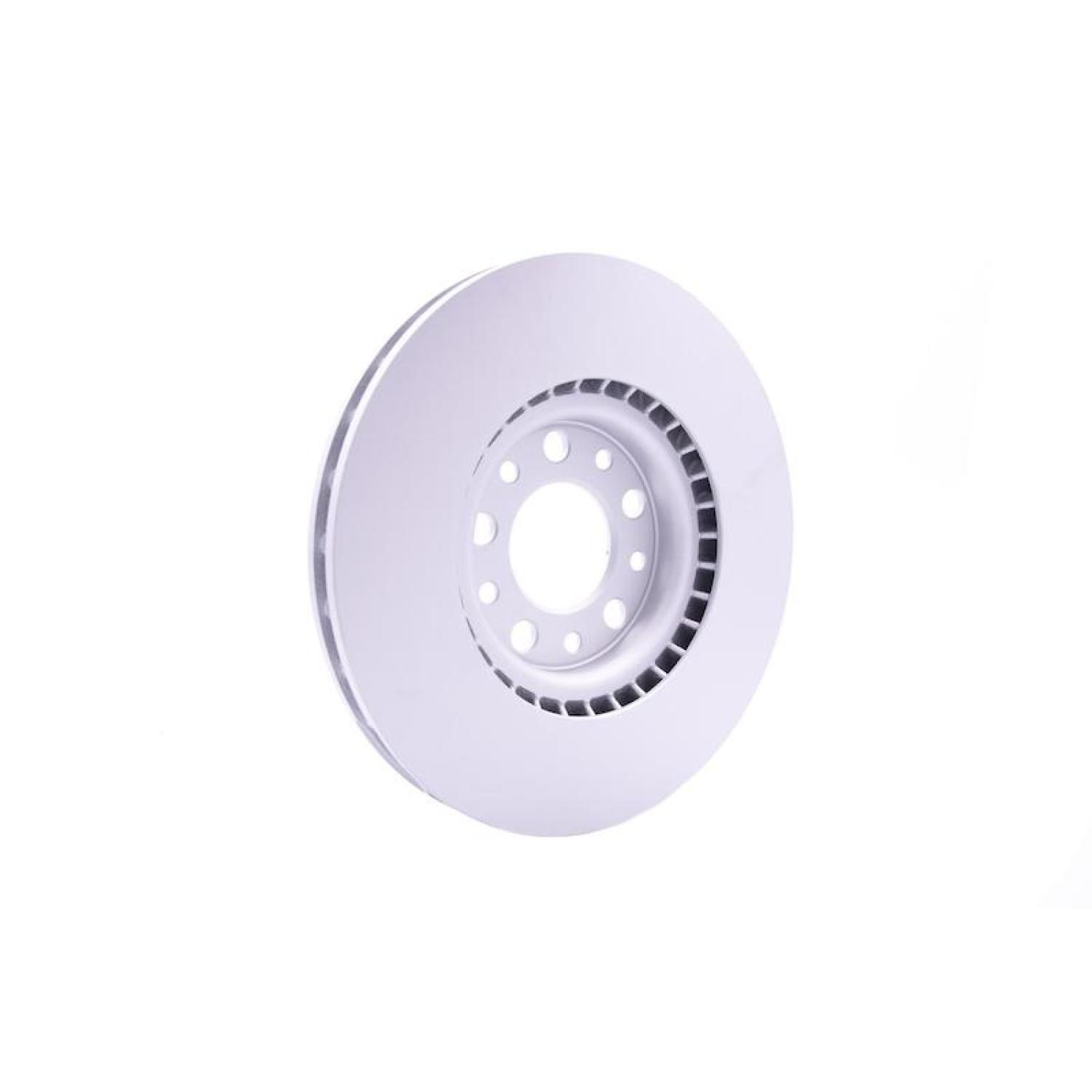

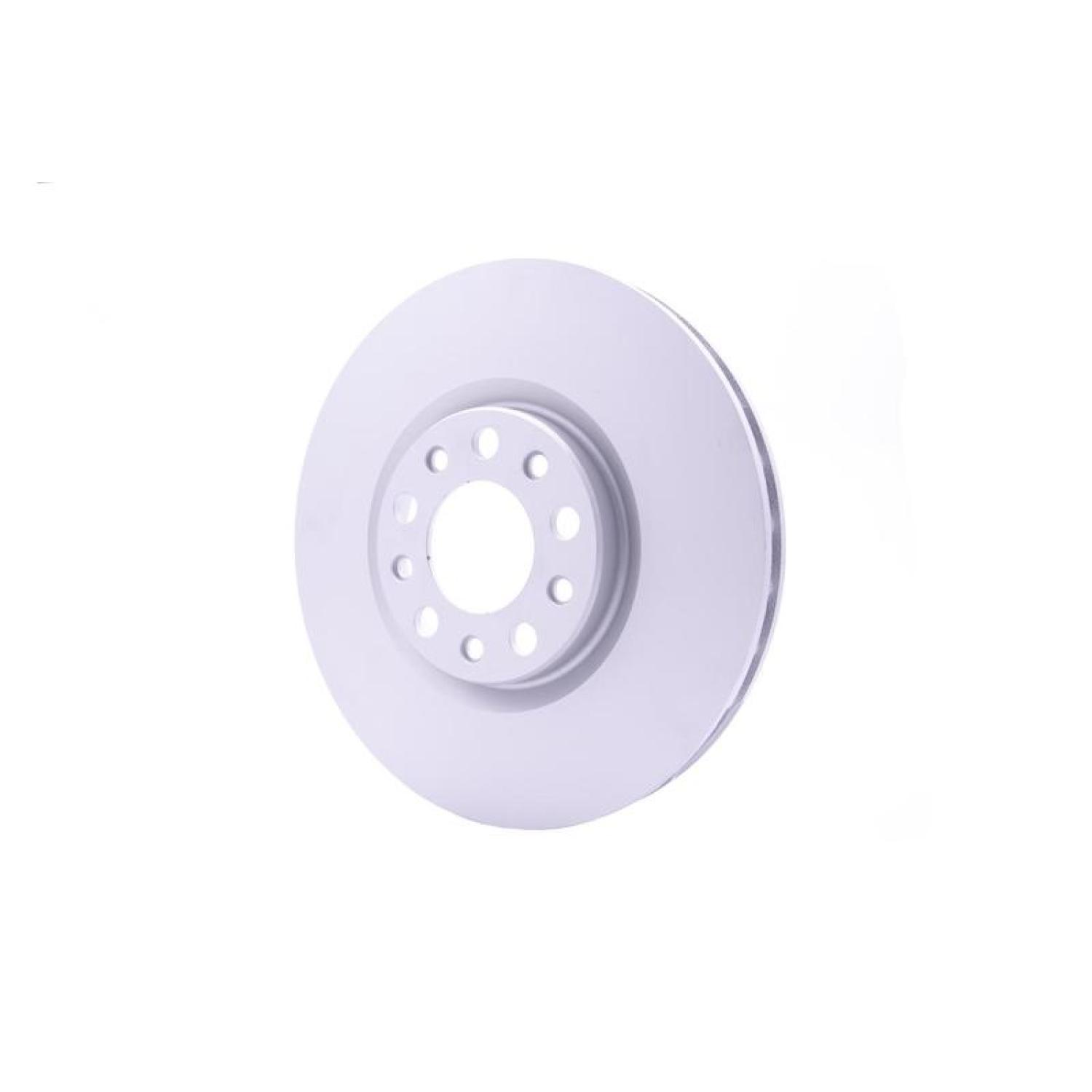

Hella Pagid 355116631 Disc Brake Rotor in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Full range is 100% fully coated with premium zinc rust protection
Full range is 100% high carbon (GG15 & GG20)
Manufactured according to European OE specifications (AM1 & AM2)
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Brake Disc Type	Internally Vented
Outer diameter [mm]	305
Outer Diameter [in]	12.01
Brake Disc Thickness [mm]	28
Brake Disc Thickness [in]	1.10
Height [mm]	39.7
Minimum thickness [mm]	26
Minimum thickness [in]	1.02
Surface	Coated
Inner diameter [mm]	138
Inner Diameter [in]	5.43
Bolt Hole Circle Ã˜ [mm]	110
Bolt Hole Circle Ã˜ [in]	4.33
Centering Diameter [mm]	70
Centering Diameter [in]	2.76
Hole Arrangement/Number	05/10
Wheel Bolt Bore Ã˜ [mm]	16.6
Supplementary Article/Info 2	without wheel hub
Supplementary Article/Info 2	without wheel bearing
Supplementary Article/Info 2	without wheel studs
Weight [kg]	7.6
Assy/Disassy by Qualified Personnel Required!	.
Origin Country:	CN

1 Year Warranty
