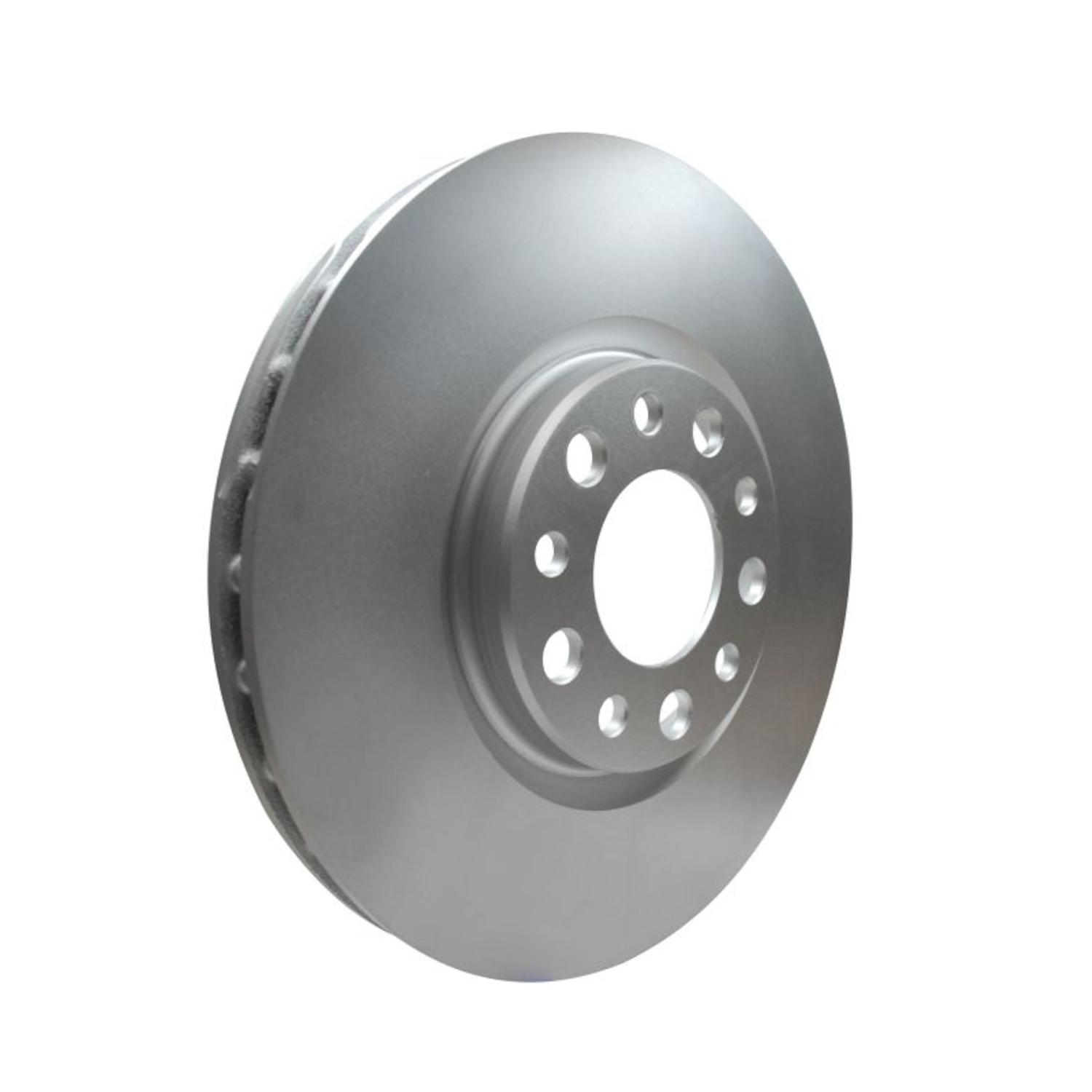

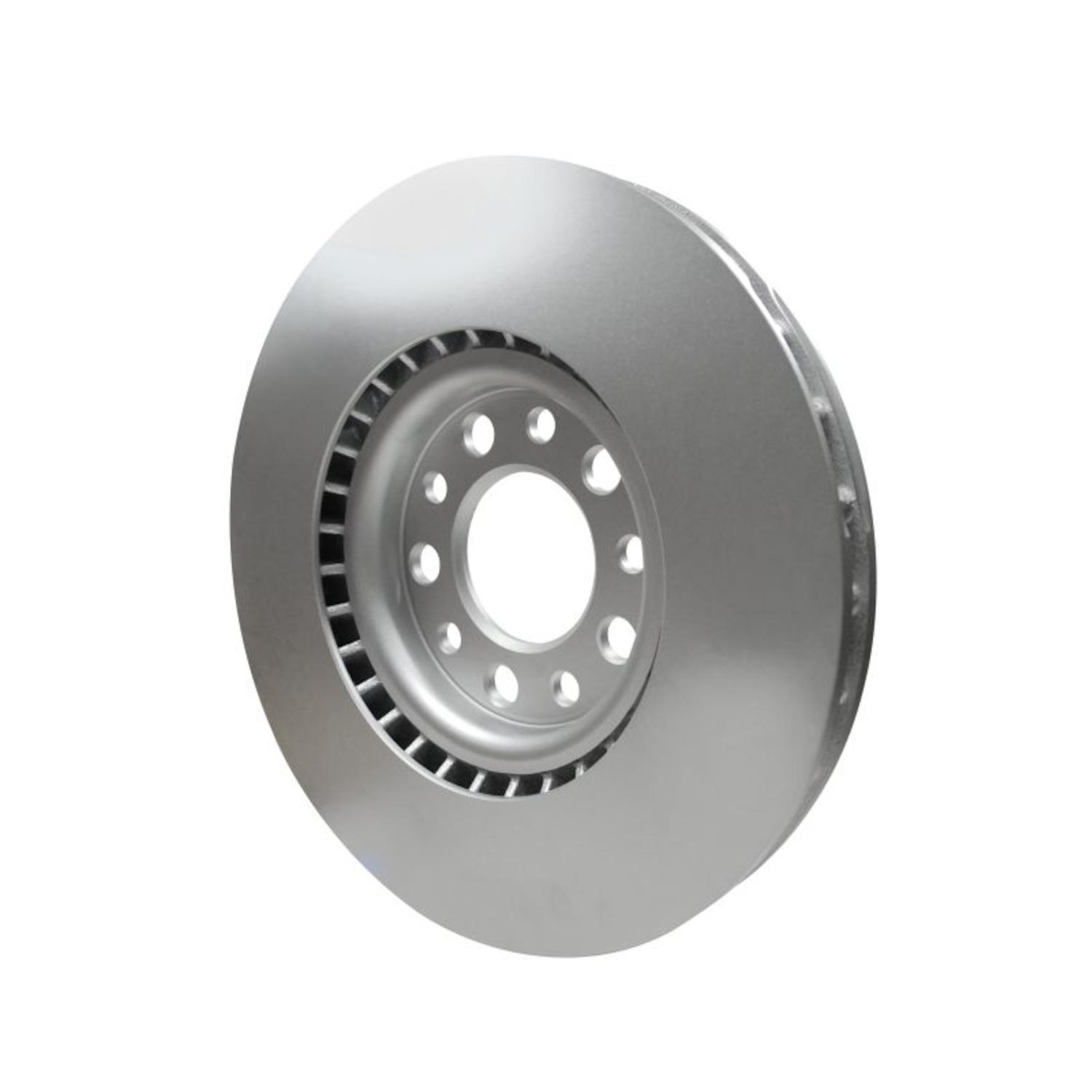

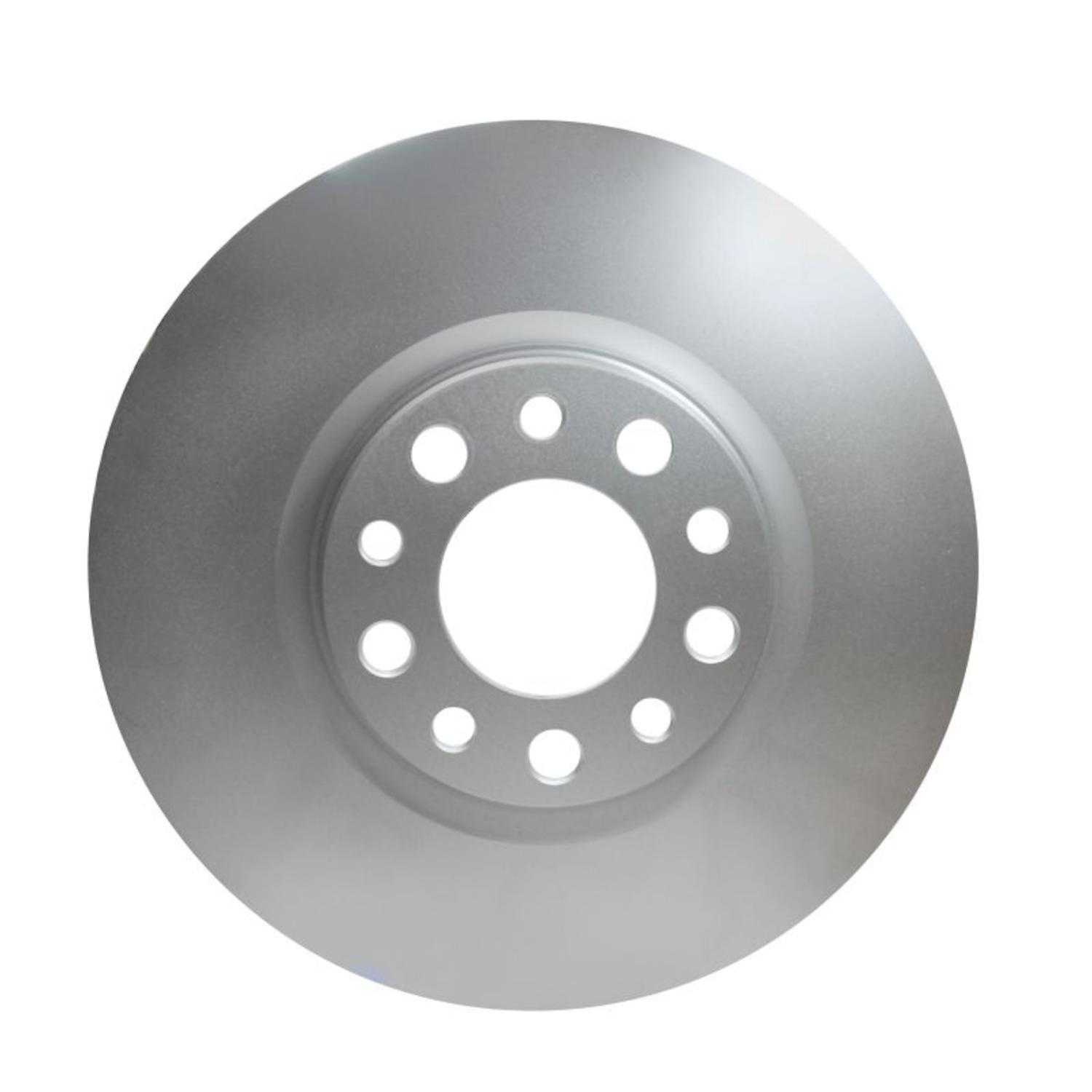

Hella Pagid 355112511 Disc Brake Rotor







DISC BRAKE ROTOR
$134.06 CAD
Out of Stock
Brand: Hella Pagid
Stock #: 355112511
Condition: New
UPC: 04082300377170
Weight: 17.41 lb.(7.92 kg.)
Dimensions: 13.2" x 12.6" x 3.7" (33.5 cm x 32 cm x 9.5 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- Jeep 68462619AA
- Valeo 197041
- Valeo 197247
- Valeo 672502
- Mintex MDC1739
- Fiat 51912591
- Fiat 68462619AA
- Bosch 0 986 479 293
- Bosch F026A06810
- TRW DF4476
- Ferrari 519 1259 1
- Pagid 54450
- Bendix 562299B
- Bendix 562299BC
- Bendix 521920
- Alfa Romeo 468 4360 8
- Alfa Romeo 517 6062 1
- Alfa Romeo 51912591
- Brembo 09936310
- Brembo 09936311
- Brembo 09936314
- Delphi BG3951
- Hella Pagid 54450PRO
- Hella Pagid 8DD355112511
- Magneti Marelli 360406011100
- Magneti Marelli 361302040146
- TRW Steering and Suspension Parts DF4476
- Wagner WGR14491
- EBC Brakes USR1349
- EBC Brakes USR1762
- EBC Brakes D1349
- EBC Brakes GD1349
- EBC Brakes D1762
- EBC Brakes GD1762
- Optimal BS7512
- Optimal BS7512C
- Werner Metzger GmbH 24993
- Girling 6044761
- FTE BS7082B
- FTE 9071245
- FTE BS7082
- FREMAX BRAKE ROTORS AND DRUMS BD3608
- Pagid 54450PRO
- Borg & Beck BBD4513
- Febi-Bilstein 44036
- Febi-Bilstein 43893
- Ferodo DDF2339PD
- Ferodo DDF1449
- Ferodo DDF14491
- Dynamic Friction Company 63339025R
- Dynamic Friction Company 63139025R
- Dynamic Friction Company 63142037R
- Dynamic Friction Company 63342037R
- Dynamic Friction Company 82039025R
- Dynamic Friction Company 81039025R
- Dynamic Friction Company 83039025R
- DON PCD11992
- SBS 1815311022
- SBS 1815201022
- Roadhouse 696410
- Remsa 696410
- Zimmermann 92145003
- Zimmermann 110221275
- Zimmermann 110221252
- Zimmermann 110221270
- Zimmermann 110221200
- Zimmermann 230231552
- Zimmermann 110221220
- Zimmermann 110221272
- Zimmermann 230231520
- Textar 98200145001
- Textar 92145000
- Textar 92145003
- NAPA PBD8153
- Akebono BN0746
- Akebono BN0746E
- ATE 24012801921
- ATE 428192
- Japan Parts DI0207
- Japan Parts DI0207C
- TRW Steering and Suspension Parts DF4476S
- Brake Engineering DI956461
- Brembo 59E11532
- NK Autoparts 311022
- NK Autoparts 201022
- LPR A2002V
- LPR A2002VR
- Jurid 562299JC1
- Jurid 562299J
- Jurid 562299JC
- Jurid 563036JC
- Fixing screws are always included if required
- Full range is 100% fully coated with premium zinc rust protection
- Full range is 100% high carbon (GG15 & GG20)
- Higher driving comfort with reduced machining tolerances
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- Manufactured according to European OE specifications (AM1 & AM2)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Reduced braking noise
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Outer diameter [mm] | 305 |
Brake Disc Thickness [mm] | 28 |
Outer Diameter [in] | 12.01 |
Brake Disc Type | Internally Vented |
Brake Disc Thickness [in] | 1.10 |
Minimum thickness [mm] | 26 |
Height [mm] | 39.7 |
Minimum thickness [in] | 1.02 |
Hole Arrangement/Number | 05/10 |
Inner diameter [mm] | 138 |
Bolt Hole Circle Ø [mm] | 110 |
Inner Diameter [in] | 5.43 |
Centering Diameter [mm] | 70 |
Bolt Hole Circle Ø [in] | 4.33 |
Weight [kg] | 7.7 |
Centering Diameter [in] | 2.76 |
Supplementary Article/Info 2 | without wheel hub |
Hole Arrangement/Number | 05/10 |
Supplementary Article/Info 2 | without wheel studs |
Wheel Bolt Bore Ø [mm] | 16.6 |
Surface | Coated |
Technical Information Number | 54450PRO |
Assy/Disassy by Qualified Personnel Required! | . |
UPC | 04082300377170 |
Origin Country: | CN |
Weight: | 17.41Lb. (7.92 kg.) |
Package Dimensions: | 13.2" x 12.6" x 3.7" (33.5 cm x 32 cm x 9.5 cm) |
1 Year Warranty
