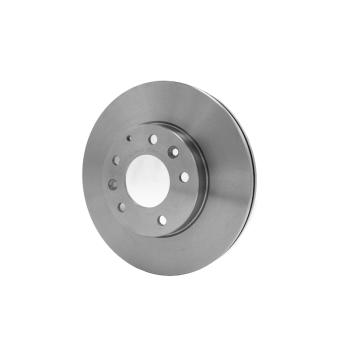

Hella Pagid 355108161 Disc Brake Rotor


DISC BRAKE ROTOR
$117.62 CAD
Out of Stock
Brand: Hella Pagid
Stock #: 355108161
Condition: New
UPC: 04082300372823
Weight: 14.7 lb.(6.69 kg.)
Dimensions: 12" x 12" x 4.8" (30.6 cm x 30.6 cm x 12.3 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- Mazda GF3Y3325XA
- TRW DF4328
- Bendix 562446B
- Bendix 521850
- TRW Steering and Suspension Parts DF4328
- Brembo 09958510
- Brembo 09958511
- Brembo 09958514
- Delphi BG3724
- Valeo 197264
- Valeo 297264
- Mintex MDC1543
- Mazda G25Y3325XA
- Mazda GF3Y3325X
- Mazda G25Y-33-5XA
- Bosch 0 986 479 034
- Bosch 0986AB6840
- Bosch 0986T15130
- Bosch 0986T16840
- Bosch F 026 A01 143
- Hella Pagid 8DD355108161
- Hella Pagid 50353
- Magneti Marelli 360406030600
- Magneti Marelli 600000088100
- EBC Brakes D1191
- EBC Brakes USR1191
- EBC Brakes GD1191
- Optimal BS7754C
- Optimal BS7754
- Hi-Q SD4434
- AMC FO4022
- Mintex MDC81543C
- Werner Metzger GmbH 24935 E
- VAICO V3280008
- Girling 6043281
- FTE BS5258B
- FTE 9072300
- FTE BS5258
- FREMAX BRAKE ROTORS AND DRUMS BD3267
- Borg & Beck BBD4351
- Pagid 50353
- Febi-Bilstein 108454
- Ferodo DDF1278
- Ferodo DDF1278C
- Ferodo DDF1278CD
- Ferodo DDF1278X
- Ferodo DDF12781
- Delphi BG3724C18B1
- DON PCD14332
- HERTH+BUSS J3303070
- SBS 1815203241
- SBS 1815313241
- Roadhouse 676710
- Remsa 676710
- Cifam 800901C
- Zimmermann 370307270
- Zimmermann 370307275
- Zimmermann 370307272
- Zimmermann 370307252
- Zimmermann 370307200
- Zimmermann 370307220
- Textar 98200110401
- Textar 92110403
- Textar 92110400
- Ashuki M61605
- Mapco 25526C
- NAPA PBD8642
- Akebono BN0366E
- Akebono BN0366
- ATE 24012401751
- ATE 424175
- Japan Parts DI310C
- Japan Parts DI310
- Brake Engineering DI956138
- NK Autoparts 313241
- NK Autoparts 203241
- LPR M5000V
- Meyle 35155210026
- Jurid 562446J1
- Jurid 562446JC
- Jurid 562446J
- ADVICS E6F222B
- Fixing screws are always included if required
- Full range is 100% fully coated with premium zinc rust protection
- Full range is 100% high carbon (GG15 & GG20)
- Higher driving comfort with reduced machining tolerances
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- Manufactured according to European OE specifications (AM1 & AM2)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Reduced braking noise
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Outer diameter [mm] | 274 |
Brake Disc Thickness [mm] | 24 |
Outer Diameter [in] | 10.79 |
Brake Disc Type | Internally Vented |
Brake Disc Thickness [in] | 0.94 |
Minimum thickness [mm] | 22 |
Height [mm] | 47.4 |
Minimum thickness [in] | 0.87 |
Inner diameter [mm] | 142.9 |
Hole Arrangement/Number | 05/08 |
Bolt Hole Circle Ø [mm] | 114.3 |
Centering Diameter [mm] | 72 |
Centering Diameter [in] | 2.83 |
Weight [kg] | 6.5 |
Hole Arrangement/Number | 05/08 |
Supplementary Article/Info 2 | without wheel hub |
Wheel Bolt Bore Ø [mm] | 13.1 |
Supplementary Article/Info 2 | without wheel studs |
Technical Information Number | 50353 |
Assy/Disassy by Qualified Personnel Required! | . |
UPC | 04082300372823 |
Origin Country: | CN |
Weight: | 14.7Lb. (6.69 kg.) |
Package Dimensions: | 12" x 12" x 4.8" (30.6 cm x 30.6 cm x 12.3 cm) |
1 Year Warranty
